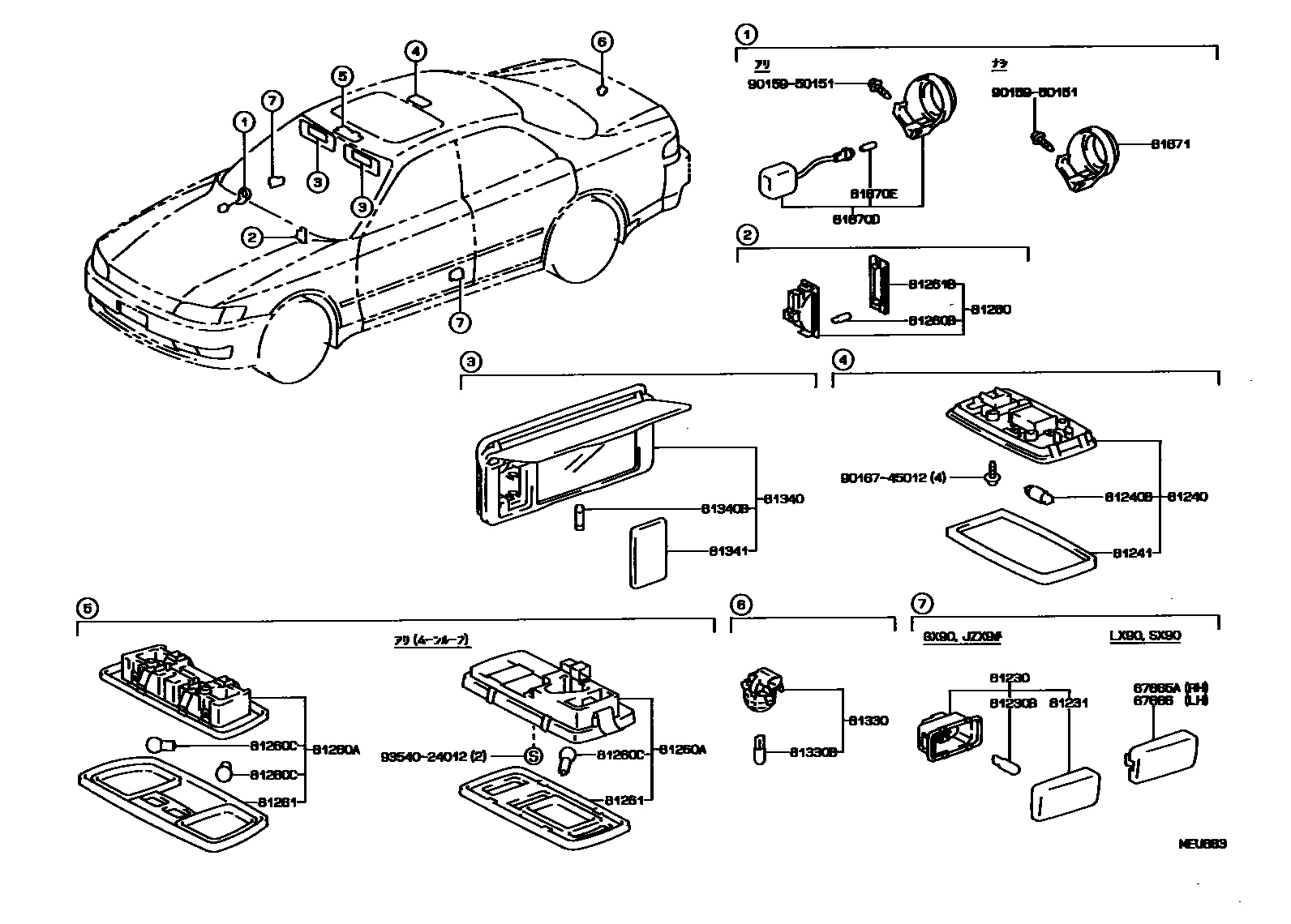

INTERIOR LAMP

67665AREFLECTOR, FRONT DOOR TRIM, RH

main67665-22010iLX90,SX90199210-199609

67666REFLECTOR, FRONT DOOR TRIM, LH

main67666-22010iLX90,SX90199210-199609

81230LAMP ASSY, COURTESY

main81230-22010iGX90,JZX9#199210-199609

main81310-22010iGX90,JZX9#199210-199609

81230BBULB(FOR COURTESY LAMP)

main90981-11020×2iGX90,JZX9#199210-199609

81231LENS, COURTESY LAMP

main81231-22010iGX90,JZX9#199210-199609

main81311-22010iGX90,JZX9#199210-199609

81240LAMP ASSY, ROOM, NO.1

main81240-22120-A0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199210-199609

IVORY,TRIM4#

main81240-22120-G0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199609

LT.SPRUCE,TRIM6#

main81240-22120-J0iGX90,JZX90,91,LX90,SX90199210-199409

GRAYISH BLUE,TRIM8#

81240BBULB, ROOM LAMP, NO.1

main90981-14004iGX90,JZX9#,LX90,SX90199210-199609

81241LENS, ROOM LAMP, NO.1

main81241-32031iGX90,JZX9#,LX90,SX90199210-199609

81260LAMP ASSY, GLOVE BOX

main81260-50010iGX90,JZX9#,LX90,SX90199210-199609

81260ALAMP ASSY, MAP

main81260-22140-A0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199210-199505

IVORY,TRIM4#

main81260-22140-G0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199505

LT.SPRUCE,TRIM6#

main81260-22140-J0iGX90,JZX90,91,LX90,SX90199210-199409

GRAYISH BLUE,TRIM8#

main81260-22141-A0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199505-199609

IVORY,TRIM4#

main81260-22141-G0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199505-199609

SPRUCE,TRIM6#

main81260-22141-J0iJZX90..TOUS,TOUV199505-199609

LT.BLUE,TRIM8#

main81260-32090-A1iJZX9#..AVTG199210-199310

main81260-32090-G0iGX90,JZX9#199310-199609

main81260-32090-J0iJZX9#..AVTG,TOUS,TOUV199210-199310

81260BBULB(FOR GLOVE BOX)

main90981-11018iGX90,JZX9#,LX90,SX90199210-199609

81260CBULB(FOR MAP LAMP)

main90981-12014iJZX9#..AVTG,TOUS,TOUV199210-199310

main90981-12020×2iGX90,JZX9#,LX90,SX90199210-199609

81261LENS AND COVER, MAP LAMP

main81261-32081-A1iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199210-199609

IVORY,TRIM4#

main81261-32081-G0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199609

LT.SPRUCE,TRIM6#

main81261-32081-J1iGX90,JZX90,91,LX90,SX90199210-199409

GRAYISH BLUE,TRIM8#

main81261-32090-A0iGX90,JZX9#..AVT,AVTG199310-199609

main81261-32090-G0iGX90; JZX9#199310-199409

main81261-32090-J0iJZX9#..AVTG,TOUS,TOUV199210-199310

81261BLENS,GLOVE BOX LAMP

main81261-50010iGX90,JZX9#,LX90,SX90199210-199609

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-30090iGX90,JZX9#,LX90,SX90199210-199609

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iGX90,JZX9#,LX90,SX90199210-199609

81340LAMP ASSY, VANITY

main81340-24030-A0iGX90,JZX9#..AVT,AVTG199310-199609

main81340-24030-G0iGX90..ATM199304-199309

main81340-24030-J1iJZX90..TOUS,TOUV199409-199609

main81350-24010-A0iGX90..ATM199304-199309

main81350-24010-G0iGX90..ATM199304-199309

main81350-24010-J1iJZX9#199210-199310

81340BBULB (FOR VANITY LAMP)

main90981-14007×2iJZX9#199210-199310

81341LENS, VANITY LAMP

main81341-50010iJZX93..AVT; JZX93..AVTG;GX90,JZX90,91199310-199409

81870DLAMP ASSY, KEY CYLINDER

main81870-22050iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199609

81870EBULB, KEY CYLINDER LAMP

main90981-11014iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199609

81871LENS, KEY ILLUMINATION

main81871-22020iLX90,SX90..XL199210-199609

9015950151

main90159-50151

9016745012

main90167-45012

9354024012

main93540-24012

25 parts on this diagram · 1 diagram in section
