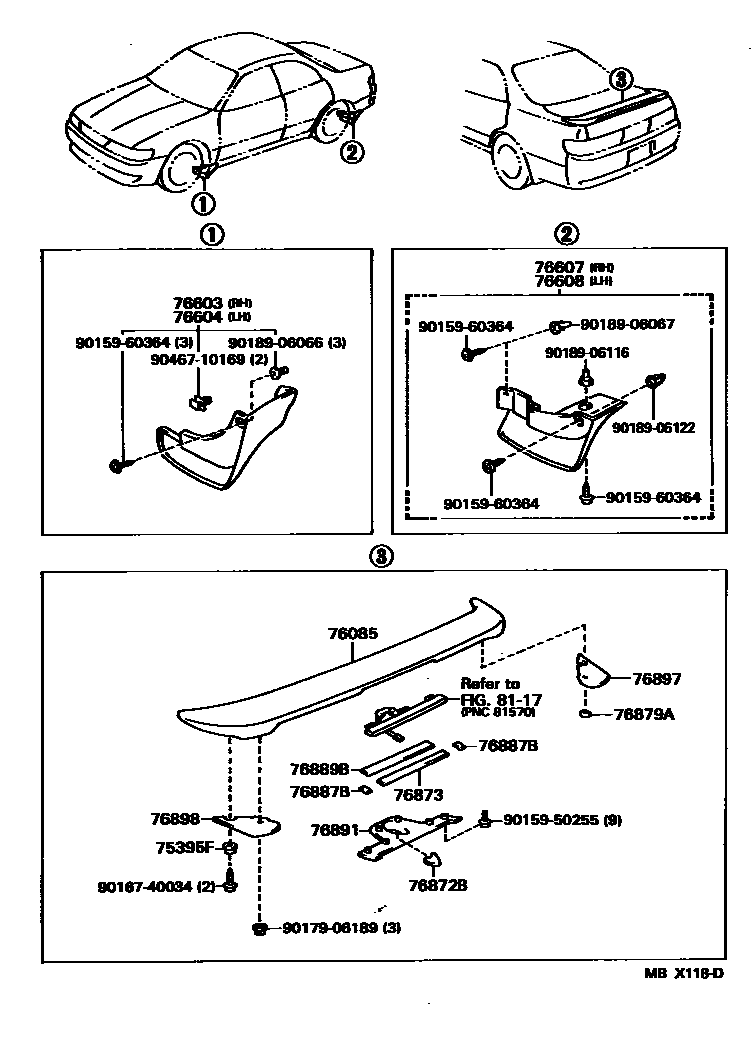

MUDGUARD & SPOILER

75395FCLIP, OUTSIDE MOULDING, NO.1

main75395-12090iJZX90..TOUS,TOUV199210-199609

76085SPOILER SUB-ASSY, REAR

main76871-22900iJZX90..TOUS,TOUV199210-199609

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76603-29285iGX90,JZX9#,LX90,SX90199210-199609

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76604-29285iGX90,JZX9#,LX90,SX90199210-199609

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-29165iGX90,JZX9#,LX90,SX90199210-199609

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-29165iGX90,JZX9#,LX90,SX90199210-199609

76872BPROTECTOR, REAR SPOILER, CENTER

main76872-22030iJZX90..TOUS,TOUV199210-199609

76873PROTECTOR, REAR SPOILER, NO.2

main76873-32020iJZX90..TOUS,TOUV199210-199609

76879ASPACER, REAR SPOILER

main76879-22010iJZX90..TOUS,TOUV199210-199609

76887BPROTECTOR, REAR SPOILER SIDE, NO.2

main76887-32010iJZX90..TOUS,TOUV199210-199609

76889BSEAL, REAR SPOILER, NO.1

main76889-22010iJZX90..TOUS,TOUV199210-199609

76891SPOILER, REAR NO.1

main76891-22900iJZX90..TOUS,TOUV199210-199609

76897PROTECTOR, REAR SPOILER, SIDE RH

main76897-22030iJZX90..TOUS,TOUV199210-199609

76898PROTECTOR, REAR SPOILER, SIDE LH

main76898-22030iJZX90..TOUS,TOUV199210-199609

8117CENTER STOP LAMP

→ Go to FIG 81-17

9015950255

main90159-50255

9015960364

main90159-60364

9016740034

main90167-40034

9017906189

main90179-06189

9018906066

main90189-06066

9018906067

main90189-06067

9018906116

main90189-06116

9018906122

main90189-06122

9046710169

main90467-10169

24 parts on this diagram · 1 diagram in section
