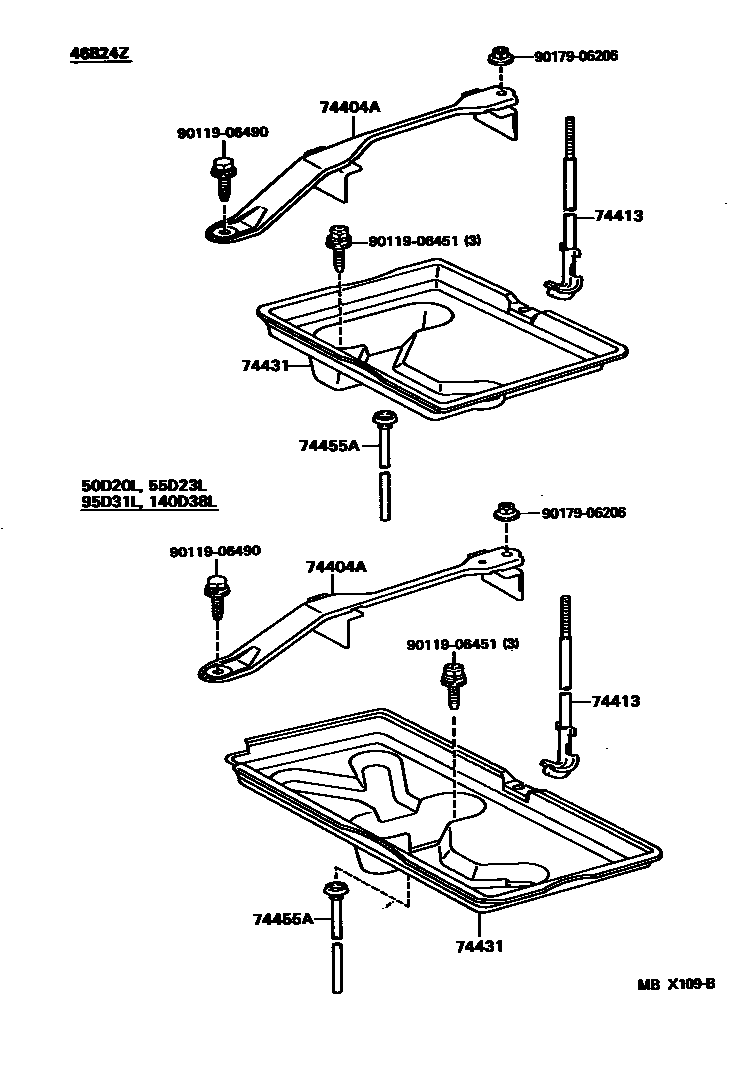

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-22330iGX90,JZX93;JZX90..TOUV; JZX90..AVT,TOUS; JZX90..AVTG199509-199609

main74404-22340iGX90199210-199409

main74404-22350iLX90199210-199609

74413BOLT, BATTERY CLAMP

main74407-22060iGX90,JZX9#,SX90199210-199609

main74407-22070iLX90199210-199609

74431TRAY, BATTERY

main74431-22120iGX90,JZX93;JZX90..TOUV; JZX90..AVT,TOUS; JZX90..AVTG199509-199609

main74431-22130iLX90199210-199609

main74431-22140iGX90199210-199409

74455AHOSE, BATTERY DRAIN

main74455-30020iGX90,JZX9#,LX90,SX90199210-199609

9011906451

main90119-06451

9011906490

main90119-06490

9017906206

main90179-06206

7 parts on this diagram · 1 diagram in section
