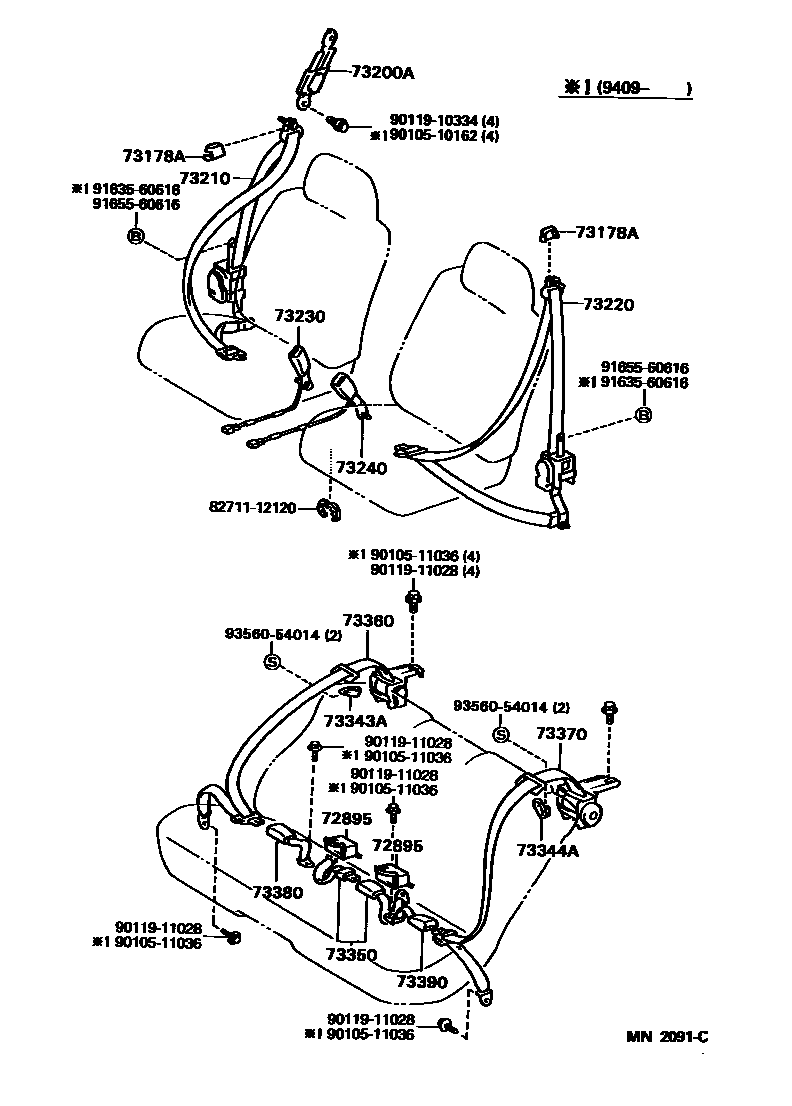

SEAT BELT & CHILD RESTRAINT SEAT

72895CASE, REAR SEAT BELT

main72895-22020-E0×2iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199210-199609

SABLE,TRIM4#

main72895-22020-G0×2iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199609

JADE,TRIM6#

main72895-22020-J0×2iGX90,JZX90,91,LX90,SX90199210-199409

GRAYISH BLUE,TRIM8#

73178ACAP, SEAT BELT ANCHOR COVER

main73178-12030-A0×2iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199210-199603

IVORY,TRIM4#

main73178-12030-G1×2iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199603

LI. SPRUCE,TRIM6#

main73178-12030-J0×2iGX90,JZX90,91,LX90,SX90199210-199409

LI. BLUE,TRIM8#

main73178-12040-A0×2iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199603-199609

IVORY,TRIM4#

main73178-12040-G1×2iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199603-199609

SPRUCE,TRIM6#

main73178-12040-J0×2iJZX90..TOUS,TOUV199603-199609

LT.BLUE,TRIM8#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-22070-A0×2iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199210-199609

IVORY,TRIM4#

main73200-22070-G0×2iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199609

LI. SPRUCE,TRIM6#

main73200-22070-J0×2iGX90,JZX90,91,LX90,SX90199210-199409

LI. BLUE,TRIM8#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-22470-E0iLX90,SX90199210-199409

BEIGE,TRIM4#

main73210-22470-G0iLX90,SX90..RAF199210-199409

JADE,TRIM6#

main73210-22470-J0iLX90,SX90199210-199409

GRAYISH BLUE,TRIM8#

main73210-22480-E0iGX90,JZX9#..AVT,AVTG199210-199409

BEIGE,TRIM4#

main73210-22480-G0iGX90,JZX9#199210-199409

JADE,TRIM6#

main73210-22480-J0iGX90,JZX90,91199210-199409

GRAYISH BLUE,TRIM8#

main73210-22510-E0iLX90,SX90199409-199603

SABLE,TRIM4#

main73210-22510-G0iLX90,SX90..RAF199409-199603

JADE,TRIM6#

main73210-22511-E0iLX90,SX90199603-199609

SABLE,TRIM4#

main73210-22511-G0iLX90,SX90..RAF199603-199609

JADE,TRIM6#

main73210-22520-E0iGX90,JZX9#..AVT,AVTG199409-199603

SABLE,TRIM4#

main73210-22520-G0iLX90..RAF199412-199603

main73210-22520-J0iJZX90..TOUS,TOUV199409-199603

GRAYISH BLUE,TRIM8#

main73210-22521-E0iGX90,JZX9#..AVT,AVTG199603-199609

SABLE,TRIM4#

main73210-22521-G0iGX90,JZX9#; LX90..RAF199603-199609

main73210-22521-J0iJZX90..TOUS,TOUV199603-199609

GRAYISH BLUE,TRIM8#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-22310-E0iLX90,SX90199210-199409

BEIGE,TRIM4#

main73220-22310-G0iLX90,SX90..RAF199210-199409

JADE,TRIM6#

main73220-22310-J0iLX90,SX90199210-199409

GRAYISH BLUE,TRIM8#

main73220-22320-E0iGX90,JZX9#..AVT,AVTG199210-199409

BEIGE,TRIM4#

main73220-22320-G0iGX90,JZX9#199210-199409

JADE,TRIM6#

main73220-22320-J0iGX90,JZX90,91199210-199409

GRAYISH BLUE,TRIM8#

main73220-22350-E0iLX90,SX90199409-199603

SABLE,TRIM4#

main73220-22350-G0iLX90,SX90..RAF199409-199603

JADE,TRIM6#

main73220-22351-E0iLX90,SX90199603-199609

SABLE,TRIM4#

main73220-22351-G0iLX90,SX90..RAF199603-199609

JADE,TRIM6#

main73220-22360-E0iGX90,JZX9#..AVT,AVTG199409-199603

SABLE,TRIM4#

main73220-22360-G0iLX90..RAF199412-199603

main73220-22360-J0iJZX90..TOUS,TOUV199409-199603

GRAYISH BLUE,TRIM8#

main73220-22361-E0iGX90,JZX9#..AVT,AVTG199603-199609

SABLE,TRIM4#

main73220-22361-G0iGX90,JZX9#; LX90..RAF199603-199609

main73220-22361-J0iJZX90..TOUS,TOUV199603-199609

GRAYISH BLUE,TRIM8#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-22330-E0iGX90,JZX93,LX90,SX90..AVT,RAF,XL199210-199609

SABLE,TRIM4#

main73230-22330-G0iJZX90..TOUS,TOUV;GX90,JZX93,LX90,SX90..AVT,RAF199210-199609

JADE,TRIM6#

main73230-22330-J0iGX90,LX90,SX90;JZX90..TOUS,TOUV199210-199409

GRAYISH BLUE,TRIM8#

main73230-22340-E0iJZX93..AVTG;JZX90,91..AVT,AVTG199210-199609

SABLE,TRIM4#

main73230-22340-G0iJZX93..AVTG;JZX90,91..AVT,AVTG199210-199609

JADE,TRIM6#

main73230-22340-J0iJZX90,91..AVT,AVTG199210-199409

GRAYISH BLUE,TRIM8#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-22350-E0iLX90,SX90199210-199609

SABLE,TRIM4#

main73230-22350-G0iLX90,SX90..RAF199210-199609

JADE,TRIM6#

main73230-22350-J0iLX90,SX90199210-199409

GRAYISH BLUE,TRIM8#

main73240-22111-E0iJZX90..AVTG; JZX91199210-199409

main73240-22111-G0iJZX90..AVTG; JZX91199210-199409

main73240-22111-J0iJZX90..AVTG; JZX91199210-199409

main73240-22120-E0iGX90,JZX9#..AVT,AVTG199210-199308

SABLE,TRIM4#

main73240-22120-G0iGX90,JZX9#199210-199308

JADE,TRIM6#

main73240-22120-J0iGX90,JZX9#199210-199308

GRAYISH BLUE,TRIM8#

main73240-22121-E0iGX90,JZX9#..AVT,AVTG199308-199609

SABLE,TRIM4#

main73240-22121-G0iLX90..RAF199412-199609

main73240-22121-J0iGX90,JZX90,91199308-199409

GRAYISH BLUE,TRIM8#

73343AGUIDE, REAR SEAT SHOULDER BELT, RH

main73343-22020-E0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199210-199609

SABLE,TRIM4#

main73343-22020-G0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199609

JADE,TRIM6#

main73343-22020-J0iGX90,JZX90,91,LX90,SX90199210-199409

GRAYISH BLUE,TRIM8#

73344AGUIDE, REAR SEAT SHOULDER BELT, LH

main73344-22010-E0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199210-199609

SABLE,TRIM4#

main73344-22010-G0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199609

JADE,TRIM6#

main73344-22010-J0iGX90,JZX90,91,LX90,SX90199210-199409

GRAYISH BLUE,TRIM8#

73350BELT ASSY, REAR SEAT LAP TYPE, CENTER

main73350-22150-E0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199210-199409

BEIGE,TRIM4#

main73350-22150-G0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199409

JADE,TRIM6#

main73350-22150-J0iGX90,JZX90,91,LX90,SX90199210-199409

GRAYISH BLUE,TRIM8#

main73350-22170-E0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199409-199609

SABLE,TRIM4#

main73350-22170-G0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199409-199609

JADE,TRIM6#

main73350-22170-J0iJZX90..TOUS,TOUV199409-199609

GRAYISH BLUE,TRIM8#

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-22300-E0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199210-199409

BEIGE,TRIM4#

main73360-22300-E1iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199409-199609

SABLE,TRIM4#

main73360-22300-G0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199409

JADE,TRIM6#

main73360-22300-G1iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199409-199609

JADE,TRIM6#

main73360-22300-J0iGX90,JZX90,91,LX90,SX90199210-199409

GRAYISH BLUE,TRIM8#

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73360-22300-E0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199210-199409

BEIGE,TRIM4#

main73360-22300-E1iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199409-199609

SABLE,TRIM4#

main73360-22300-G0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199409

JADE,TRIM6#

main73360-22300-G1iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199409-199609

JADE,TRIM6#

main73360-22300-J0iGX90,JZX90,91,LX90,SX90199210-199409

GRAYISH BLUE,TRIM8#

73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH

main73380-22200-E0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199210-199409

BEIGE,TRIM4#

main73380-22200-E1iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199409-199609

SABLE,TRIM4#

main73380-22200-G0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199409

JADE,TRIM6#

main73380-22200-G1iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199409-199609

JADE,TRIM6#

main73380-22200-J0iJZX90..TOUS,TOUV199409-199609

GRAYISH BLUE,TRIM8#

73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH

main73380-22200-E0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199210-199409

BEIGE,TRIM4#

main73380-22200-E1iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199409-199609

SABLE,TRIM4#

main73380-22200-G0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199409

JADE,TRIM6#

main73380-22200-G1iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199409-199609

JADE,TRIM6#

main73380-22200-J0iGX90,JZX90,91,LX90,SX90199210-199409

GRAYISH BLUE,TRIM8#

8271112120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12120

9010510162

main90105-10162

9010511036

main90105-11036

9011910334

main90119-10334

9011911028

main90119-11028

9163560616

main91635-60616

9165560616

main91655-60616

9356054014

main93560-54014

22 parts on this diagram · 1 diagram in section
