LUGGAGE COMPARTMENT DOOR & LOCK

6101SIDE MEMBER

→ Go to FIG 61-01

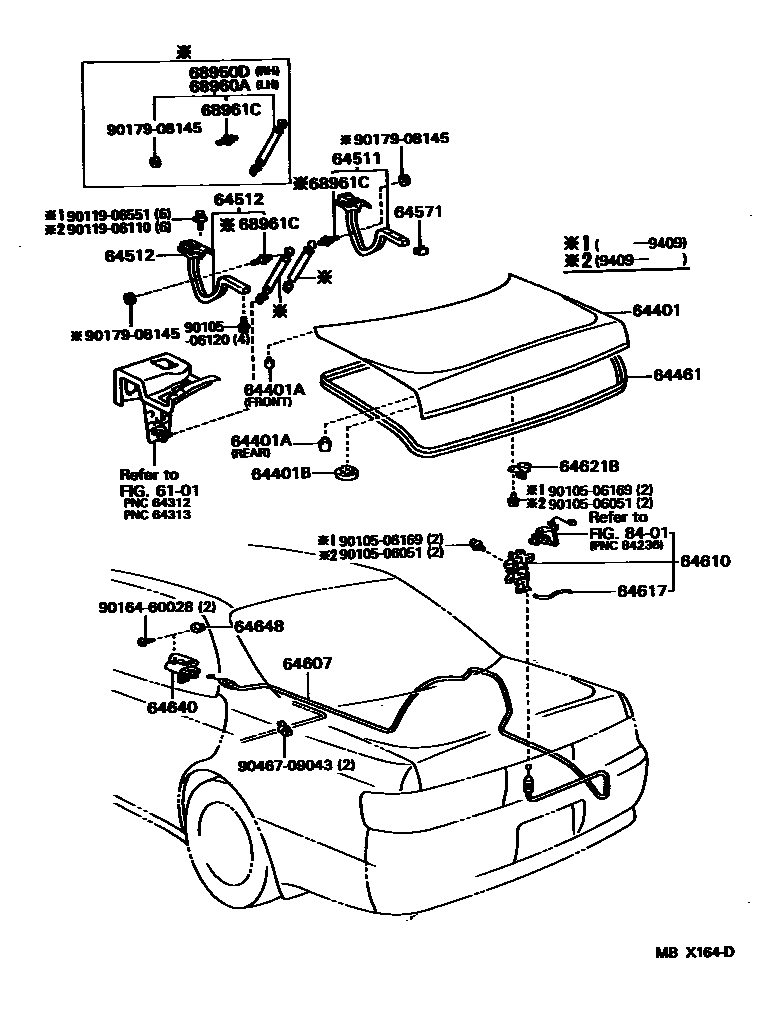

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-22600iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199210-199609

main64401-22610iJZX90..TOUS,TOUV199210-199609

main64401-22620iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF199210-199310

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06059×2iGX90,JZX9#,LX90,SX90199405-199409

main90541-09088×2iGX90,JZX9#,LX90,SX90199210-199609

REAR

64401BPLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90950-01392×2iGX90,JZX9#,LX90,SX90199210-199303

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-22240iGX90,JZX9#,LX90,SX90199210-199303

main64461-22260iJZX90..TOUS,TOUV199303-199609

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64510-22110iGX90,JZX9#,LX90,SX90199210-199310

main64510-22140iGX90,JZX9#,LX90,SX90199404-199609

PLANT NO.Q11

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64520-22100iGX90,JZX9#,LX90,SX90199210-199310

main64520-22130iGX90,JZX9#,LX90,SX90199404-199609

PLANT NO.Q11

64571COVER, LUGGAGE COMPARTMENT DOOR HINGE

main64571-22020×2iGX90,JZX90,LX90,SX90..AVT,RAF,TOUS,TOUV,XL199210-199310

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-22340iGX90,JZX9#,LX90,SX90199210-199609

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-22150iGX90,JZX9#,LX90,SX90199210-199609

64617LINK, LUGGAGE COMPARTMENT DOOR LOCK

main64617-22030iGX90,JZX9#,LX90,SX90199210-199609

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64620-12100iGX90,JZX9#,LX90,SX90199306-199609

main64620-24020iGX90,JZX9#,LX90,SX90199210-199306

64640OPENER ASSY, LUGGAGE DOOR LOCK

main64640-22240-E0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199210-199609

SABLE,TRIM4#

main64640-22240-G0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199609

JADE,TRIM6#

main64640-22240-J0iJZX90..TOUS,TOUV199409-199609

GRAYISH BLUE,TRIM8#

64648GROMMET, LUGGAGE DOOR LOCK OPENER

main64648-32010×2iGX90,JZX9#,LX90,SX90199210-199609

68950DSTAY ASSY, LUGGAGE DOOR, RH

main64530-29075iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199210-199609

main64530-29085iJZX90..TOUS,TOUV199210-199609

68960ASTAY ASSY, LUGGAGE DOOR, LH

main64530-29075iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199210-199609

main64530-29085iJZX90..TOUS,TOUV199210-199609

68961CBOLT, LUGGAGE DOOR STAY

main68961-22040×4iGX90,JZX9#,LX90,SX90199409-199609

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506051

main90105-06051

9010506120

main90105-06120

9010506169

main90105-06169

9011906110

main90119-06110

9011906551

main90119-06551

9016460028

main90164-60028

9017908145

main90179-08145

9046709043

main90467-09043

26 parts on this diagram · 1 diagram in section
