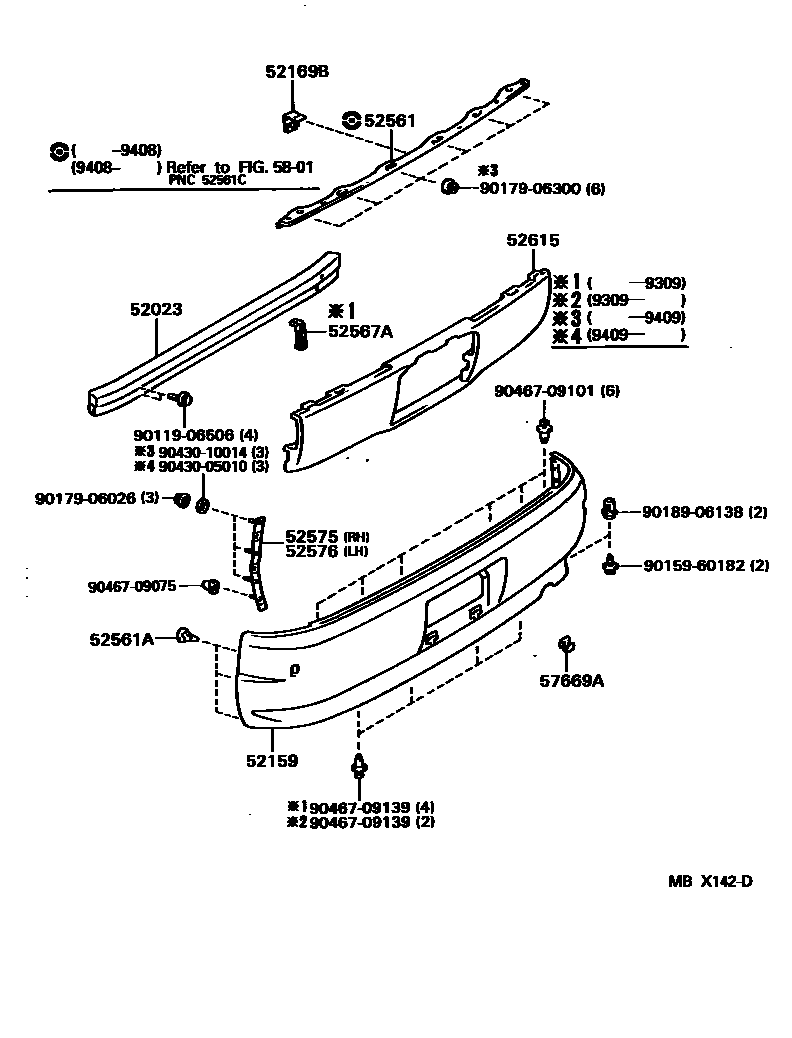

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-22190iGX90,JZX9#,LX90,SX90199210-199307

main52171-22150iGX90,JZX9#,LX90,SX90199307-199609

52159COVER, REAR BUMPER

main52159-22550-A0iGX90,JZX9#,LX90,SX90199210-199609

SUPER WHITE 2,040

main52159-22550-A1iJZX90;GX90,JZX91,93..ATM199412-199609

WARM GRAY PM,046

main52159-22550-A2iJZX90..AVT199310-199312

main52159-22550-A3iGX90..ATM199604-199609

main52159-22550-B0iGX90,JZX9#,LX90,SX90199210-199409

DK.BL.GRAY ME,183

main52159-22550-B1iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199409-199609

SILVER ME,199

main52159-22550-E0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199210-199609

FLAXEN MM,4M7

main52159-22550-E1iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199409-199609

DK.BROWN MC.,4N2

main52159-22550-G0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199409

DK.GRAYISH OLIVE ME,6M7

main52159-22550-G1iJZX9#199409-199412

DK.GREEN MIO,6N2

main52159-22550-G2iGX90..ATM199504-199609

main52159-22550-H0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199310-199509

DK.TURQUOISE.MC,742

main52159-22560-A0iJZX90,91..AVTG199210-199609

main52159-22560-A1iJZX90,91..AVTG199210-199609

main52159-22560-B0iJZX90,91..AVTG199210-199409

main52159-22560-B1iJZX90,91..AVTG199409-199609

main52159-22560-E0iJZX90,91..AVTG199210-199609

main52159-22560-E1iJZX90,91..AVTG199409-199609

main52159-22560-G0iJZX90,91..AVTG199210-199409

main52159-22560-G1iJZX90,91..AVTG199210-199609

main52159-22560-H0iJZX90,91..AVTG199310-199509

52169BBRACKET, REAR BUMPER, CENTER

main52169-22040iGX90,JZX9#,LX90,SX90199210-199609

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-22070iGX90,JZX9#,LX90,SX90199210-199408

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-05113×6iGX90,JZX9#,LX90,SX90199210-199609

52567ARETAINER, REAR BUMPER, LOWER SIDE

main52567-22010iGX90,JZX9#,LX90,SX90199210-199309

52575RETAINER, REAR BUMPER SIDE, RH

main52575-22030iGX90,JZX9#,LX90,SX90199210-199609

52576RETAINER, REAR BUMPER SIDE, LH

main52576-22030iGX90,JZX9#,LX90,SX90199210-199609

52615ABSORBER, REAR BUMPER ENERGY

main52615-22150iGX90,JZX9#,LX90,SX90199210-199609

57669ABRACKET, REAR LICENSE PLATE SUPPORT

main57669-22020×2iGX90,JZX9#,LX90,SX90199210-199609

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9011906506

main90119-06506

9015960182

main90159-60182

9017906026

main90179-06026

9017906300

main90179-06300

9018906138

main90189-06138

9043005010

main90430-05010

9043010014

main90430-10014

9046709075

main90467-09075

9046709101

main90467-09101

9046709139

main90467-09139

21 parts on this diagram · 1 diagram in section
