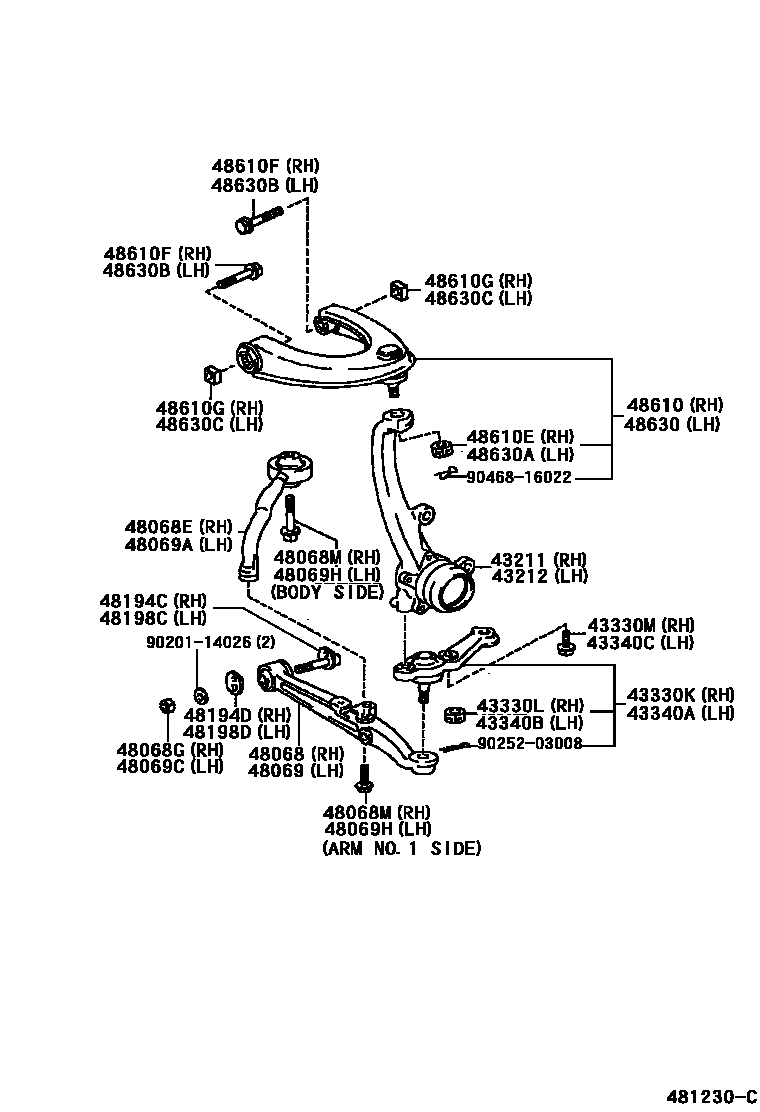

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1

43211KNUCKLE, STEERING, RH

main43211-22120iGX90,SX90;LX90..MTM; JZX90,91..AVTG,TOUV; JZX90,LX90..ATM..(AVT,RAF,TOUS,XL)199210-199507

main43211-22130iGX90,JZX90,LX90,SX90..AVT,RAF,TOUS,XL199210-199507

main43211-30170iJZX93199310-199609

main43211-30190iGX90,SX90;LX90..MTM; JZX90,91..AVTG,TOUV; JZX90,LX90..ATM..(AVT,RAF,TOUS,XL)199507-199609

main43211-30200iGX90,JZX90,LX90,SX90..AVT,RAF,TOUS,XL199507-199609

43212KNUCKLE, STEERING, LH

main43212-22110iGX90,SX90;LX90..MTM; JZX90,91..AVTG,TOUV; JZX90,LX90..ATM..(AVT,RAF,TOUS,XL)199210-199507

main43212-22120iGX90,JZX90,LX90,SX90..AVT,RAF,TOUS,XL199210-199507

main43212-30120iJZX93199310-199609

main43212-30140iGX90,SX90;LX90..MTM; JZX90,91..AVTG,TOUV; JZX90,LX90..ATM..(AVT,RAF,TOUS,XL)199507-199609

main43212-30150iGX90,JZX90,LX90,SX90..AVT,RAF,TOUS,XL199507-199609

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-29275iGX90,JZX90,91,LX90,SX90199210-199508

main43330-29285iJZX93199310-199508

main43330-29355iGX90,JZX90,91,LX90,SX90199508-199609

main43330-29365iJZX93199508-199609

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14002iGX90,JZX9#,LX90,SX90199210-199609

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12141×2iGX90,JZX9#,LX90,SX90199210-199609

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-29085iGX90,JZX90,91,LX90,SX90199210-199508

main43340-29135iJZX93199310-199508

main43340-29145iGX90,JZX90,91,LX90,SX90199508-199609

main43340-29155iJZX93199508-199609

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14002iGX90,JZX9#,LX90,SX90199210-199609

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12141×2iGX90,JZX9#,LX90,SX90199210-199609

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-22100iGX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,XL199210-199509

main48068-22110iJZX90..TOUS,TOUV199210-199609

main48068-22120iJZX93199310-199609

main48068-30270iGX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,XL199509-199609

48068EARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 RH

main48660-22090iGX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,XL199210-199609

main48660-22100iJZX90..TOUS,TOUV199210-199609

main48660-22110iJZX93199310-199511

main48660-22111iJZX93199511-199609

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90170-14012iGX90,JZX9#,LX90,SX90199210-199609

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90105-14097×2iGX90,JZX90,91,LX90,SX90199210-199609

ARM NO.1 SIDE

main90105-14100×2iJZX93199310-199511

ARM NO.1 SIDE

main90105-14115×2iJZX93199511-199609

ARM NO.1 SIDE

main90901-05010iGX90,JZX90,91,LX90,SX90199210-199609

BODY SIDE

main90901-05018iJZX93199310-199609

BODY SIDE

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-22100iGX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,XL199210-199509

main48069-22110iJZX90..TOUS,TOUV199210-199609

main48069-22120iJZX93199310-199609

main48069-30270iGX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,XL199509-199609

48069AARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 LH

main48670-22090iGX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,XL199210-199609

main48670-22100iJZX90..TOUS,TOUV199210-199609

main48670-22110iJZX93199310-199511

main48670-22111iJZX93199511-199609

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90170-14012iGX90,JZX9#,LX90,SX90199210-199609

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90105-14097×2iGX90,JZX90,91,LX90,SX90199210-199609

ARM NO.1 SIDE

main90105-14100×2iJZX93199310-199511

ARM NO.1 SIDE

main90105-14115×2iJZX93199511-199609

ARM NO.1 SIDE

main90901-05010iGX90,JZX90,91,LX90,SX90199210-199609

BODY SIDE

main90901-05018iJZX93199310-199609

BODY SIDE

48194CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH

main48190-22040iGX90,JZX9#,LX90,SX90199210-199609

48194DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH

main48198-14010iGX90,JZX9#,LX90,SX90199404-199609

main48198-22030iGX90,JZX9#,LX90,SX90199210-199404

48198CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH

main48190-22040iGX90,JZX9#,LX90,SX90199210-199609

48198DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH

main48198-14010iGX90,JZX9#,LX90,SX90199404-199609

main48198-22030iGX90,JZX9#,LX90,SX90199210-199404

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-29055iJZX90..TOUS,TOUV199210-199509

main48610-29065iGX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,XL199210-199509

main48610-29075iJZX93199310-199509

main48610-29115iJZX90..TOUS,TOUV199509-199609

main48610-39045iGX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,XL199509-199609

main48610-39055iJZX93199509-199609

48610ENUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH)

main90171-12002iGX90,JZX9#,LX90,SX90199210-199609

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main90105-10369×2iGX90,JZX9#,LX90,SX90199210-199607

main90119-10812×2iGX90,JZX9#,LX90,SX90199607-199609

48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)

main90173-10010×2iGX90,JZX9#,LX90,SX90199210-199609

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48610-29075iJZX93199310-199509

main48610-39055iJZX93199509-199609

main48630-29055iJZX90..TOUS,TOUV199210-199509

main48630-29065iGX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,XL199210-199509

main48630-29105iJZX90..TOUS,TOUV199509-199609

main48630-39025iGX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,XL199509-199609

48630ANUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH)

main90171-12002iGX90,JZX9#,LX90,SX90199210-199609

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main90105-10369×2iGX90,JZX9#,LX90,SX90199210-199607

main90119-10812×2iGX90,JZX9#,LX90,SX90199607-199609

48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)

main90173-10010×2iGX90,JZX9#,LX90,SX90199210-199609

9020114026

main90201-14026

9025203008

main90252-03008

9046816022

main90468-16022

31 parts on this diagram · 3 diagrams in section
