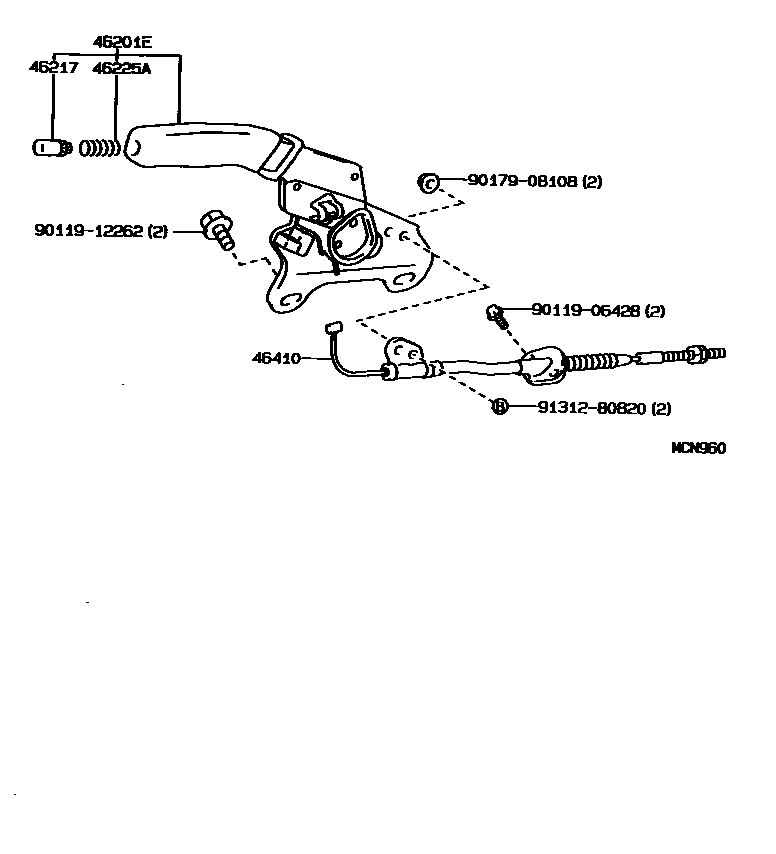

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46201PEDAL SUB-ASSY, PARKING BRAKE

main46201-22230iJZX9#..AVT,AVTG199210-199609

main46201-22240iGX90,LX90,SX90..ATM..(AVT,RAF)199210-199609

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-22250-C0iJZX90..TOUS,TOUV199210-199609

BLACK,TRIM6#,8#

main46201-22260-E0iLX90,SX90..XL;GX90,LX90,SX90..MTM..(AVT,RAF)199210-199609

SABLE,TRIM4#

main46201-22260-G0iGX90,LX90,SX90..MTM..(AVT,RAF)199210-199609

JADE,TRIM6#

main46201-22260-J0iLX90,SX90..XL;GX90,LX90,SX90..MTM..(AVT,RAF)199210-199409

GRAYISH BLUE,TRIM8#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-22060-C0iJZX90..TOUS,TOUV199210-199609

BLACK,TRIM6#,8#

main46217-22060-E0iLX90,SX90..XL;GX90,LX90,SX90..MTM..(AVT,RAF)199210-199609

SABLE,TRIM4#

main46217-22060-G0iGX90,LX90,SX90..MTM..(AVT,RAF)199210-199609

JADE,TRIM6#

main46217-22060-J0iLX90,SX90..XL;GX90,LX90,SX90..MTM..(AVT,RAF)199210-199409

GRAYISH BLUE,TRIM8#

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10085iJZX90,LX90,SX90..TOUS,TOUV,XL;GX90,LX90,SX90..MTM..(AVT,RAF)199210-199609

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-22200iGX90,JZX90,91,LX90,SX90..ATM..(AVT,AVTG,RAF)199210-199508

main46410-22210iJZX90,LX90,SX90..TOUS,TOUV,XL;GX90,LX90,SX90..MTM..(AVT,RAF)199210-199609

main46410-22220iJZX93199310-199512

main46410-30640iGX90,JZX90,91,LX90,SX90..ATM..(AVT,AVTG,RAF)199508-199609

main46410-30660iJZX93199512-199609

9011906428

main90119-06428

9011912262

main90119-12262

9017908108

main90179-08108

9131280820

main91312-80820

9 parts on this diagram · 4 diagrams in section
