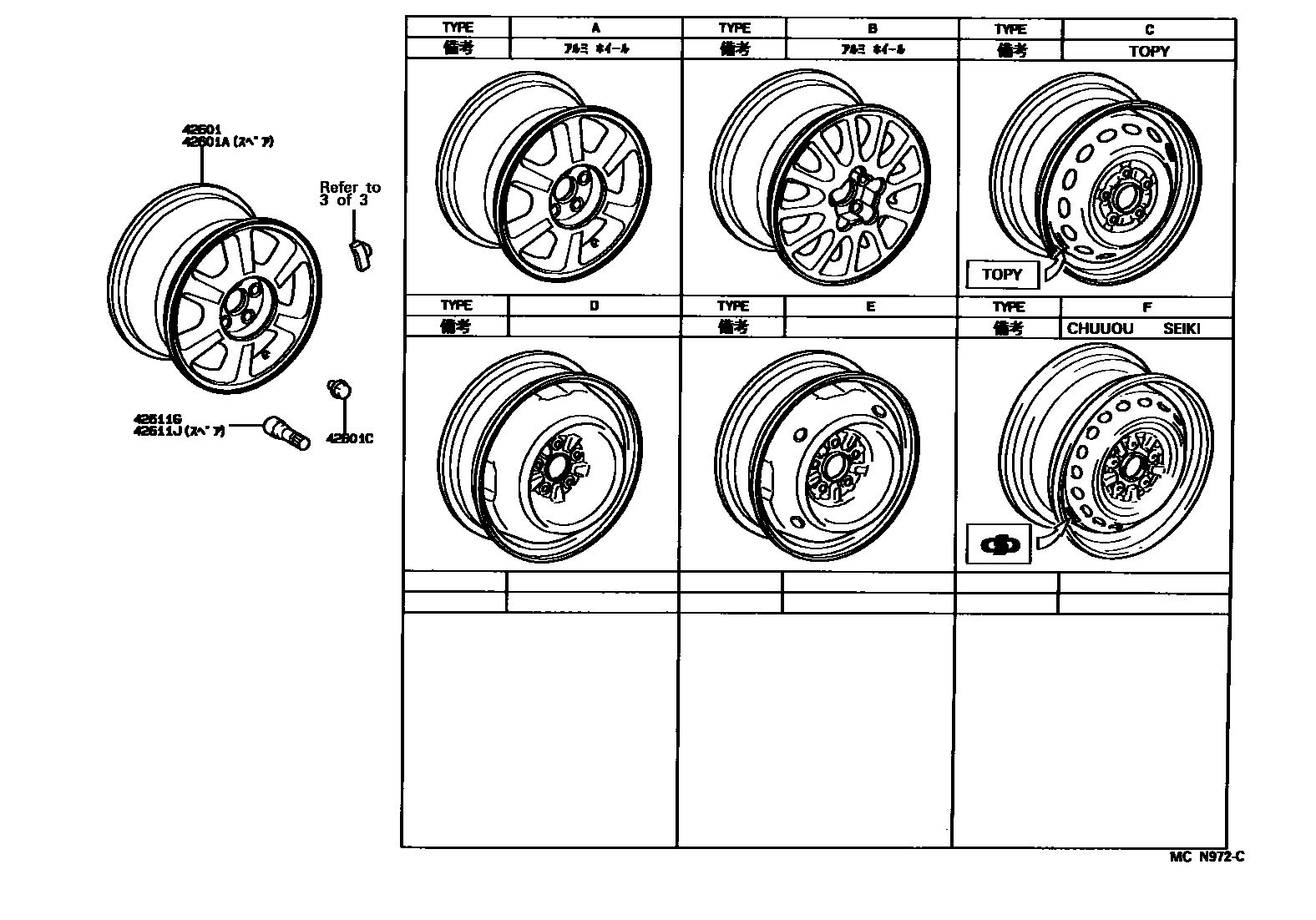

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-22690×2iJZX90..TOUS; JZX90..TOUV199210-199609

main42611-22700×2iJZX90..TOUV199210-199609

main42611-22720×4iGX90..ATM; GX90..MTM;JZX90,LX90,SX90..AVT,RAF199412-199609

main42611-22760×4iGX90,LX90,SX90..AVT,RAF; SX90..XL199409-199609

main42611-22770×4iJZX93;JZX90..AVT199210-199409

main42611-22780×4iGX90,LX90,SX90..AVT,RAF199409-199609

main42611-22790×4iJZX93;JZX90..AVT199210-199609

main42611-22800×4iLX90,SX90..XL199409-199609

main42611-22810×4iLX90,SX90..XL199210-199409

42601AWHEEL, DISC (FOR SPARE)

main42611-22690iJZX90..TOUS199409-199609

main42611-22720iJZX90,91..AVTG; JZX93;GX90,JZX90,LX90,SX90..AVT,RAF199210-199409

main42611-22760iGX90,LX90,SX90..AVT,RAF; SX90..XL199409-199609

main42611-22770iGX90..ATM199412

main42611-22780iGX90,LX90,SX90..AVT,RAF; SX90..XL199409-199609

main42611-22790iGX90199310-199409

main42611-22800iLX90,SX90..XL199409-199609

main42611-22810iLX90,SX90..XL199210-199409

main42611-22820iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,XL199210-199609

main42611-28210iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,XL199210-199609

42601CNUT, HUB (FOR AXLE)

main90942-01007×20iJZX93;GX90,JZX90,LX90,SX90..AVT,RAF,XL199210-199609

main90942-01058×20iJZX93;GX90,JZX90,LX90,SX90..AVT,RAF199210-199409

main90942-01062×20iJZX90..TOUS,TOUV199210-199609

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iGX90,JZX9#,LX90,SX90199210-199609

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iGX90,JZX9#,LX90,SX90199210-199609

5 parts on this diagram · 3 diagrams in section
