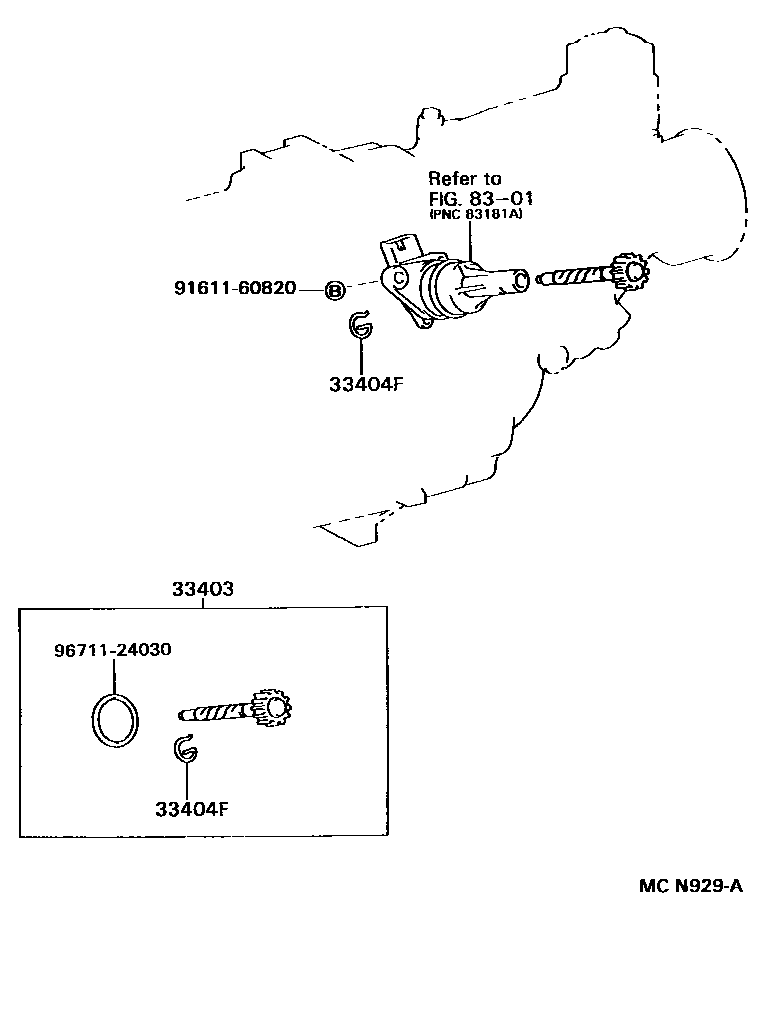

Toyota 311140 — SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

33403-29315

33403-39355

33403-39425

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

8301METER

→ Go to FIG 83-01

9161160820

91611-60820

9671124030

96711-24030

5 parts on this diagram · 1 diagram in section

SPEEDOMETER DRIVEN GEAR (MTM) for Toyota 311140

This section contains 5 genuine Toyota parts for the SPEEDOMETER DRIVEN GEAR (MTM) system of the Toyota 311140. Key components include: GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM), CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE), METER.
