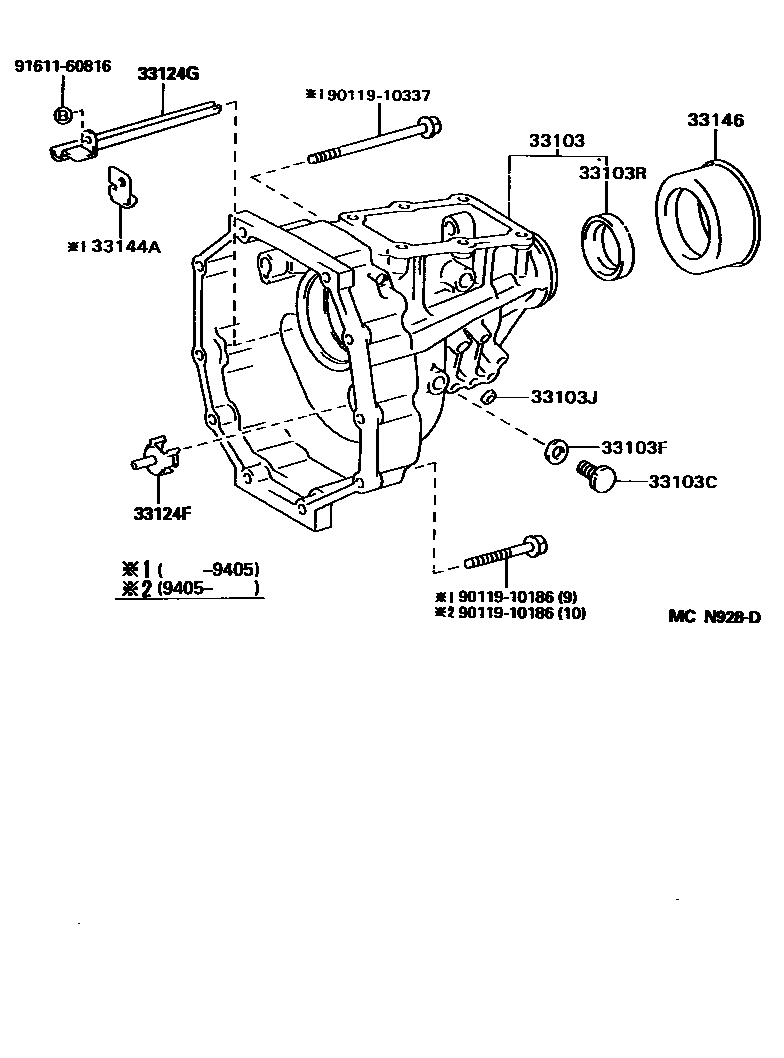

EXTENSION HOUSING (MTM)

0001 1R154 0002 1W55,W56,W57

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-22110iJZX90..MTM199210-199301

main33103-22120iJZX90..MTM199301-199405

main33103-30201iGX90,LX90,SX90..MTM199210-199609

main33103-35170iJZX90..MTM199405-199609

33103CPLUG, NO.1(FOR EXTENSION HOUSING)

main90341-18006iJZX90..MTM199210-199609

33103FGASKET(FOR EXTENSION HOUSING PLUG NO.1)

main90430-18008iJZX90..MTM199210-199609

33103JPLUG, TIGHT(FOR EXTENSION HOUSING)

main90341-10065iJZX90..MTM199405-199609

main96411-41800iJZX90..MTM199210-199405

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38032iGX90,LX90,SX90..MTM199210-199609

main90311-40001iJZX90..MTM199210-199609

33124FPIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)

main33106-30040iGX90,LX90,SX90..MTM199210-199609

main33124-35050iJZX90..MTM199210-199405

main33124-35100iJZX90..MTM199405-199609

33124GPIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)

main33124-35090iJZX90..MTM199405-199609

main33124-36010iJZX90..MTM199210-199405

33144ADEFLECTOR, EXTENSION HOUSING OIL(MTM)

main33144-14010iJZX90..MTM199210-199405

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iGX90,JZX90,LX90,SX90..MTM199210-199405

main33146-30020iJZX90..MTM199405-199409

9011910186

main90119-10186

9011910337

main90119-10337

9161160816

main91611-60816

12 parts on this diagram · 2 diagrams in section
