TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

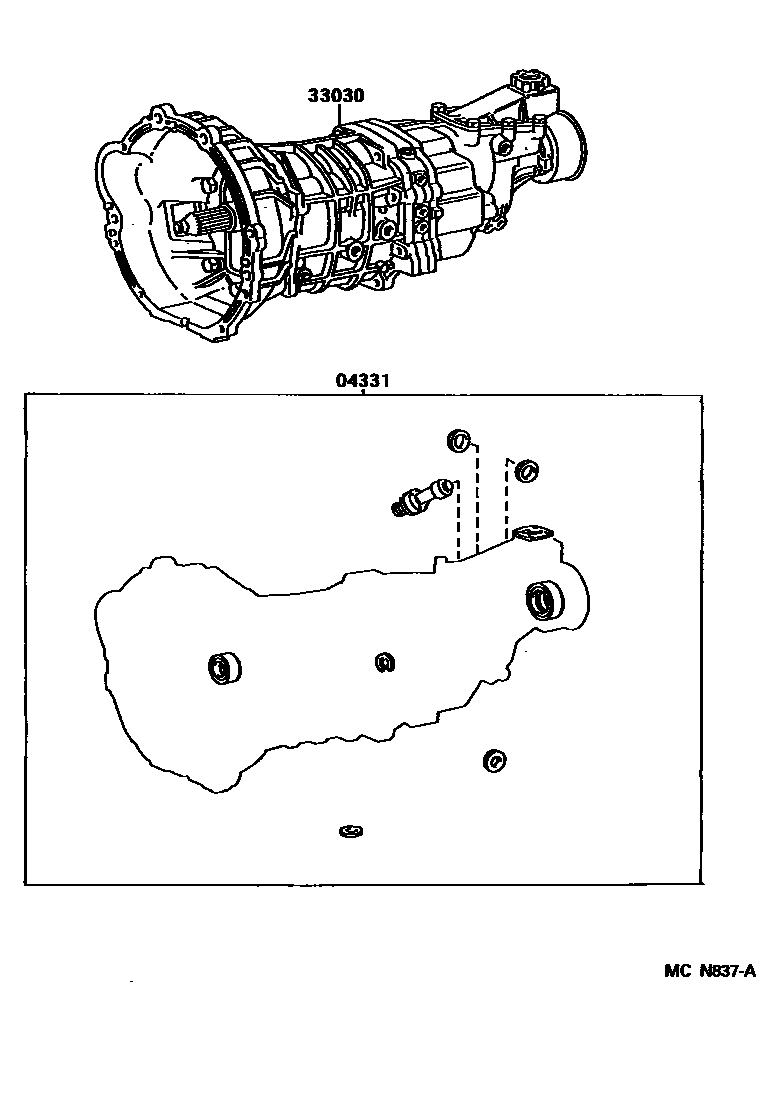

Parts diagram

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-22050i199210-199405

main04331-22060i199405-199609

main04331-30110i199210-199609

main04331-35190i199210-199609

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-2A460i199210-199609

main33030-2A470i199210-199609

main33030-2A480i199210-199509

main33030-2A481i199509-199609

main33030-2A490i199210-199405

main33030-2A580i199405-199409

main33030-2A590i199409-199609

2 parts on this diagram · 2 diagrams in section
