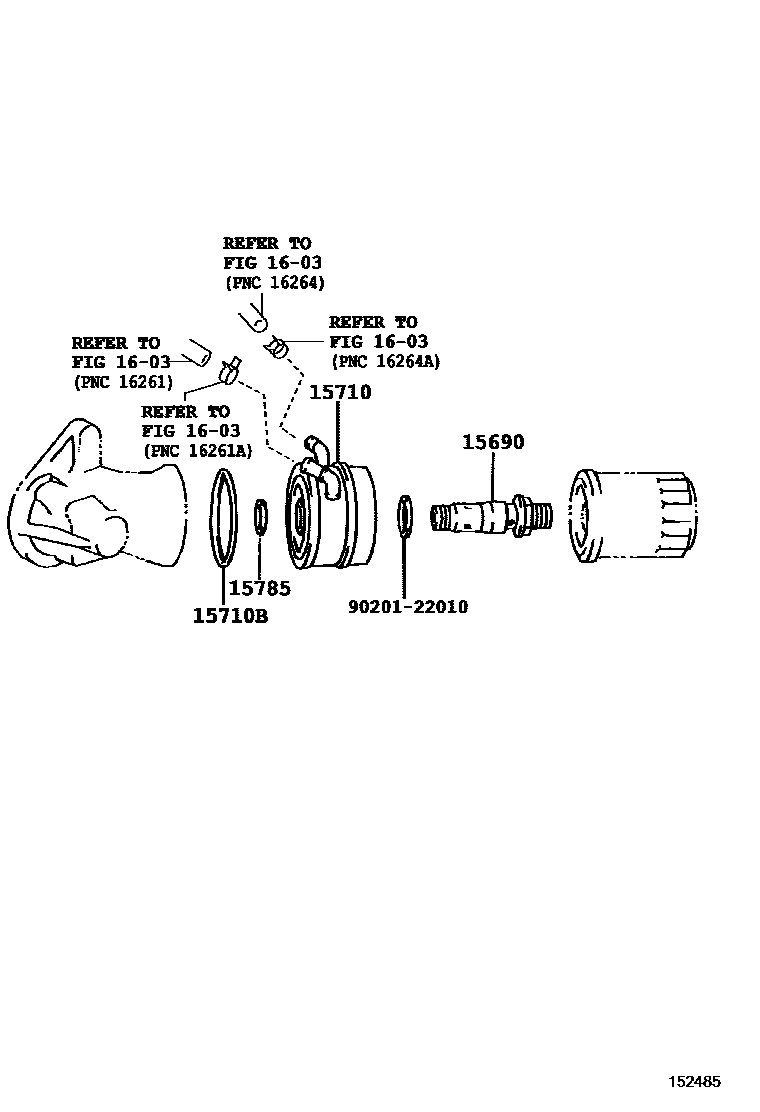

ENGINE OIL COOLER

0001 1 0002 1

15690VALVE ASSY, OIL COOLER RELIEF

main15690-88400i1JZGTE..JZX90199210-199609

15710COOLER ASSY, OIL

main15710-54050i2LTE..LX90199210-199609

main15710-88400i1JZGTE..JZX90199210-199310

main15710-88401i1JZGTE..JZX90199310-199609

15710BRING, O(FOR OIL COOLER)

main90301-61003i1JZGTE..JZX90199210-199609

15785GASKET, OIL COOLER

main15785-35010i1JZGTE..JZX90199210-199609

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

9020122010

main90201-22010

6 parts on this diagram · 2 diagrams in section
