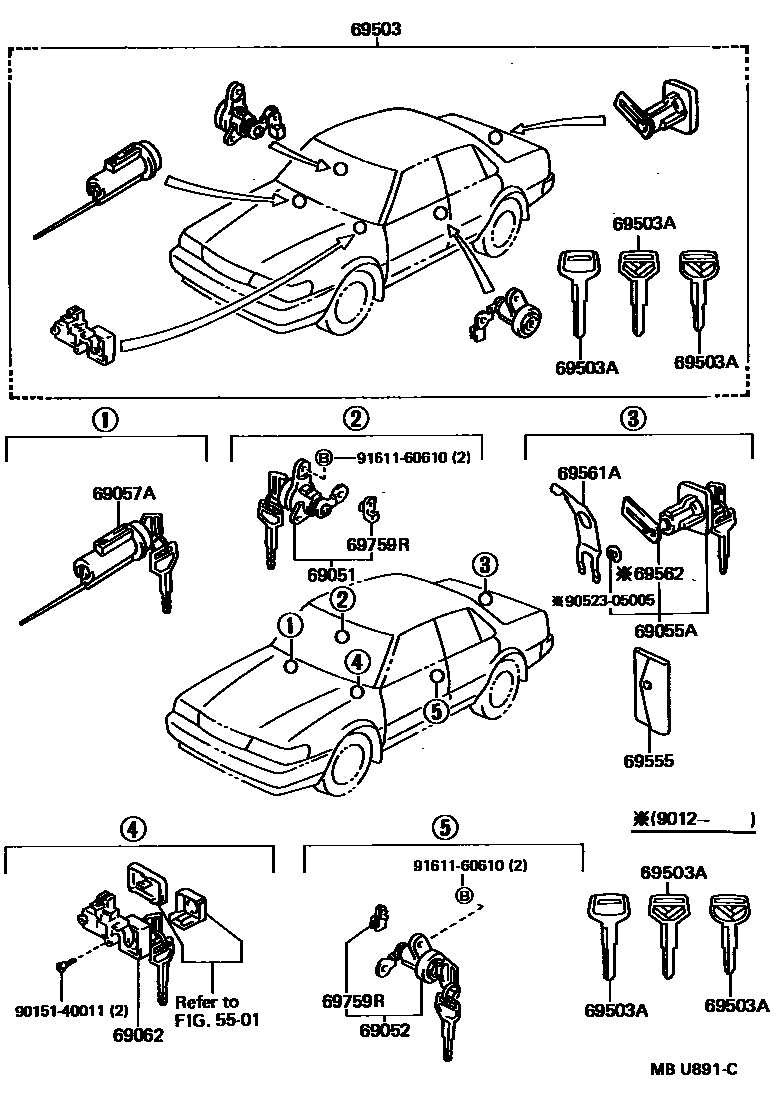

LOCK CYLINDER SET

0001 1 0002 1��(����� ������)

5501

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-22190iGX81,LX80,SX80..KYO,SXL,XG,XL199003-199210

sub69051-22240

main69051-22200iGX81..AVT,AVTG,GT199003-199210

sub69051-22280

main69051-91609iGX81,LX80,SX80,YX80..KYO,SXL,XG,XL198808-199210

main69051-91610iGX81,JZX81,MX83..AVT,AVTG,GT198808-199210

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-22200iGX81,LX80,SX80199003-199210

main69052-91609iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-23120iGX81,LX80,SX80..KYO,SXL,XG,XL199003-199210

main69055-23130iGX81..AVT,AVTG,GT199003-199210

main69055-23130iGX81..AVT,AVTG,GT199003-199210

main69055-91614iGX81,LX80,SX80,YX80..KYO,SXL,XG,XL198808-199210

main69055-91615iGX81,JZX81,MX83..AVT,AVTG,GT198808-199210

main69055-91615iLX80,SX80..XG198808-199210

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-22130iGX81,LX80,SX80199003-199210

main69057-91605iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

sub69057-22130

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-22090iGX81,LX80,SX80199003-199210

sub69056-17090

main69056-91606iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

sub69056-22090

69503CYLINDER SET, LOCK

main69005-23150iGX81,LX80,SX80..KYO,SXL,XG,XL199003-199210

main69005-23220iGX81..AVT,AVTG,GT199003-199210

main69005-23230iLX80,SX80..XG199003-199210

main69005-91622iGX81,LX80,SX80,YX80..KYO,SXL,XG,XL198808-199210

main69005-91623iGX81,JZX81..AVT,AVTG,GT198808-199210

main69005-91630iLX80,SX80..XG198808-199210

69503AKEY, BLANK

main90999-00130iGX81,LX80,SX80199003-199210

sub90999-00153

main90999-00132iGX81,LX80,SX80199003-199210

sub90999-00174

main90999-00137iGX81,LX80,SX80199003-199210

sub90999-00165

main90999-00146iGX81,JZX81,LX80,SX80,YX80198808-199210

main90999-00147iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

sub90999-00112

main90999-00148iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

sub90999-00114

69555COVER, KEY

main69555-20010iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER

main69561-91603iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

69562LEVER, LUGGAGE COMPARTMENT DOOR LOCK

main69562-23010iGX81,JZX81,LX80,MX83,SX80,YX80199012-199210

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-22080iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

main69759-22090iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

main69759-24090iGX81,LX80,SX80,YX80..KYO,SXL,XG,XL198808-199008

main69759-24090iGX81,LX80,SX80,YX80..KYO,SXL,XG,XL198808-199008

9015140011

main90151-40011

9052305005

main90523-05005

9161160610

main91611-60610

15 parts on this diagram · 2 diagrams in section
