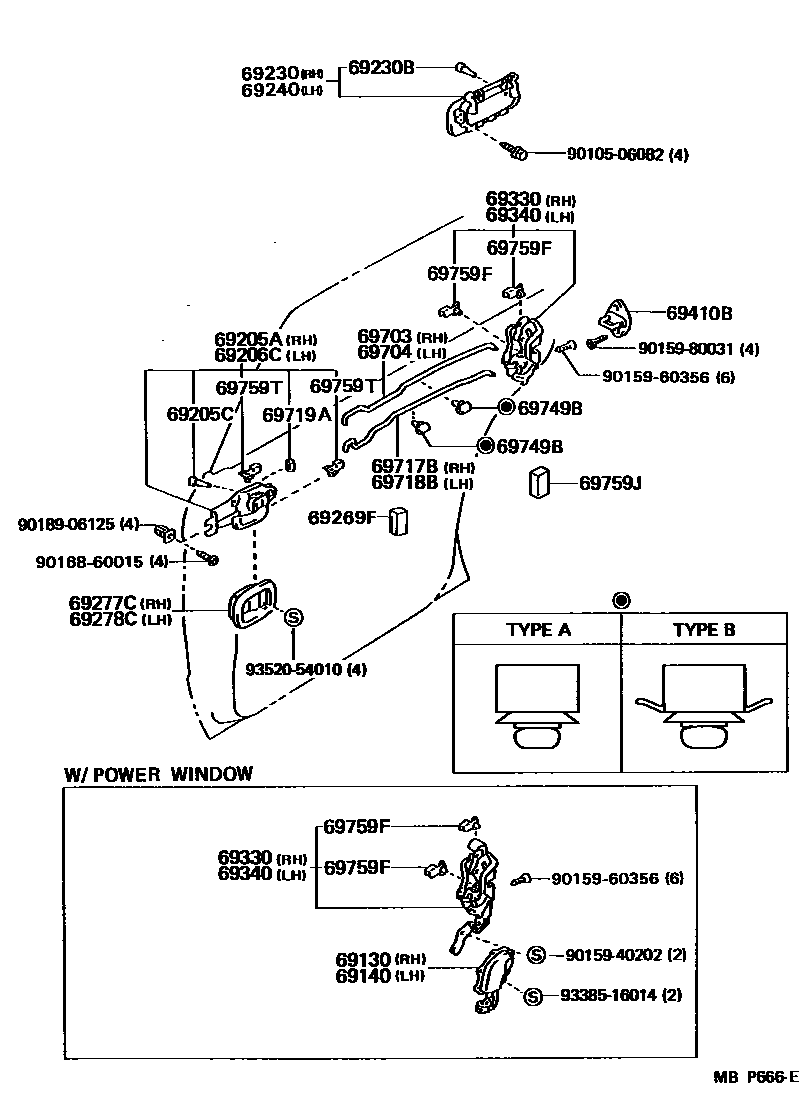

REAR DOOR LOCK & HANDLE

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-22030iGX81,LX80,SX80..SXL,XG198808-199210

main69130-22040iLX80,SX80..XG199112-199210

main69130-22040iGX81,JZX81,MX83..AVT,AVTG,GT198808-199210

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-22030iGX81,LX80,SX80..SXL,XG198808-199210

main69140-22040iLX80,SX80..XG199112-199210

main69140-22040iGX81,JZX81,MX83..AVT,AVTG,GT198808-199210

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-22040-02iGX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199008

NEW MAROON,TRIM3#

main69205-22040-04iGX81,LX80,MX83,SX80,YX80198808-199008

DARK BLUE,TRIM8#

main69205-22040-06iGX81,LX80,SX80..AVT,AVTG,GT,SXL,XG,XL198808-199008

SABLE,TRIM4#

main69205-22050-02iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG199008-199011

NEW MAROON,TRIM3#

sub69205-22060

main69205-22050-03iGX81,JZX81,LX80,MX83,SX80,YX80199008-199011

MEDIUM GRAY,TRIM1#

sub69205-22060

main69205-22050-06iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL199008-199011

SABLE,TRIM4#

sub69205-22060

main69205-22060-02iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG199011-199210

NEW MAROON,TRIM3#

sub69205-22060

main69205-22060-03iGX81,JZX81,LX80,MX83,SX80,YX80199011-199210

MEDIUM GRAY,TRIM1#

sub69205-22060

main69205-22060-06iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL199011-199210

SABLE,TRIM4#

sub69205-22060

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04018iGX81,LX80,SX80,YX80198808-199008

main90541-04018iGX81,JZX81,LX80,MX83,SX80,YX80198809-199210

OD=8.5

main90541-04020iGX81,JZX81,LX80,MX83,SX80,YX80198809-199210

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-22040-02iGX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199008

NEW MAROON,TRIM3#

main69206-22040-04iGX81,LX80,MX83,SX80,YX80198808-199008

DARK BLUE,TRIM8#

main69206-22040-06iGX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL198808-199008

SABLE,TRIM4#

main69206-22050-02iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG199008-199011

NEW MAROON,TRIM3#

sub69206-22060

main69206-22050-03iGX81,JZX81,LX80,MX83,SX80,YX80199008-199011

MEDIUM GRAY,TRIM1#

sub69206-22060

main69206-22050-06iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL199008-199011

SABLE,TRIM4#

sub69206-22060

main69206-22060-02iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG199011-199210

NEW MAROON,TRIM3#

sub69206-22060

main69206-22060-03iGX81,JZX81,LX80,MX83,SX80,YX80199011-199210

MEDIUM GRAY,TRIM1#

sub69206-22060

main69206-22060-06iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL199011-199210

SABLE,TRIM4#

sub69206-22060

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-22080iGX81,JZX81,LX80,SX80,YX80..AVT,GT,KYO,SXL,XG,XL198808-199210

main69230-22090-01iJZX81,MX83..AVTG199008-199210

BLACK M,24S

main69230-22090-03iGX81,MX83..AVTG198808-199008

GRAY MICA M.,170

main69230-22090-03iGX81..AVT198910-199008

main69230-22090-04iGX81..AVT198910-199008

main69230-22090-04iGX81,MX83..AVTG198903-199008

BLUE MICA,8E3

main69230-22090-06iJZX81,MX83..AVTG199008-199210

BEIGE MICA M,4J1

main69230-22090-07iJZX81,MX83..AVTG199008-199210

DARK GRAYISH GREEN M,6L8

main69230-22090-08iGX81..4FC..AVT..HTWC199112-199210

main69230-22090-08iGX81..AVT..HTWC199004-199008

main69230-22090-08iGX81..AVT..HTWC199109-199110

main69230-22090-08iGX81..AVT198910-199008

main69230-22090-08iGX81,JZX81,MX83..AVTG198808-199210

WHITE PEARL MICA,049 ,22K

main69230-22090-08iJZX81..AVT199105-199210

main69230-22090-08iJZX81..AVT199205-199210

main69230-22090-13iGX81,MX83..AVTG198908-199008

GREENISH SILVER M.,174

main69230-22090-13iGX81..AVT198910-199008

main69230-22090-14iJZX81,MX83..AVTG199008-199210

BLUE M,869

main69230-22090-18iJZX81..AVT199205-199210

main69230-22090-18iGX81..4FC..AVT..HTWC199205-199210

main69230-22090-18iGX81,JZX81,MX83..AVTG198808-199210

SUPER WHITE 4,050

main69230-22090-18iGX81..AVT..HTWC198910-199210

main69230-22090-18iLX80,SX80..XG199112-199210

main69230-22090-23iGX81,JZX81,MX83..AVTG198908-199210

DARK BLUEISH GRAY,183

main69230-22090-23iGX81..AVT198910-199008

main69230-22090-33iJZX81,MX83..AVTG199008-199210

BLUISH GRAY M,182

main69230-22090-43iJZX81,MX83..AVTG199008-199210

DARK MAUVE MICA,3K1

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04018iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-22080iGX81,JZX81,LX80,SX80,YX80..AVT,GT,KYO,SXL,XG,XL198808-199210

main69240-22090-01iJZX81,MX83..AVTG199008-199210

BLACK M,24S

main69240-22090-03iGX81,MX83..AVTG198808-199008

GRAY MICA M.,170

main69240-22090-03iGX81..AVT198910-199008

main69240-22090-04iGX81,MX83..AVTG198903-199008

BLUE MICA,8E3

main69240-22090-04iGX81..AVT198910-199008

main69240-22090-06iJZX81,MX83..AVTG199008-199210

BEIGE MICA M,4J1

main69240-22090-07iJZX81,MX83..AVTG199008-199210

DARK GRAYISH GREEN M,6L8

main69240-22090-08iGX81..AVT198910-199008

main69240-22090-08iGX81..AVT..HTWC199004-199008

main69240-22090-08iGX81..AVT..HTWC199109-199110

main69240-22090-08iGX81..4FC..AVT..HTWC199112-199210

main69240-22090-08iJZX81..AVT199205-199210

main69240-22090-08iJZX81..AVT199105-199210

main69240-22090-08iGX81,JZX81,MX83..AVTG198808-199210

WHITE PEARL MICA,049 ,22K

main69240-22090-13iGX81,MX83..AVTG198908-199008

GREENISH SILVER M.,174

main69240-22090-13iGX81..AVT198910-199008

main69240-22090-14iJZX81,MX83..AVTG199008-199210

BLUE M,869

main69240-22090-18iJZX81..AVT199205-199210

main69240-22090-18iGX81..AVT198910-199210

main69240-22090-18iGX81,JZX81,MX83..AVTG198808-199210

SUPER WHITE 4,050

main69240-22090-18iLX80,SX80..XG199112-199210

main69240-22090-18iJZX81..AVT199205-199210

main69240-22090-23iGX81..AVT198910-199008

main69240-22090-23iGX81,JZX81,MX83..AVTG198908-199210

DARK BLUEISH GRAY,183

main69240-22090-33iJZX81,MX83..AVTG199008-199210

BLUISH GRAY M,182

main69240-22090-43iJZX81,MX83..AVTG199008-199210

DARK MAUVE MICA,3K1

69269FSEAL, REAR DOOR INSIDE HANDLE

main69269-22050iGX81,JZX81,LX80,MX83,SX80,YX80198906-199210

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69297-22020-04iLX80,SX80,YX80..KYO,XL198808-199008

DARK BLUE,TRIM8#

sub69297-22020

main69297-22020-06iLX80,SX80..XL198808-199008

SABLE,TRIM4#

sub69297-22020

main69297-22030-02iGX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199008

NEW MAROON,TRIM3#

main69297-22030-04iGX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199008

DARK BLUE,TRIM8#

main69297-22030-06iGX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199008

SABLE,TRIM4#

main69297-22040-03iLX80,SX80,YX80..KYO,XL199008-199210

MEDIUM GRAY,TRIM1#

main69297-22040-06iLX80,SX80..XL199008-199210

SABLE,TRIM4#

main69297-22050-02iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG199008-199210

NEW MAROON,TRIM3#

sub69297-22050

main69297-22050-03iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG199008-199210

MEDIUM GRAY,TRIM1#

sub69297-22050

main69297-22050-06iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG199008-199210

SABLE,TRIM4#

sub69297-22050

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69298-22020-04iLX80,SX80,YX80..KYO,XL198808-199008

DARK BLUE,TRIM8#

sub69298-22020

main69298-22020-06iLX80,SX80..XL198808-199008

SABLE,TRIM4#

sub69298-22020

main69298-22030-02iGX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199008

NEW MAROON,TRIM3#

main69298-22030-04iGX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199008

DARK BLUE,TRIM8#

main69298-22030-06iGX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199008

SABLE,TRIM4#

main69298-22040-03iLX80,SX80,YX80..KYO,XL199008-199210

MEDIUM GRAY,TRIM1#

main69298-22040-06iLX80,SX80..XL199008-199210

SABLE,TRIM4#

main69298-22050-02iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG199008-199210

NEW MAROON,TRIM3#

sub69298-22050

main69298-22050-03iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG199008-199210

MEDIUM GRAY,TRIM1#

sub69298-22050

main69298-22050-06iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG199008-199210

SABLE,TRIM4#

sub69298-22050

69330LOCK ASSY, REAR DOOR, RH

main69330-22270iLX80,SX80,YX80..KYO,XL198808-199008

main69330-22271iLX80,SX80,YX80..KYO,XL199008-199210

main69330-22320iGX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199008

main69330-22321iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG199008-199210

69340LOCK ASSY, REAR DOOR, LH

main69340-22280iLX80,SX80,YX80..KYO,XL198808-199008

main69340-22281iLX80,SX80,YX80..KYO,XL199008-199210

main69340-22330iGX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG198808-199008

main69340-22331iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG199008-199210

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-20070iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69737-22070iGX81,LX80,MX83,SX80,YX80198808-199008

main69737-22110iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69738-22060iGX81,LX80,MX83,SX80,YX80198808-199008

main69738-22100iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-22060iGX81,LX80,MX83,SX80,YX80198808-199008

main69713-22090iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-22060iGX81,LX80,MX83,SX80,YX80198808-199008

main69714-22090iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

69719ACUSHION, DOOR LOCK CONTROL

main69719-22010iGX81,LX80,MX83,SX80,YX80198808-199008

69749BCLAMP, REAR DOOR LOCK LINK

main69749-20030iGX81,LX80,MX83,SX80,YX80198808-199008

main69749-20030iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

main69749-50010iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-24050iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

GREEN

main69759-24060iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

GRAY

69759JSILENCER, DOOR LOCK LINK

main69759-22100iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-14050iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

main69759-24070iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

9010506082

main90105-06082

9015940202

main90159-40202

9015960356

main90159-60356

9015980031

main90159-80031

9016860015

main90168-60015

9018906125

main90189-06125

9338516014

main93385-16014

9352054010

main93520-54010

31 parts on this diagram · 1 diagram in section
