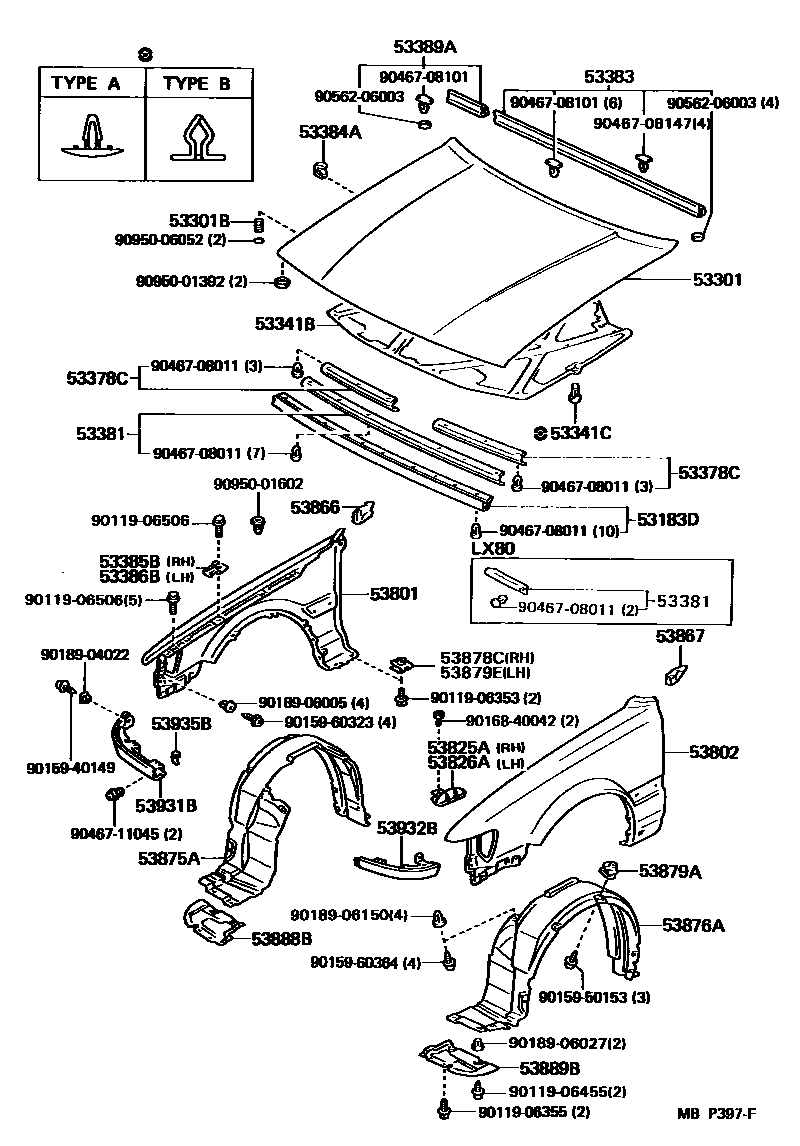

HOOD & FRONT FENDER

53183DSEAL, HEADLAMP COVER TO HOOD

main53183-91605iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53301HOOD SUB-ASSY

main53301-91604iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53301BCUSHION, HOOD BUMPER

main90541-15004×2iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53341BINSULATOR, HOOD

main53341-22090iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53341CCLIP(FOR HOOD INSULATOR)

main90467-09006×12iGX81,JZX81,LX80,MX83,SX80,YX80..CI,DSL,HTWC,LPG,SPC,TWC; GX81,JZX81,LX80..TD,TWT198808-199210

main90467-13009×3iGX81,JZX81,LX80..TD,TWT198808-199210

53378CSEAL, HOOD AIR INTAKE DUCT

main53378-22020iLX80198808-199210

main53379-22010iLX80198808-199210

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-22080iGX81,JZX81,MX83,SX80,YX80198808-199210

main53381-22090iLX80198808-199210

53383SEAL, HOOD TO COWL TOP

main53383-22050iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

main53383-22060iGX81,LX80,SX80,YX80198808-198901

53384ABUMPER, FENDER TO HOOD

main53384-24010×2iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53385BBRACKET, FENDER TO HOOD BUMPER, RH

main53386-20020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53386BBRACKET, FENDER TO HOOD BUMPER, LH

main53385-20020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53389ASEAL, HOOD TO COWL TOP, NO.2

main53389-22010iGX81,LX80,SX80,YX80198808-198901

53801FENDER SUB-ASSY, FRONT RH

main53801-91623iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL198808-199210

main53801-91625iLX80,SX80,YX80..KYO198808-199210

main53801-91626iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL198808-199210

main53801-91628iLX80,SX80,YX80..KYO198808-199210

53802FENDER SUB-ASSY, FRONT LH

main53802-91623iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL198808-199210

main53802-91625iLX80,SX80,YX80..KYO198808-199210

main53802-91626iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL198808-199210

main53802-91628iLX80,SX80,YX80..KYO198808-199210

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-23010iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

main53825-91601iGX81,LX80,MX83,SX80,YX80198808-199008

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-23010iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

main53826-91601iGX81,LX80,MX83,SX80,YX80198808-199008

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-22070iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-22070iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53875ALINER, FRONT FENDER, RH

main53875-22050iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53876ALINER, FRONT FENDER, LH

main53876-22050iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53878CSPACER, FRONT FENDER

main53878-14020×2iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53879ARETAINER, FRONT FENDER LINER

main53879-22030×6iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53879ESPACER, FRONT FENDER, LH

main53878-14020×2iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

53888BSEAL, FRONT FENDER SPLASH SHIELD, RH NO.2

main53888-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53889BSEAL, FRONT FENDER SPLASH SHIELD, LH NO.2

main53889-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

53931BPANEL, FRONT END, RH

main53903-23010iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

main53903-91603iGX81,LX80,MX83,SX80,YX80198808-199008

53932BPANEL, FRONT END, LH

main53904-23010iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

main53904-91603iGX81,LX80,MX83,SX80,YX80198808-199008

53935BPROTECTOR, FRONT END PANEL

main53935-23030×2iGX81,JZX81,LX80,MX83,SX80,YX80199008-199012

main53935-23040×2iGX81,JZX81,LX80,MX83,SX80,YX80199012-199210

main53935-91601×2iGX81,LX80,MX83,SX80,YX80198808-199008

9011906353

main90119-06353

9011906355

main90119-06355

9011906455

main90119-06455

9011906506

main90119-06506

9015940149

main90159-40149

9015950153

main90159-50153

9015960323

main90159-60323

9015960364

main90159-60364

9016840042

main90168-40042

9018904022

main90189-04022

9018906005

main90189-06005

9018906027

main90189-06027

9018906150

main90189-06150

9046708011

main90467-08011

9046708101

main90467-08101

9046708147

main90467-08147

9046711045

main90467-11045

9056206003

main90562-06003

9095001392

main90950-01392

9095001602

main90950-01602

9095006052

main90950-06052

49 parts on this diagram · 1 diagram in section
