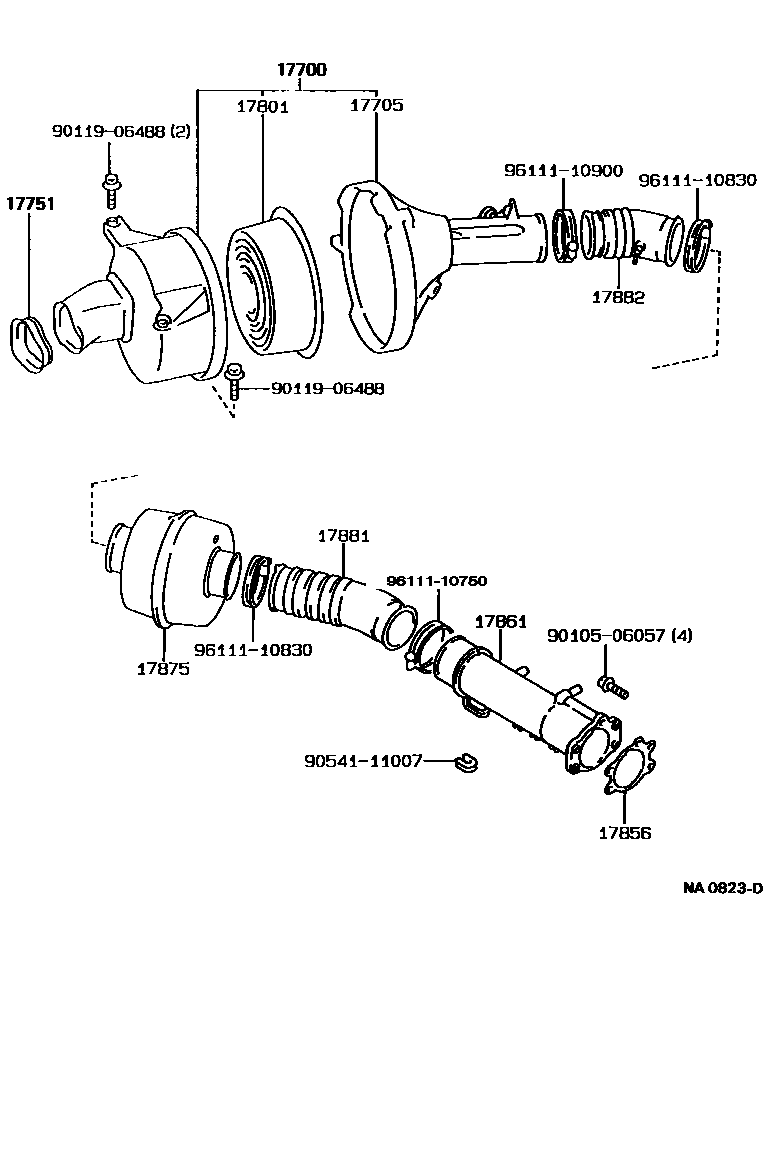

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1

17700CLEANER ASSY, AIR

main17700-42290i7MGE..MX83198908-199210

main17700-46070i1JZGE..JZX81199008-199210

main17700-46080i1JZGTE..JZX81199008-199210

main17700-54440i2L#..LX80198808-199210

main17700-70120i1GFE,1GGE..GX81198808-199210

main17700-70130i1GGTE,1GGZE..GX81198808-199008

main17700-73220i3YP..YX80198808-199210

main17700-74220i4SFI..SX80198808-199008

main17700-74290i4SFI..SX80..XG,XL198908-199008

main17700-74350i4SFE..SX80199008-199210

17705CAP SUB-ASSY, AIR CLEANER

main17705-42160i7MGE..MX83198908-199210

main17705-46060i1JZ#..JZX81199008-199210

main17705-54220i3YP..YX80198808-199210

main17705-70060i1GFE,1GGE..GX81198808-199210

main17705-70070i1GGTE,1GGZE..GX81198808-199008

main17705-74130i4SFI..SX80..KYO198808-199008

main17705-74190i4SFI..SX80..XG,XL198908-199008

main17705-74240i4SFE..SX80199008-199210

17751INLET, AIR CLEANER, NO.1

main17751-70020i1GFE,1GG#..GX81198808-199210

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-46040i1JZ#..JZX81199008-199210

main17801-54090i2L#..LX80198808-199210

main17801-70020i1GFE,1GG#..GX81198808-199210

main17801-73020i3YP..YX80198808-199210

17856GASKET, AIR INTAKE FLANGE

main17856-70020i1GFE..GX81198808-199210

main17856-70030i1GGZE..GX81198908-199008

main17856-88300i1GGE,1GGZE..GX81198808-199210

main17856-88300i1GGZE..GX81198908-199008

17861CONNECTOR, INTAKE AIR

main17860-46010i1JZGE..JZX81199008-199210

main17861-42050i7MGE..MX83198908-199210

main17861-70010i1GGZE..GX81198908-199008

main17861-70010i1GGZE..GX81198808-198908

main17861-70020i1GFE..GX81198808-199008

main17861-70040i1GGZE..GX81198908-199008

main17861-70050i1GFE..GX81199008-199210

main17861-74020i4SFI..SX80198808-199008

main17861-88303i1GGE..GX81198808-199210

main17861-88341i1GGTE..GX81198808-199008

main17861-88400i1JZGTE..JZX81199008-199108

main17861-88401i1JZGTE..JZX81199108-199210

17875PIPE, INTAKE AIR CONNECTOR

main17875-42080i7MGE..MX83198908-199210

main17875-46020i1JZGE..JZX81199008-199210

main17875-70130i1GGZE..GX81198808-199008

main17875-70140i1GFE,1GGE..GX81198808-199210

17881HOSE, AIR CLEANER, NO.1

main17881-42070i7MGE..MX83198908-199210

main17881-46030i1JZGTE..JZX81199008-199210

main17881-46040i1JZGE..JZX81199008-199210

main17881-70200i1GFE..GX81198808-199210

main17881-70210i1GGTE..GX81198808-199008

main17881-70220i1GGE,1GGZE..GX81198808-199210

main17881-73100i3YP..YX80198808-199210

main17881-74240i4SFI..SX80198808-199008

main17881-74380i4SFE..SX80199008-199210

17882HOSE, AIR CLEANER, NO.2

main17882-42060i7MGE..MX83198908-199210

main17882-54290i2LT..LX80198808-199210

sub17882-54440

main17882-54350i2L..LX80198808-199210

NO.1

main17882-70130i1GFE,1GGE,1GGZE..GX81198808-199210

main17882-74230i4SFE..SX80199008-199210

main17890-54010i3YP..YX80198808-199210

NO.2

9010506057

main90105-06057

9011906488

main90119-06488

9054111007

main90541-11007

9611110750

main96111-10750

9611110830

main96111-10830

9611110900

main96111-10900

15 parts on this diagram · 14 diagrams in section
