ENGINE OVERHAUL GASKET KIT

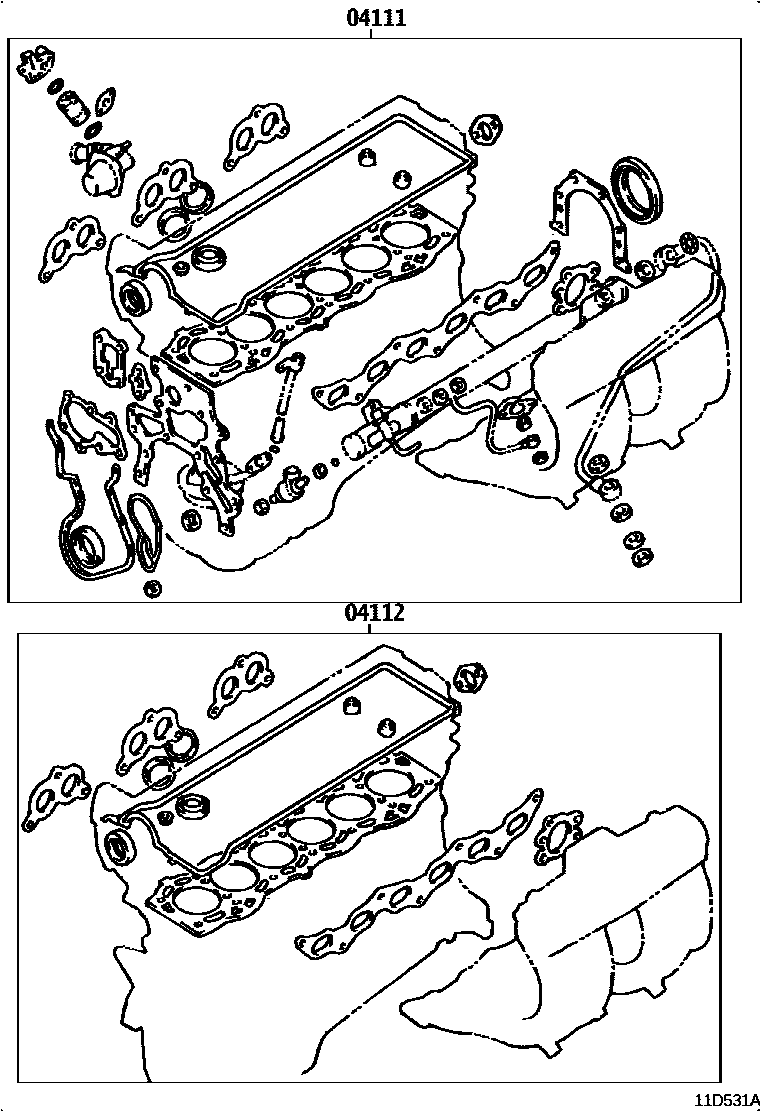

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-42030i198908-199008

main04111-42031i199008-199110

main04111-42032i199110-199111

main04111-42033i199111-199210

main04111-46020i199008-199101

main04111-46021i199101-199210

main04111-46030i199008-199101

main04111-46031i199101-199210

main04111-54080i198808-198904

main04111-54081i198904-198908

main04111-54082i198908-199108

main04111-54083i199108-199210

main04111-54100i198808-198904

main04111-54102i198904-199108

main04111-54103i199108-199210

main04111-70031i198808-198912

main04111-70032i198912-199007

main04111-70033i199007-199008

main04111-70042i198808-199008

main04111-70060i198808-199007

main04111-70061i199007-199210

main04111-70070i198808-199007

main04111-70071i199007-199210

main04111-72013i198808-198912

main04111-72014i198912-199106

main04111-72015i199106-199210

main04111-74091i198808-198910

main04111-74092i198910-199008

main04111-74280i199008-199210

04112GASKET KIT, ENGINE VALVE GRIND

main04112-42030i198908-199008

main04112-42031i199008-199110

main04112-42032i199110-199111

main04112-42033i199111-199210

main04112-46020i199008-199210

main04112-46030i199008-199210

main04112-54070i198808-199108

main04112-54071i199108-199210

main04112-54090i198808-199008

main04112-54100i199008-199108

main04112-54101i199108-199210

main04112-70031i198808-199007

main04112-70032i199007-199008

main04112-70042i198808-199008

main04112-70060i198808-199007

main04112-70061i199007-199210

main04112-70070i198808-199008

main04112-70071i199008-199210

main04112-72013i198808-199001

main04112-72014i199001-199106

main04112-72015i199106-199210

main04112-74091i198808-198910

main04112-74092i198910-199008

main04112-74260i199008-199210

2 parts on this diagram · 9 diagrams in section
