DOOR MOTOR & DOOR SOLENOID

85450SOLENOID ASSY, DOOR CONTROL, FRONT RH

main85450-22400iGX71,LX70,SX70..SXL,XG198408-198808

main85450-22440iGX71,MX71..AVT,GT198408-198808

85460SOLENOID ASSY, DOOR CONTROL, FRONT LH

main85450-22410iGX71,LX70,SX70..SXL,XG198408-198808

main85450-22450iGX71,MX71..AVT,GT198408-198808

85470SOLENOID ASSY, DOOR CONTROL, REAR RH

main85450-22520iGX71,MX71..AVT,GT198408-198808

main85450-22540iGX71,LX70,SX70..SXL,XG198408-198808

85480SOLENOID ASSY, DOOR CONTROL, REAR LH

main85450-22530iGX71,MX71..AVT,GT198408-198808

main85450-22550iGX71,LX70,SX70..SXL,XG198408-198808

85710AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH

main85710-22180iGX71,LX70,SX70..AVT,GT,SXL,XG198608-198808

main85720-22130iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG198408-198608

DENSO

main85720-22150iGX71,LX70,MX71,SX70..AVT,SXL,XG198408-198411

MATSUSHITA

85710BMOTOR ASSY, POWER WINDOW REGULATOR, REAR RH

main85710-22190iGX71,LX70,SX70..AVT,GT,SXL,XG198608-198808

main85720-22140iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG198408-198608

DENSO

main85720-22160iGX71,LX70,MX71,SX70..AVT,SXL,XG198408-198411

MATSUSHITA

85720AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH

main85710-22140iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG198408-198608

DENSO

main85710-22160iGX71,LX70,MX71,SX70..AVT,SXL,XG198408-198411

MATSUSHITA

main85720-22170iGX71,LX70,SX70..AVT,GT,SXL,XG198608-198808

85720BMOTOR ASSY, POWER WINDOW REGULATOR, REAR LH

main85710-22150iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG198408-198608

DENSO

main85710-22170iGX71,LX70,MX71,SX70..AVT,SXL,XG198408-198411

MATSUSHITA

main85720-22180iGX71,LX70,SX70..AVT,GT,SXL,XG198608-198808

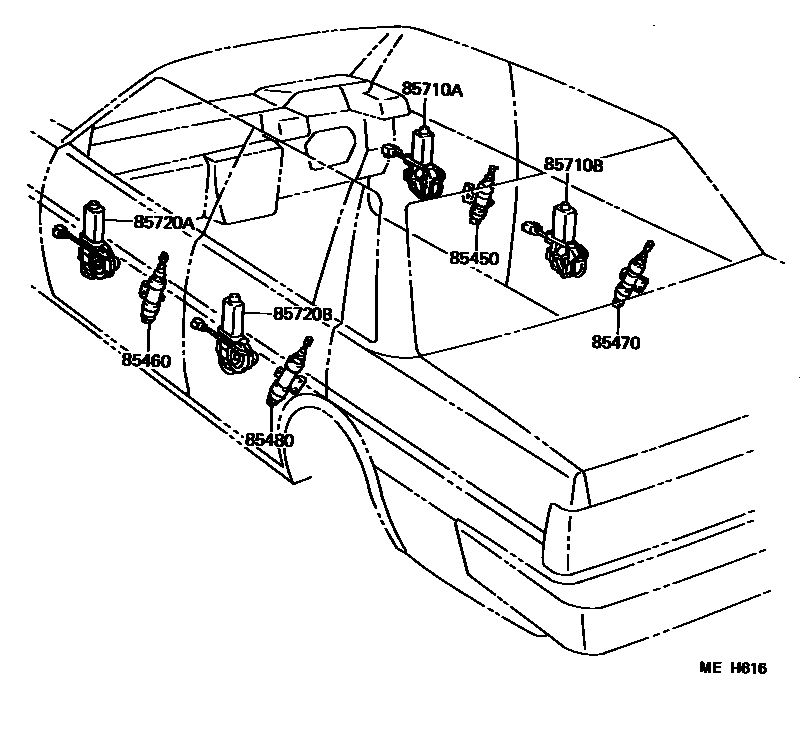

8 parts on this diagram · 1 diagram in section
