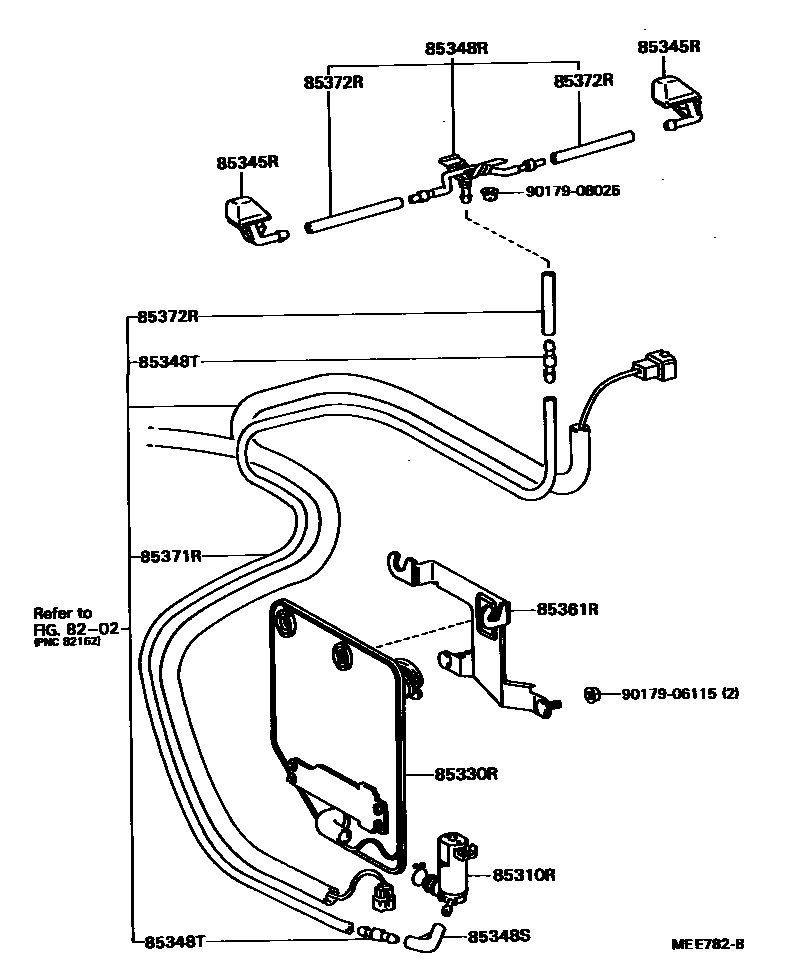

REAR WASHER

8202

85310RMOTOR ASSY, REAR WASHER

main85310-22080iGX71,MX71..AVT,GT198408-198808

85330RJAR ASSY, REAR WASHER

main85331-22300iGX71,MX71..AVT,GT198408-198808

85345RNOZZLE, REAR WASHER

main85341-22150iGX71,MX71..AVT,GT198408-198808

RH

main85341-22160iGX71,MX71..AVT,GT198408-198808

LH

85348RJOINT, REAR WASHER HOSE, NO.1

main85355-91601iGX71,MX71..AVT,GT198408-198808

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481iGX71,MX71..AVT,GT198408-198808

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iGX71,MX71..AVT,GT198408-198808

85361RHOLDER, REAR WASHER

main85361-22270iGX71,MX71..AVT,GT198408-198808

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-07001iGX71,MX71..AVT,GT198408-198808

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33299iGX71,MX71..AVT,GT198408-198808

9017906115

main90179-06115

9017908025

main90179-08025

12 parts on this diagram · 1 diagram in section
