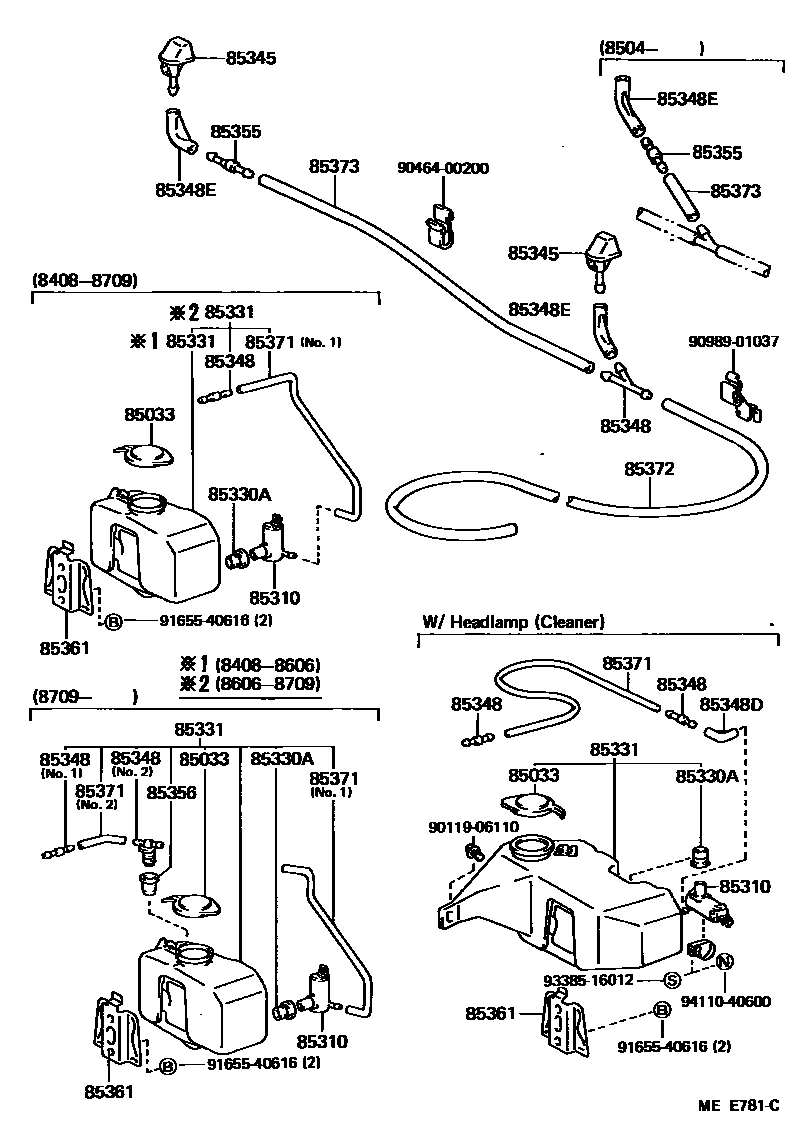

WINDSHIELD WASHER

0001 1 0002 1

85033CAP ASSY, WINDSHIELD WASHER

main85332-12320iGX71,LX70,MX71,SX70,YX7#198408-198808

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iGX71,LX70,MX71,SX70,YX7#198408-198808

main85310-22120iGX71..4FC..TWC198408-198808

W/ESC OR W/ESC & *HC

sub85310-89115

main85310-22130iGX71,MX71..AVT,GT198411-198808

W/*HC

main85310-30080iGX71,MX71..AVT198408-198411

W/*HC

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iGX71,LX70,MX71,SX70,YX7#198408-198808

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85331-22210iGX71,MX71..AVT,GT198408-198808

W/*HC

main85331-22240iGX71..4FC..TWC198408-198808

W/*HC & ESC

main85331-22310iYX7#198408-198808

main85331-22360iGX71,LX70,MX71,SX70198408-198808

main85331-22420iGX71..4FC..TWC198408-198808

W/ESC

85345NOZZLE, WINDSHIELD WASHER

main85035-22140iGX71,LX70,MX71,SX70,YX70198408-198411

sub85035-22170

main85035-22170iGX71,LX70,MX71,SX70,YX70198411-198608

sub85035-22210

main85035-22210-01iGX71,LX70,SX70,YX72198608-198808

BLACK,BLACK

main85035-22210-08iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

WHITE,SUPER WHITE 2

main85035-22210-18iGX71..AVT,GT198608-198808

PEAL MICA,PEARL MICA

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iGX71,LX70,SX70,YX7#198408-198808

3 WAY

main85349-89122iGX71,LX70,MX71,SX70,YX7#198408-198808

2 WAY,NO.1

main85352-30221iGX71,LX70,SX70198709-198808

2 WAY,NO.2

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481iGX71,MX71..AVT,GT198408-198808

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-14481iGX71,LX70,MX71,SX70,YX7#198408-198808

85355VALVE, WINDSHIELD WASHER HOSE

main85031-12250iGX71,LX70,MX71,SX70,YX70198408-198808

85356PACKING (FOR WINDSHIELD WASHER JAR)

main85356-30221iGX71,LX70,SX70198709-198808

85361HOLDER, WINDSHIELD WASHER

main16611-22010iGX71,LX70,MX71,SX70,YX7#198408-198808

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33299iGX71..4FC..TWC198408-198808

main90099-33299iGX71..4FC..TWC198408-198808

main90446-07001iYX72198408-198808

main90446-07001iGX71,MX71..AVT,GT198408-198808

main90446-07001iYX72198709-198808

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33299iGX71,LX70,MX71,SX70,YX70198408-198504

main90099-33299iGX71,LX70,MX71,SX70,YX7#198504-198808

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013iGX71,LX70,MX71,SX70,YX70198408-198504

main90446-06013iGX71,LX70,MX71,SX70,YX7#198504-198808

9011906110

main90119-06110

9046400200

main90464-00200

9098901037

main90989-01037

9165540616

main91655-40616

9338516012

main93385-16012

9411040600

main94110-40600

20 parts on this diagram · 2 diagrams in section
