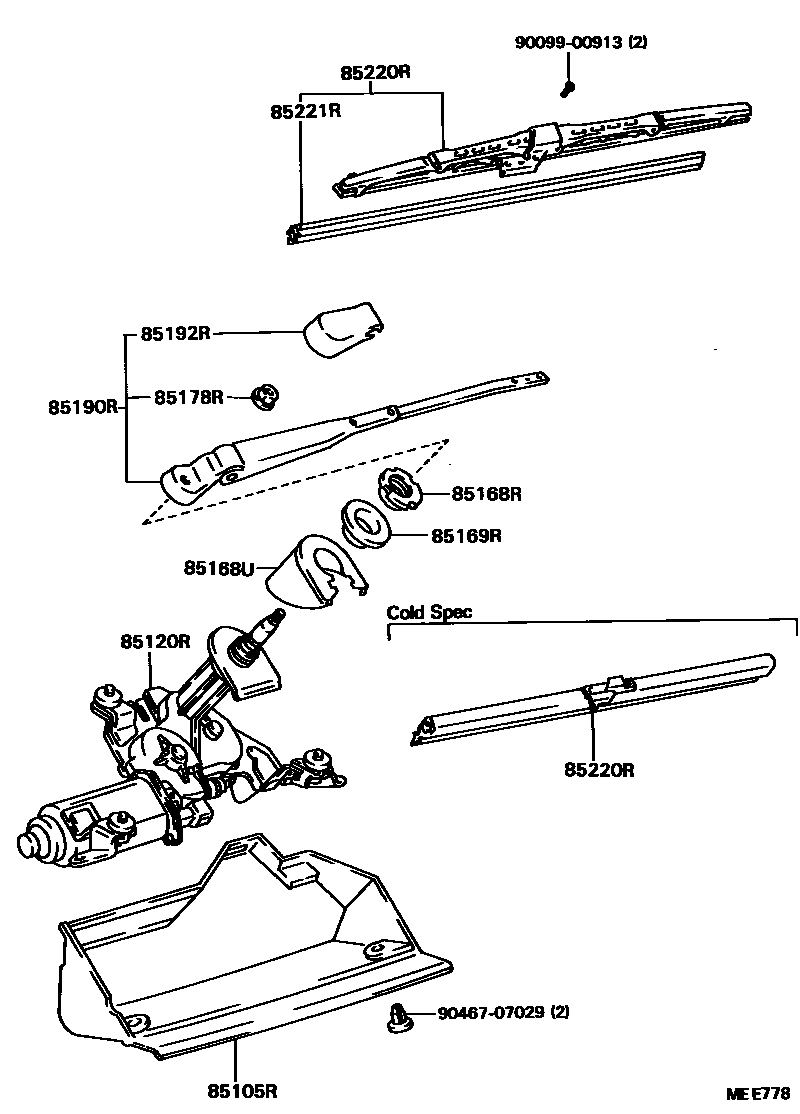

REAR WIPER

85105RPROTECTOR, REAR WIPER

main85105-22030iGX71,MX71..AVT,GT198408-198808

85120RMOTOR AND BRACKET ASSY, REAR WIPER

main85110-22270iGX71,MX71..AVT,GT198408-198804

sub85110-22271

main85110-22271iGX71..AVT,GT198804-198808

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90179-22013iGX71,MX71..AVT,GT198408-198808

85168UCOVER, REAR WIPER

main85168-22270-02iGX71,MX71..AVT,GT198408-198608

MAROON,MAROON,TRIM3#

sub85168-22270

main85168-22270-03iGX71,MX71..AVT,GT198408-198608

GRAY,GRAY,TRIM1#

sub85168-22270

main85168-22270-04iGX71..AVT,GT198608-198808

BLUE,DARK BLUE,TRIM8#

sub85168-22270

main85168-22270-05iGX71,MX71..AVT,GT198408-198608

BEIGE,BEIGE,TRIM4#

sub85168-22270

main85168-22270-12iGX71..AVT,GT198608-198808

MAROON,MAROON,TRIM3#

sub85168-22270

main85168-22270-15iGX71..AVT,GT198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub85168-22270

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main90210-28001iGX71,MX71..AVT,GT198408-198808

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iGX71,MX71..AVT,GT198408-198808

85190RARM ASSY, REAR WIPER

main85190-22470iGX71,MX71..AVT,GT198408-198808

85192RCOVER, REAR WIPER ARM

main85192-14020iGX71,MX71..AVT,GT198408-198808

sub85192-13060

85220RBLADE ASSY, REAR WIPER

main85220-12600iGX71,MX71..AVT,GT198502-198608

sub85220-12601

main85220-12610iGX71..AVT,GT198608-198808

sub85220-12691

main85220-20080iGX71,MX71..AVT,GT198408-198608

WINTER BLADE

sub85220-20H90

main85220-20380iGX71,MX71..AVT198408-198502

sub85220-12601

main85220-90K00iGX71..AVT,GT198608-198808

WINTER BLADE

sub85291-90K00

85221RBLADE, REAR WIPER

main85221-16090iGX71..AVT,GT198608-198808

sub85221-91C01

main85221-91C01iGX71,MX71..AVT,GT198408-198608

sub85214-12H90

9009900913

main90099-00913

9046707029

main90467-07029

12 parts on this diagram · 1 diagram in section
