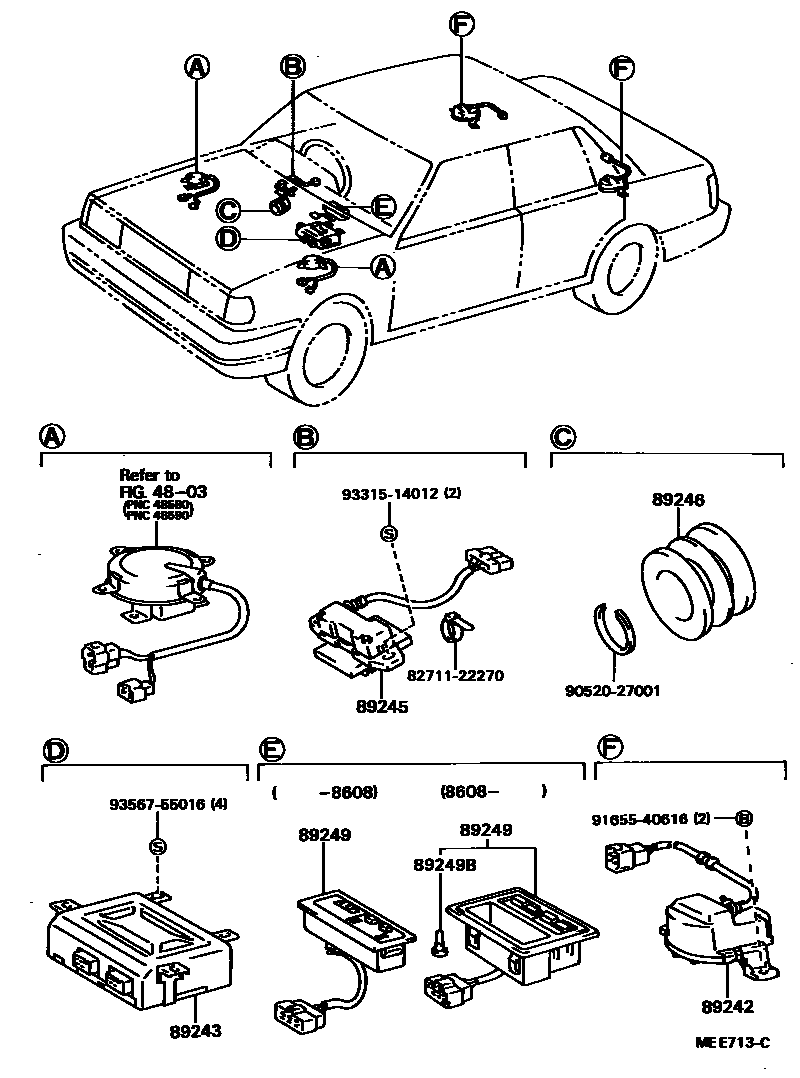

ELECTRONIC MODULATED SUSPENSION

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

89242ACTUATOR, ABSORBER CONTROL, RR

main89242-22010×2iGX71..TWC198408-198808

89243COMPUTER, ABSORBER CONTROL

main89243-22010iGX71..TWC198408-198412

main89243-22011iGX71..TWC198412-198608

main89243-22030iGX71..TWC198608-198808

89245SENSOR, STEERING

main89245-22020iGX71..TWC198408-198808

89246DISC, SENSOR STEERING

main89246-22010iGX71..TWC198408-198808

89249SWITCH, ABSORBER CONTROL

main89249-22010iGX71..TWC198408-198608

main89249-22030iGX71..TWC198608-198808

89249BBULB, ABSORBER CONTROL SWITCH

main84999-10090iGX71..TWC198608-198808

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

9052027001

main90520-27001

9165540616

main91655-40616

9331514012

main93315-14012

9356755016

main93567-55016

12 parts on this diagram · 1 diagram in section
