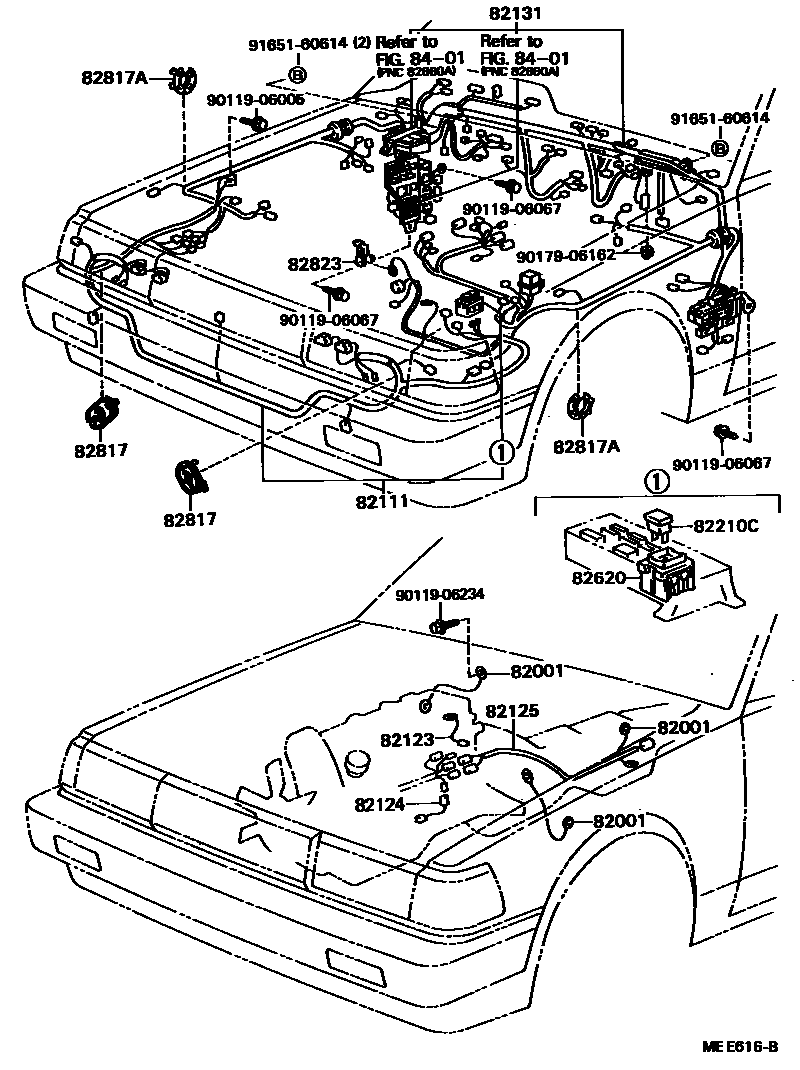

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

82001CABLE, BOND, NO.1

main90980-07109iGX71..EFI,TWT198408-198805

ENGINE-COWL

main90980-07119iGX71,MX71,SX70,YX70198408-198808

CLUTCH-MEMBER

main90980-07200iSX70,YX72198408-198808

ENGINE-COWL

main90980-07252iGX71,SX70..AVT,GT,SXL,XG,XL198408-198808

MISSION-MEMBER

main90980-07308iGX71..TWC198805-198808

ENGINE-COWL

main90980-07309iGX71..EFI,TWT198805-198808

ENGINE-COWL

82111WIRE, ENGINE ROOM MAIN

main82111-22410iGX71..TWC198408-198604

main82111-22411iGX71..4FC..TWC198608-198808

W/ESC

main82111-22420iGX71..EFI198408-198512

main82111-22421iGX71..EFI198512-198608

main82111-22422iGX71..EFI198608-198611

main82111-22423iGX71..EFI198611-198808

main82111-22460iMX71198408-198510

main82111-22470iSX70198408-198608

main82111-22471iSX70198608-198808

main82111-22480iLX70198408-198608

main82111-22481iLX70198608-198808

main82111-22490iYX70198408-198608

main82111-22491iYX72198608-198808

main82111-22610iGX71..TWT198510-198608

main82111-22610iGX71..4FC..TWC198408-198608

W/ESC

main82111-22611iGX71..TWT198608-198609

main82111-22612iGX71..TWT198609-198808

main82111-22690iGX71..TWC198604-198608

main82111-22710iGX71..TWC198608-198808

82123WIRE, ENGINE, NO.3

main82123-14020iSX70198408-198808

82124WIRE, ENGINE, NO.4

main82123-22050iSX70198408-198808

82125WIRE, TRANSMISSION

main82125-22030iGX71,LX70,SX70..5F..(CBR,DSL,TD,TWC,TWT)198408-198808

main82125-22050iYX70198408-198608

main82125-22051iYX72198608-198808

82131WIRE, COWL

main82131-22530iGX71,MX71..TBO,TWC198408-198509

W/*DS

main82131-22531iGX71,MX71..TBO,TWC198509-198608

W/*DS

main82131-22532iGX71..TWC198608-198709

W/*DS

main82131-22533iGX71..TWC198709-198808

W/*DS

main82131-22550iGX71..AVT..EFI198408-198509

W/*DS

main82131-22551iGX71..AVT..EFI198509-198608

W/*DS

main82131-22552iGX71..AVT..EFI198608-198709

W/*DS

main82131-22553iGX71..AVT..EFI198709-198808

W/*DS

main82131-22570iGX71..SXL198408-198509

W/*PW OR FENDER,*RCM

main82131-22571iGX71..SXL198509-198608

main82131-22572iGX71..SXL198608-198709

main82131-22573iGX71..SXL198709-198808

main82131-22580iGX71..SXL198408-198509

main82131-22610iSX70198408-198509

main82131-22611iSX70198509-198608

main82131-22612iSX70198608-198709

main82131-22613iSX70198709-198808

main82131-22630iLX70..TD198408-198501

main82131-22631iLX70..TD198501-198509

main82131-22632iLX70..TD198509-198608

main82131-22633iLX70..TD198608-198709

main82131-22634iLX70..4FC198709-198801

main82131-22635iLX70..4FC198801-198808

main82131-22650iYX70198408-198509

main82131-22651iYX70198509-198608

main82131-22652iYX72198608-198706

main82131-22654iYX72198706-198808

main82131-22680iGX71..TWT198510-198608

W/*AS

main82131-22681iGX71..TWT198608-198709

W/*AS

main82131-22682iGX71..TWT198709-198808

W/*AS

main82131-22700iGX71,MX71..TBO,TWC198408-198509

main82131-22701iGX71,MX71..TBO,TWC198509-198608

W/*AS

main82131-22702iGX71..TWC198608-198709

W/*AS

main82131-22703iGX71..TWC198709-198808

W/*AS

main82131-22720iGX71..AVT..EFI198408-198509

W/*AS

main82131-22721iGX71..AVT..EFI198509-198608

W/*AS

main82131-22722iGX71..AVT..EFI198608-198709

W/*AS

main82131-22723iGX71..AVT..EFI198709-198808

W/*AS

main82131-22740iGX71,MX71..TBO,TWC198408-198509

W/*AS,W/*AD,*HC OR *SMD

main82131-22741iGX71,MX71..TBO,TWC198509-198608

W/*AS,W/*AD,*HC OR *SMD

main82131-22742iGX71..TWC198608-198709

W/*AS,W/*AD,*HC OR *SMD

main82131-22743iGX71..TWC198709-198808

W/*AS,W/*AD,*HC OR *SMD

main82131-22760iGX71..AVT..EFI198408-198509

W/*AS,W/*AD,*HC OR *SMD

main82131-22761iGX71..AVT..EFI198509-198608

W/*AS,W/*AD,*HC OR *SMD

main82131-22762iGX71..AVT..EFI198608-198709

W/*AS,W/*AD,*HC OR *SMD

main82131-22763iGX71..AVT..EFI198709-198808

W/*AS,W/*AD,*HC OR *SMD

main82131-2A110iLX70..DSL198408-198509

main82131-2A111iLX70..DSL198509-198608

main82131-2A112iLX70..DSL198608-198709

main82131-2A113iLX70..DSL198709-198808

main82131-2A140iGX71..4FC..TWC198408-198509

W/ESC & *AS

main82131-2A141iGX71..4FC..TWC198509-198608

W/ESC & *AS

main82131-2A142iGX71..4FC..TWC198608-198709

W/ESC & *AS

main82131-2A143iGX71..4FC..TWC198709-198808

W/ESC & *AS

main82131-2A160iGX71..4FC..TWC198408-198509

W/ESC & *DS

main82131-2A161iGX71..4FC..TWC198509-198608

W/ESC & *DS

main82131-2A162iGX71..4FC..TWC198608-198709

W/ESC & *DS

main82131-2A163iGX71..4FC..TWC198709-198808

W/ESC & *DS

main82131-2A180iGX71..5F..TWT198510-198608

GT-S PACKAGE

main82131-2A340iGX71..TWT198510-198608

W/*DS

main82131-2A341iGX71..TWT198608-198709

W/*DS

main82131-2A342iGX71..TWT198709-198808

W/*DS

main82131-2A520iLX70..5F..TD198709-198801

main82131-2A521iLX70..5F..TD198801-198808

main82131-2C100iGX71..TWC198801-198808

LORDLY

82210CFUSIBLE LINK

main90982-08188iGX71,LX70,MX71,SX70,YX7#198408-198808

main90982-08189iGX71,LX70,MX71,SX70,YX7#198408-198808

main90982-08203iGX71,LX70,SX70,YX72..CBR,DSL,LPG,TD,TWC,TWT198408-198808

main90982-08223iGX71..4FC..TWC198408-198808

main90982-08245iGX71..EFI198512-198808

WIRE TYPE

main90982-08246iGX71..EFI198608-198808

82620BLOCK ASSY, FUSIBLE LINK

main82602-22150iGX71,LX70,SX70,YX72198408-198808

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-22420iGX71,LX70,MX71,SX70,YX7#198408-198808

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-32010iGX71,LX70,MX71,SX70,YX7#198408-198808

82823CAP, TERMINAL, NO.1

main82823-20040iGX71,SX70..CBR,EFI198408-198808

ALTERNATOR(B)TERMINAL

main82823-22050iGX71..TWC198604-198608

ALTERNATOR(B)TERMINAL

main82823-22060iGX71198608-198808

ALTERNATOR(B)TERMINAL

main82823-32020iLX70,MX71198408-198808

ALTERNATOR(B)TERMINAL

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906005

main90119-06005

9011906067

main90119-06067

9011906234

main90119-06234

9017906162

main90179-06162

9165160614

main91651-60614

17 parts on this diagram · 11 diagrams in section
