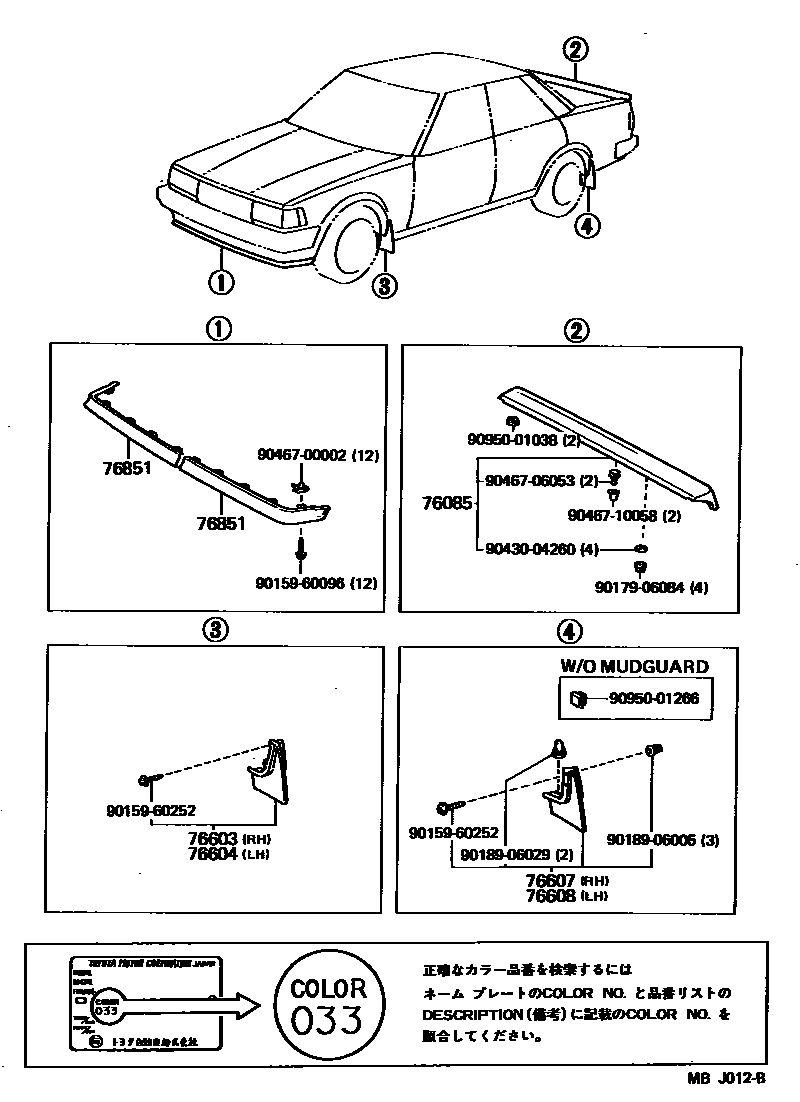

MUDGUARD & SPOILER

76085SPOILER SUB-ASSY, REAR

main76085-91601iGX71..TWC,TWT198508-198808

UNPAINTED

main76085-91602-04iGX71..TWC,TWT198510-198608

BLUE,DARK BLUE METALLIC,2V7

main76085-91602-08iGX71..TWC,TWT198510-198808

SUPER WHITE,SUPER WHITE,040

main76085-91602-18iGX71..TWC,TWT198510-198608

PEARL MICA,PEARL SILHOUETTE,2U9

main76085-91602-28iGX71..TWC,TWT198608-198808

WHITE PEARL MICA,WHITE PEARL MICA,25C

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76603-29055-03iGX71,MX71..AVT,GT198408-198608

SUPER SILVER-M,SUPER SILVER M,150

main76603-29055-04iGX71..AVT,GT198510-198608

DARK BLUE-M,DARK BLUE METALLIC,8C1

main76603-29055-05iGX71..AVT,GT198510-198608

BEIGE-M,BEIGE METALLIC,4E6

main76603-29055-08iSX70..XL198801-198808

XL EXTRA,SUPER WHITE,SUPER WHITE,040

main76603-29055-11iGX71,MX71..AVT198408-198510

BLACK,BLACK,4E6 ,8C1

main76603-29055-12iGX71,MX71..AVT,GT198408-198608

DARK RED,DARK RED,3E9

main76603-29055-14iGX71,MX71..AVT,GT198408-198608

LIGHT BLUE-M,LIGHT BLUE METALLIC,2V7

main76603-29055-15iGX71..TWC,TWT198408-198608

LIGHT BEIGE-M,FINE BEIGE METALLIC,2U9

main76603-29055-18iGX71..AVT,GT198608-198808

WHITE PEARL MICA,PEARL MICA,042 ,25C

main76603-29055-25iGX71..AVT,GT198608-198808

BEIGE-M,BEIGE METALLIC,4G8

main76603-29055-32iGX71..AVT,GT198608-198808

RED MICA,RED MICA,3H3

main76603-29055-33iGX71..AVT,GT198608-198808

SUPER SILVER-M 2,SUPER SILVER 2,166

main76603-29055-44iGX71..AVT,GT198608-198808

BLUE MICA,BLUE MICA,8E3

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76604-29055-03iGX71,MX71..AVT,GT198408-198608

SUPER SILVER-M,SUPER SILVER M,150

main76604-29055-04iGX71..AVT,GT198510-198608

DARK BLUE-M,DARK BLUE METALLIC,8C1

main76604-29055-05iGX71..AVT,GT198510-198608

BEIGE-M,BEIGE,4E6

main76604-29055-08iSX70..XL198801-198808

XL EXTRA,SUPER WHITE,SUPER WHITE,040

main76604-29055-11iGX71,MX71..AVT198408-198510

BLACK,BLACK,4E6 ,8C1

main76604-29055-12iGX71,MX71..AVT,GT198408-198608

DARK RED,DARK RED,3E9

main76604-29055-14iGX71,MX71..AVT,GT198408-198608

LIGHT BLUE-M,LIGHT BLUE METALLIC,2V7

main76604-29055-15iGX71..TWC,TWT198408-198608

LIGHT BEIGE-M,FINE BEIGE METALLIC,2U9

main76604-29055-18iGX71..AVT,GT198608-198808

WHITE PEARL MICA,PEARL MICA,042 ,25C

main76604-29055-25iGX71..AVT,GT198608-198808

BEIGE-M,BEIGE METALLIC,4G8

main76604-29055-32iGX71..AVT,GT198608-198808

RED MICA,RED MICA,3H3

main76604-29055-33iGX71..AVT,GT198608-198808

SUPER SILVER-M 2,SUPER SILVER 2,166

main76604-29055-44iGX71..AVT,GT198608-198808

BLUE MICA,BLUE MICA,8E3

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76607-29055-03iGX71,MX71..AVT,GT198408-198608

SUPER SILVER-M,SUPER SILVER M,150

main76607-29055-04iGX71..AVT,GT198510-198608

DARK BLUE-M,DARK BLUE METALLIC,8C1

main76607-29055-05iGX71..AVT,GT198510-198608

BEIGE-M,BEIGE METALLIC,4E6

main76607-29055-08iSX70..XL198801-198808

XL EXTRA,SUPER WHITE,SUPER WHITE,040

main76607-29055-11iGX71,MX71..AVT198408-198510

BLACK,BLACK,4E6 ,8C1

main76607-29055-12iGX71,MX71..AVT,GT198408-198608

DARK RED,DARK RED,3E9

main76607-29055-14iGX71,MX71..AVT,GT198408-198608

LIGHT BLUE-M,LIGHT BLUE METALLIC,2V7

main76607-29055-15iGX71..TWC,TWT198408-198608

LIGHT BEIGE-M,FINE BEIGE METALLIC,2U9

main76607-29055-18iGX71..AVT,GT198608-198808

WHITE PEARL MICA,PEARL MICA,042 ,25C

main76607-29055-25iGX71..AVT,GT198608-198808

BEIGE-M,BEIGE METALLIC,4G8

main76607-29055-32iGX71..AVT,GT198608-198808

RED MICA,RED MICA,3H3

main76607-29055-33iGX71..AVT,GT198608-198808

SUPER SILVER-M 2,SUPER SILVER 2,166

main76607-29055-44iGX71..AVT,GT198608-198808

BLUE MICA,BLUE MICA,8E3

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76608-29055-03iGX71,MX71..AVT,GT198408-198608

SUPER SILVER-M,SUPER SILVER M,150

main76608-29055-04iGX71..AVT,GT198510-198608

DARK BLUE-M,DARK BLUE METALLIC,8C1

main76608-29055-05iGX71..AVT,GT198510-198608

BEIGE-M,BEIGE METALLIC,4E6

main76608-29055-08iSX70..XL198801-198808

XL EXTRA,SUPER WHITE,SUPER WHITE,040

main76608-29055-11iGX71,MX71..AVT198408-198510

BLACK,BLACK,4E6 ,8C1

main76608-29055-12iGX71,MX71..AVT,GT198408-198608

DARK RED,DARK RED,3E9

main76608-29055-14iGX71,MX71..AVT,GT198408-198608

LIGHT BLUE-M,LIGHT BLUE METALLIC,2V7

main76608-29055-15iGX71..TWC,TWT198408-198608

LIGHT BEIGE-M,FINE BEIGE METALLIC,2U9

main76608-29055-18iGX71..AVT,GT198608-198808

WHITE PEARL MICA,PEARL MICA,042 ,25C

main76608-29055-25iGX71..AVT,GT198608-198808

BEIGE-M,BEIGE METALLIC,4G8

main76608-29055-32iGX71..AVT,GT198608-198808

RED MICA,RED MICA,3H3

main76608-29055-33iGX71..AVT,GT198608-198808

SUPER SILVER-M 2,SUPER SILVER 2,166

main76608-29055-44iGX71..AVT,GT198608-198808

BLUE MICA,BLUE MICA,8E3

76851COVER, FRONT SPOILER

main76851-22020iGX71,MX71..AVT198408-198508

RH

main76851-22040-08iGX71..TWC,TWT198608-198808

RH,SUPER WHITE 2,SUPER WHITE 2,040

main76851-22040-18iGX71..TWC,TWT198608-198808

RH,WHITE PEARL MICA,WHITE PEARL MICA,25C ,042

main76852-22020iGX71,MX71..AVT198408-198508

LH

main76852-22040-08iGX71..TWC,TWT198608-198808

LH,SUPER WHITE 2,SUPER WHITE 2,040

main76852-22040-18iGX71..TWC,TWT198608-198808

LH,WHITE PEARL MICA,WHITE PEARL MICA,25C ,042

9015960096

main90159-60096

9015960252

main90159-60252

9017906084

main90179-06084

9018906005

main90189-06005

9018906029

main90189-06029

9043004260

main90430-04260

9046700002

main90467-00002

9046706053

main90467-06053

9046710058

main90467-10058

9095001038

main90950-01038

9095001266

main90950-01266

17 parts on this diagram · 1 diagram in section
