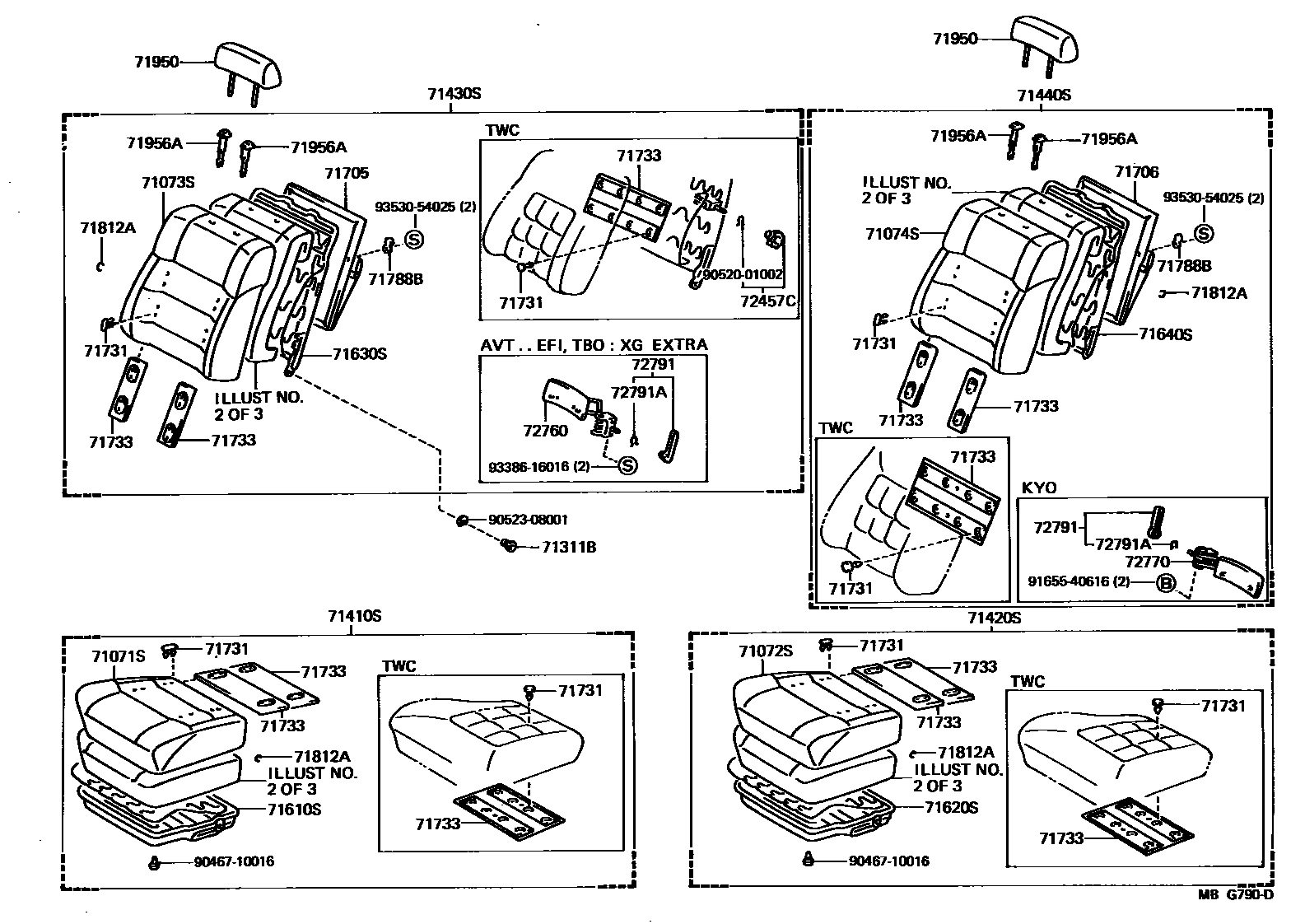

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-2A050-03iLX70,SX70,YX70..KYO198408-198510

PF,GRAY,COOL GRAY,TRIM1#

main71071-2A060-03iLX70,SX70..XL198408-198608

FB,GRAY,COOL GRAY,TRIM1#

main71071-2A060-04iLX70,SX70..XL198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71071-2A060-05iLX70,SX70..XL198408-198608

FB,BEIGE,BEIGE,TRIM4#

main71071-2A060-15iLX70,SX70..XL198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71071-2A071-02iGX71..SXL198608-198808

FB,MAROON,MAROON,TRIM3#

main71071-2A071-04iGX71..SXL198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71071-2A071-05iGX71..SXL198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71071-2A090-02iGX71..TWC198408-198608

FB,MAROON,MAROON,TRIM3#

main71071-2A090-03iGX71..TWC198408-198608

FB,GRAY,COOL GRAY,TRIM1#

main71071-2A090-05iGX71..TWC198408-198608

FB,BEIGE,BEIGE,TRIM4#

main71071-2A091-02iGX71..TWC198608-198808

FB,MAROON,MAROON,TRIM3#

main71071-2A091-04iGX71..TWC198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71071-2A091-05iGX71..TWC198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71071-2A200-03iLX70,SX70,YX70..KYO198510-198608

GRADE PACKAGE,FB,GRAY,COOL GRAY,TRIM1#

main71071-2A200-04iLX70,SX70,YX72..KYO198608-198808

GRADE PACKAGE,FB,BLUE,DARK BLUE,TRIM8#

main71071-2A210-03iLX70,SX70,YX70..KYO198510-198608

PF,GRAY,COOL GRAY,TRIM1#

main71071-2A210-04iSX70..4FC..XL198612-198808

*30,BLUE,DARK BLUE,TRIM8#

main71071-2A210-15iSX70..4FC..XL198612-198808

*30,BEIGE,TRIM4#

main71071-2A231-02iGX71..TWC198608-198808

W/*PSE,FB,MAROON,MAROON,TRIM3#

main71071-2A231-04iGX71..TWC198608-198808

W/*PSE,FB,BLUE,DARK BLUE,TRIM8#

main71071-2A231-05iGX71..TWC198608-198808

W/*PSE,FB,BEIGE,DARK BEIGE,TRIM4#

main71071-2A260-02iLX70,SX70..XG198608-198808

FB,MAROON,MAROON,TRIM3#

main71071-2A260-04iLX70,SX70..XG198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71071-2A260-05iLX70,SX70..XG198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71071-91623-02iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

FB,MAROON,MAROON,TRIM3#; XG EXTRA,FB,MAROON,MAROON,TRIM3#

main71071-91623-03iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

FB,GRAY,COOL GRAY,TRIM1#; XG EXTRA,FB,GRAY,COOL GRAY,TRIM1#

main71071-91623-05iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

FB,BEIGE,BEIGE,TRIM4#; XG EXTRA,FB,BEIGE,BEIGE,TRIM4#

main71071-91623-12iGX71..AVT..EFI; LX70,SX70..XG198510-198608

FB,MAROON,MAROON,TRIM3#; XG EXTRA,FB,MAROON,MAROON,TRIM3#

main71071-91623-13iGX71..AVT..EFI; LX70,SX70..XG198510-198608

FB,GRAY,COOL GRAY,TRIM1#; XG EXTRA,FB,GRAY,COOL GRAY,TRIM1#

main71071-91623-15iGX71..AVT..EFI; LX70,SX70..XG198510-198608

FB,BEIGE,BEIGE,TRIM4#; XG EXTRA,FB,BEIGE,BEIGE,TRIM4#

main71071-91624-02iGX71,LX70,SX70..SXL,XG198408-198608

FB,MAROON,MAROON,TRIM3#

main71071-91624-03iGX71,LX70,SX70..SXL,XG198408-198608

FB,GRAY,COOL GRAY,TRIM1#

main71071-91624-05iGX71,LX70,SX70..SXL,XG198408-198608

FB,BEIGE,BEIGE,TRIM4#

main71071-91625-02iGX71..TWT198510-198608

FB,MAROON,MAROON,TRIM3#

main71071-91625-03iGX71..TWT198510-198608

FB,GRAY,COOL GRAY,TRIM1#

main71071-91625-05iGX71..TWT198510-198608

FB,BEIGE,BEIGE,TRIM4#

main71071-91626-02iSX70..XL198510-198808

XL EXTRA,FB,MAROON,MAROON,TRIM3#

main71071-91627-05iGX71..AVT..EFI198601-198608

LORDLY,FB,BEIGE,BEIGE,TRIM4#

main71071-91628-02iGX71..AVT..EFI; LX70,SX70..XG198608-198808

FB,MAROON,MAROON,TRIM3#; XG EXTRA,FB,MAROON,MAROON,TRIM3#

main71071-91628-04iGX71..AVT..EFI; LX70,SX70..XG198608-198808

FB,BLUE,DARK BLUE,TRIM8#; XG EXTRA,FB,BLUE,DARK BLUE,TRIM8#

main71071-91628-05iGX71..AVT..EFI; LX70,SX70..XG198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#; XG EXTRA,FB,BEIGE,DARK BEIGE,TRIM4#

main71071-91629-02iGX71..TWT198608-198808

FB,MAROON,MAROON,TRIM3#

main71071-91629-04iGX71..TWT198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71071-91629-05iGX71..TWT198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71071-91630-02iGX71..AVT..EFI198801-198808

LORDLY,MAROON,MAROON,TRIM3#

main71071-91630-05iGX71..AVT..EFI198701-198801

LORDLY,FB,BEIGE,BEIGE,TRIM4#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-2A071-02iGX71..SXL198608-198808

FB,MAROON,MAROON,TRIM3#

main71071-2A071-04iGX71..SXL198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71071-2A071-05iGX71..SXL198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71071-2A260-02iLX70,SX70..XG198608-198808

FB,MAROON,MAROON,TRIM3#

main71071-2A260-04iLX70,SX70..XG198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71071-2A260-05iLX70,SX70..XG198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71072-22630-03iLX70,SX70,YX70..KYO198408-198608

PF,GRAY,COOL GRAY,TRIM1#

main71072-22630-04iLX70,SX70,YX72..KYO198608-198808

PF,BLUE,DARK BLUE,TRIM8#

main71072-22630-15iSX70..4FC..XL198612-198808

*30,BEIGE,DARK BEIGE,TRIM4#

main71072-22640-03iLX70,SX70,YX70..KYO; LX70,SX70..XL198408-198608

FB,GRAY,COOL GRAY,TRIM1#; GRADE PACKAGE,FB,GRAY,COOL GRAY,TRIM1#

main71072-22640-04iLX70,SX70,YX72..KYO; LX70,SX70..XL198608-198808

FB,BLUE,DARK BLUE,TRIM8#; GRADE PACKGE,FB,BLUE,DARK BLUE,TRIM8#

main71072-22640-05iLX70,SX70..XL198408-198608

FB,BEIGE,BEIGE,TRIM4#

main71072-22640-15iLX70,SX70..XL198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71072-22670-02iGX71..TWC198408-198608

FB,MAROON,MAROON,TRIM3#

main71072-22670-03iGX71..TWC198408-198608

FB,GRAY,COOL GRAY,TRIM1#

main71072-22670-05iGX71..TWC198408-198608

FB,BEIGE,BEIGE,TRIM4#

main71072-22671-02iGX71..TWC198608-198808

FB,MAROON,MAROON,TRIM3#

main71072-22671-04iGX71..TWC198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71072-22671-05iGX71..TWC198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71072-91601-02iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

FB,MAROON,MAROON,TRIM3#; XG EXTRA,FB,MAROON,MAROON,TRIM3#

main71072-91601-03iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

FB,GRAY,COOL GRAY,TRIM1#; XG EXTRA,FB,GRAY,COOL GRAY,TRIM1#

main71072-91601-05iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

FB,BEIGE,BEIGE,TRIM4#; XG EXTRA,FB,BEIGE,BEIGE,TRIM4#

main71072-91601-12iGX71..AVT..EFI; LX70,SX70..XG198510-198608

FB,MAROON,MAROON,TRIM3#; XG EXTRA,FB,MAROON,MAROON,TRIM3#

main71072-91601-13iGX71..AVT..EFI; LX70,SX70..XG198510-198608

FB,GRAY,COOL GRAY,TRIM1#; XG EXTRA,FB,GRAY,COOL GRAY,TRIM1#

main71072-91601-15iGX71..AVT..EFI; LX70,SX70..XG198510-198608

FB,BEIGE,BEIGE,TRIM4#; XG EXTRA,FB,BEIGE,BEIGE,TRIM4#

main71072-91602-02iGX71,LX70,SX70..SXL,XG198408-198608

FB,MAROON,MAROON,TRIM3#

main71072-91602-03iGX71,LX70,SX70..SXL,XG198408-198608

FB,GRAY,COOL GRAY,TRIM1#

main71072-91602-05iGX71,LX70,SX70..SXL,XG198408-198608

FB,BEIGE,BEIGE,TRIM4#

main71072-91603-02iGX71..TWT198510-198608

FB,MAROON,MAROON,TRIM3#

main71072-91603-03iGX71..TWT198510-198608

FB,GRAY,COOL GRAY,TRIM1#

main71072-91603-05iGX71..TWT198510-198608

FB,BEIGE,BEIGE,TRIM4#

main71072-91604-02iSX70..XL198510-198808

XL EXTRA,FB,MAROON,MAROON,TRIM3#

main71072-91605-05iGX71..AVT..EFI198601-198608

LORDLY,FB,BEIGE,BEIGE,TRIM4#

main71072-91606-02iGX71..AVT..EFI; LX70,SX70..XG198608-198808

FB,MAROON,MAROON,TRIM3#; XG EXTRA,FB,MAROON,MAROON,TRIM3#

main71072-91606-04iGX71..AVT..EFI; LX70,SX70..XG198608-198808

FB,BLUE,DARK BLUE,TRIM8#; XG EXTRA,FB,BLUE,DARK BLUE,TRIM8#

main71072-91606-05iGX71..AVT..EFI; LX70,SX70..XG198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#; XG EXTRA,FB,BEIGE,DARK BEIGE,TRIM4#

main71072-91607-02iGX71..TWT198608-198808

FB,MAROON,MAROON,TRIM3#

main71072-91607-04iGX71..TWT198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71072-91607-05iGX71..TWT198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71072-91609-02iGX71..AVT..EFI198801-198808

LORDLY,FB,MAROON,MAROON,TRIM3#

main71072-91609-05iGX71..AVT..EFI198701-198801

LORDLY,FB,BEIGE,BEIGE,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-2A370-03iLX70,SX70,YX70..KYO198408-198608

PF,GRAY,COOL GRAY,TRIM1#

main71073-2A370-04iLX70,SX70,YX72..KYO198608-198808

PF,BLUE,DARK BLUE,TRIM8#

main71073-2A370-15iSX70..4FC..XL198612-198808

*30,BEIGE,DARK BEIGE,TRIM4#

main71073-2A380-03iLX70,SX70,YX70..KYO; LX70,SX70..XL198408-198608

FB,GRAY,COOL GRAY,TRIM1#; GRADE PACKAGE,FB,GRAY,COOL GRAY,TRIM1#

main71073-2A380-04iLX70,SX70,YX72..KYO; LX70,SX70..XL198608-198808

FB,BLUE,DARK BLUE,TRIM8#; GRADE PACKAGE,FB,BLUE,DARK BLUE,TRIM8#

main71073-2A380-05iLX70,SX70..XL198408-198608

FB,BEIGE,BEIGE,TRIM4#

main71073-2A380-15iLX70,SX70..XL198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71073-2A391-02iGX71..SXL198608-198808

FB,MAROON,MAROON,TRIM3#

main71073-2A391-04iGX71..SXL198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71073-2A391-05iGX71..SXL198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71073-2A410-02iGX71..TWC198408-198608

FB,MAROON,MAROON,TRIM3#

main71073-2A410-03iGX71..TWC198408-198608

FB,GRAY,COOL GRAY,TRIM1#

main71073-2A410-05iGX71..TWC198408-198608

FB,BEIGE,BEIGE,TRIM4#

main71073-2A411-02iGX71..TWC198608-198808

FB,MAROON,MAROON,TRIM3#

main71073-2A411-04iGX71..TWC198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71073-2A411-05iGX71..TWC198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71073-2A530-02iGX71..TWC198608-198808

W/*PSE,FB,MAROON,MAROON,TRIM3#

main71073-2A530-04iGX71..TWC198608-198808

W/*PSE,FB,BLUE,DARK BLUE,TRIM8#

main71073-2A530-05iGX71..TWC198608-198808

W/*PSE,FB,BEIGE,DARK BEIGE,TRIM4#

main71073-2A560-02iLX70,SX70..XG198608-198808

FB,MAROON,MAROON,TRIM3#

main71073-2A560-04iLX70,SX70..XG198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71073-2A560-05iLX70,SX70..XG198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71073-91638-02iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

FB,MAROON,MAROON,TRIM3#; XG EXTRA,FB,MAROON,MAROON,TRIM3#

main71073-91638-03iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

FB,GRAY,COOL GRAY,TRIM1#; XG EXTRA,FB,GRAY,COOL GRAY,TRIM1#

main71073-91638-05iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

FB,BEIGE,BEIGE,TRIM4#; XG EXTRA,FB,BEIGE,BEIGE,TRIM4#

main71073-91638-12iGX71..AVT..EFI; LX70,SX70..XG198510-198608

FB,MAROON,MAROON,TRIM3#; XG EXTRA,FB,MAROON,MAROON,TRIM3#

main71073-91638-13iGX71..AVT..EFI; LX70,SX70..XG198510-198608

FB,GRAY,COOL GRAY,TRIM1#; XG EXTRA,FB,GRAY,COOL GRAY,TRIM1#

main71073-91638-15iGX71..AVT..EFI; LX70,SX70..XG198510-198608

FB,BEIGE,BEIGE,TRIM4#; XG EXTRA,FB,BEIGE,BEIGE,TRIM4#

main71073-91639-02iGX71,LX70,SX70..SXL,XG198408-198608

FB,MAROON,MAROON,TRIM3#

main71073-91639-03iGX71,LX70,SX70..SXL,XG198408-198608

FB,GRAY,COOL GRAY,TRIM1#

main71073-91639-05iGX71,LX70,SX70..SXL,XG198408-198608

FB,BEIGE,BEIGE,TRIM4#

main71073-91640-02iGX71..TWT198510-198608

FB,MAROON,MAROON,TRIM3#

main71073-91640-03iGX71..TWT198510-198608

FB,GRAY,COOL GRAY,TRIM1#

main71073-91640-04iGX71..TWT198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71073-91640-05iGX71..TWT198510-198608

FB,BEIGE,BEIGE,TRIM4#

main71073-91640-12iGX71..TWT198608-198808

FB,MAROON,MAROON,TRIM3#

main71073-91640-15iGX71..TWT198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71073-91642-02iSX70..XL198510-198808

XL EXTRA,FB,MAROON,MAROON,TRIM3#

main71073-91643-05iGX71..AVT..EFI198601-198608

LORDLY,FB,BEIGE,BEIGE,TRIM4#

main71073-91644-02iGX71..AVT..EFI; LX70,SX70..XG198608-198808

FB,MAROON,MAROON,TRIM3#; XG EXTRA,FB,MAROON,MAROON,TRIM3#

main71073-91644-04iGX71..AVT..EFI; LX70,SX70..XG198608-198808

FB,BLUE,DARK BLUE,TRIM8#; XG EXTRA,FB,BLUE,DARK BLUE,TRIM8#

main71073-91644-05iGX71..AVT..EFI; LX70,SX70..XG198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#; XG EXTRA,FB,BEIGE,DARK BEIGE,TRIM4#

main71073-91645-05iGX71..AVT..EFI198701-198705

LORDLY,FB,BEIGE,BEIGE,TRIM4#

main71073-91646-02iGX71..AVT..EFI198801-198808

LORDLY,FB,MAROON,MAROON,TRIM3#

main71073-91646-05iGX71..AVT..EFI198705-198801

LORDLY,FB,BEIGE,BEIGE,TRIM4#

main71073-91647-02iGX71..TWC198705-198808

LORDLY,W/*PSE,FB,MAROON,MAROON,TRIM3#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-2A391-02iGX71..SXL198608-198808

FB,MAROON,MAROON,TRIM3#

main71073-2A391-04iGX71..SXL198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71073-2A391-05iGX71..SXL198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71073-2A411-02iGX71..TWC198608-198808

FB,MAROON,MAROON,TRIM3#

main71073-2A411-04iGX71..TWC198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71073-2A411-05iGX71..TWC198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71073-2A560-02iLX70,SX70..XG198608-198808

FB,MAROON,MAROON,TRIM3#

main71073-2A560-04iLX70,SX70..XG198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71073-2A560-05iLX70,SX70..XG198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71073-91640-02iGX71..TWT198510-198608

FB,MAROON,MAROON,TRIM3#

main71073-91640-03iGX71..TWT198510-198608

FB,GRAY,COOL GRAY,TRIM1#

main71073-91640-04iGX71..TWT198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71073-91640-05iGX71..TWT198510-198608

FB,BEIGE,BEIGE,TRIM4#

main71073-91640-12iGX71..TWT198608-198808

FB,MAROON,MAROON,TRIM3#

main71073-91640-15iGX71..TWT198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71074-22870-03iLX70,SX70,YX70..KYO198408-198608

PF,GRAY,COOL GRAY,TRIM1#

main71074-22870-04iLX70,SX70,YX72..KYO198608-198808

PF,BLUE,DARK BLUE,TRIM8#

main71074-22870-15iSX70..4FC..XL198612-198808

*30,DARK BEIGE

main71074-22880-03iLX70,SX70,YX70..KYO; LX70,SX70..XL198408-198608

FB,GRAY,COOL GRAY,TRIM1#; GRADE PACKAGE,FB,GRAY,COOL GRAY,TRIM1#

main71074-22880-04iLX70,SX70,YX72..KYO; LX70,SX70..XL198608-198808

FB,BLUE,DARK BLUE,TRIM8#; GRADE PACKAGE,FB,BLUE,DARK BLUE,TRIM8#

main71074-22880-05iLX70,SX70..XL198408-198608

FB,BEIGE,BEIGE,TRIM4#

main71074-22880-15iLX70,SX70..XL198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71074-2A020-02iGX71..TWC198408-198608

FB,MAROON,MAROON,TRIM3#

main71074-2A020-03iGX71..TWC198408-198608

FB,GRAY,COOL GRAY,TRIM1#

main71074-2A020-05iGX71..TWC198408-198608

FB,BEIGE,BEIGE,TRIM4#

main71074-91617-02iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

FB,MAROON,MAROON,TRIM3#; XG EXTRA,FB,MAROON,MAROON,TRIM3#

main71074-91617-03iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

FB,GRAY,COOL GRAY,TRIM1#; XG EXTRA,FB,GRAY,COOL GRAY,TRIM1#

main71074-91617-05iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

FB,BEIGE,BEIGE,TRIM4#; XG EXTRA,FB,BEIGE,BEIGE,TRIM4#

main71074-91617-12iGX71..AVT..EFI; LX70,SX70..XG198510-198608

FB,MAROON,MAROON,TRIM3#; XG EXTRA,FB,MAROON,MAROON,TRIM3#

main71074-91617-13iGX71..AVT..EFI; LX70,SX70..XG198510-198608

FB,GRAY,COOL GRAY,TRIM1#; XG EXTRA,FB,GRAY,COOL GRAY,TRIM1#

main71074-91617-15iGX71..AVT..EFI; LX70,SX70..XG198510-198608

FB,BEIGE,BEIGE,TRIM4#; XG EXTRA,FB,BEIGE,BEIGE,TRIM4#

main71074-91618-02iGX71,LX70,SX70..SXL,XG198408-198608

FB,MAROON,MAROON,TRIM3#

main71074-91618-03iGX71,LX70,SX70..SXL,XG198408-198608

FB,GRAY,COOL GRAY,TRIM1#

main71074-91618-05iGX71,LX70,SX70..SXL,XG198408-198608

FB,BEIGE,BEIGE,TRIM4#

main71074-91620-02iSX70..XL198510-198808

XL EXTRA,FB,MAROON,MAROON,TRIM3#

main71074-91621-05iGX71..AVT..EFI198601-198608

LORDLY,FB,BEIGE,BEIGE,TRIM4#

main71074-91622-02iGX71..AVT..EFI; LX70,SX70..XG198608-198808

FB,MAROON,MAROON,TRIM3#; XG EXTRA,MAROON,MAROON,TRIM3#

main71074-91622-04iGX71..AVT..EFI; LX70,SX70..XG198608-198808

FB,BLUE,DARK BLUE,TRIM8#; XG EXTRA,BLUE,DARK BLUE,TRIM8#

main71074-91622-05iGX71..AVT..EFI; LX70,SX70..XG198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#; XG EXTRA,BEIGE,DARK BEIGE,TRIM4#

main71074-91623-05iGX71..AVT..EFI198701-198705

LORDLY,FB,BEIGE,BEIGE,TRIM4#

main71074-91625-02iGX71..TWC198705-198808

LORDLY,FB,MAROON,MAROON,TRIM3#

main71074-91625-05iGX71..AVT..EFI198705-198801

LORDLY,FB,BEIGE,TRIM4#

71311BBUSH (FOR FRONT SEAT HINGE PIN)

main90386-12027×2iGX71,LX70,MX71,SX70,YX7#198408-198808

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-2A200-03iLX70,SX70,YX70..KYO198408-198510

PF,GRAY,COOL GRAY,TRIM1#

main71410-2A210-03iLX70,SX70..XL198408-198608

FB,GRAY,COOL GRAY,TRIM1#

main71410-2A210-04iLX70,SX70..XL198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71410-2A210-05iLX70,SX70..XL198408-198608

FB,BEIGE,BEIGE,TRIM4#

main71410-2A210-15iLX70,SX70..XL198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71410-2A221-02iGX71..SXL198608-198808

FB,MAROON,MAROON,TRIM3#

main71410-2A221-04iGX71..SXL198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71410-2A221-05iGX71..SXL198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71410-2A240-02iGX71..TWC198408-198608

FB,MAROON,MAROON,TRIM3#

main71410-2A240-03iGX71..TWC198408-198608

FB,GRAY,COOL GRAY,TRIM1#

main71410-2A240-05iGX71..TWC198408-198608

FB,BEIGE,BEIGE,TRIM4#

main71410-2A241-02iGX71..TWC198608-198808

FB,MAROON,MAROON,TRIM3#

main71410-2A241-04iGX71..TWC198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71410-2A241-05iGX71..TWC198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71410-2A380-03iLX70,SX70,YX70..KYO198510-198608

GRADE PACKAGE,FB,GRAY,COOL GRAY,TRIM1#

main71410-2A380-04iLX70,SX70,YX72..KYO198608-198808

GRADE PACKAGE,FB,BLUE,DARK BLUE,TRIM8#

main71410-2A400-03iLX70,SX70,YX70..KYO198510-198608

PF,GRAY,COOL GRAY,TRIM1#

main71410-2A400-04iLX70,SX70,YX72..KYO198608-198808

PF,BLUE,DARK BLUE,TRIM8#

main71410-2A400-15iSX70..4FC..XL198612-198808

*30

main71410-2A420-02iLX70,SX70..XG198608-198808

FB,MAROON,MAROON,TRIM3#

main71410-2A420-04iLX70,SX70..XG198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71410-2A420-05iLX70,SX70..XG198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71410-2A431-02iGX71..TWC198608-198808

W/*PSE,FB,MAROON,MAROON,TRIM3#

main71410-2A431-04iGX71..TWC198608-198808

W/*PSE,FB,BLUE,DARK BLUE,TRIM8#

main71410-2A431-05iGX71..TWC198608-198808

W/*PSE,FB,BEIGE,DARK BEIGE,TRIM4#

main71410-91628-02iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

FB,MAROON,MAROON,TRIM3#; XG EXTRA,FB,MAROON,MAROON,TRIM3#

main71410-91628-03iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

FB,GRAY,COOL GRAY,TRIM1#; XG EXTRA,FB,GRAY,COOL GRAY,TRIM1#

main71410-91628-05iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

FB,BEIGE,BEIGE,TRIM4#; XG EXTRA,FB,BEIGE,BEIGE,TRIM4#

main71410-91628-12iGX71..AVT..EFI; LX70,SX70..XG198510-198608

FB,MAROON,MAROON,TRIM3#; XG EXTRA,FB,MAROON,MAROON,TRIM3#

main71410-91628-13iGX71..AVT..EFI; LX70,SX70..XG198510-198608

FB,GRAY,COOL GRAY,TRIM1#; XG EXTRA,FB,GRAY,COOL GRAY,TRIM1#

main71410-91628-15iGX71..AVT..EFI; LX70,SX70..XG198510-198608

FB,BEIGE,BEIGE,TRIM4#; XG EXTRA,FB,BEIGE,BEIGE,TRIM4#

main71410-91629-02iGX71,LX70,SX70..SXL,XG198408-198608

FB,MAROON,MAROON,TRIM3#

main71410-91629-03iGX71,LX70,SX70..SXL,XG198408-198608

FB,GRAY,COOL GRAY,TRIM1#

main71410-91629-05iGX71,LX70,SX70..SXL,XG198408-198608

FB,BEIGE,BEIGE,TRIM4#

main71410-91630-02iGX71..TWT198510-198608

FB,MAROON,MAROON,TRIM3#

main71410-91630-03iGX71..TWT198510-198608

FB,GRAY,COOL GRAY,TRIM1#

main71410-91630-05iGX71..TWT198510-198608

FB,BEIGE,BEIGE,TRIM4#

main71410-91631-02iSX70..XL198510-198808

XL EXTRA,FB,MAROON,MAROON,TRIM3#

main71410-91633-02iGX71..AVT..EFI; LX70,SX70..XG198608-198808

FB,MAROON,MAROON,TRIM3#; XG EXTRA,FB,MAROON,MAROON,TRIM3#

main71410-91633-04iGX71..AVT..EFI; LX70,SX70..XG198608-198808

FB,BLUE,DARK BLUE,TRIM8#; XG EXTRA,FB,BLUE,DARK BLUE,TRIM8#

main71410-91633-05iGX71..AVT..EFI; LX70,SX70..XG198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#; XG EXTRA,FB,BEIGE,DARK BEIGE,TRIM4#

main71410-91634-02iGX71..TWT198608-198808

FB,MAROON,MAROON,TRIM3#

main71410-91634-04iGX71..TWT198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71410-91634-05iGX71..TWT198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71410-2A200-03iLX70,SX70,YX70..KYO198603-198608

FB,GRAY,COOL GRAY,TRIM1#

main71410-2A210-03iLX70,SX70,YX70..KYO198603-198608

GRADE PACKAGE,FB,GRAY,COOL GRAY,TRIM1#

main71410-2A210-05iLX70,SX70..XL198603-198608

FB,BEIGE,BEIGE,TRIM4#

main71410-2A221-02iGX71..SXL198608-198808

FB,MAROON,MAROON,TRIM3#

main71410-2A221-04iGX71..SXL198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71410-2A221-05iGX71..SXL198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71410-2A420-02iLX70,SX70..XG198608-198808

FB,MAROON,MAROON,TRIM3#

main71410-2A420-04iLX70,SX70..XG198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71410-2A420-05iLX70,SX70..XG198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71420-22780-03iLX70,SX70,YX70..KYO198408-198603

PF,GRAY,COOL GRAY,TRIM1#

main71420-22780-04iSX70..4FC..XL198612-198808

*30,DARK BLUE

main71420-22780-15iSX70..4FC..XL198612-198808

*30,DARK BEIGE

main71420-22790-03iLX70,SX70,YX70..KYO; LX70,SX70..XL198408-198603

FB,GRAY,COOL GRAY,TRIM1#; GRADE PACKAGE,FB,GRAY,COOL GRAY,TRIM1#

main71420-22790-04iLX70,SX70,YX72..KYO; LX70,SX70..XL198608-198808

FB,BLUE,DARK BLUE,TRIM8#; GRADE PACKAGE,FB,BLUE,DARK BLUE,TRIM8#

main71420-22790-05iLX70,SX70..XL198408-198603

FB,BEIGE,BEIGE,TRIM4#

main71420-22790-15iLX70,SX70..XL198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71420-22820-02iGX71..TWC198408-198608

FB,MAROON,MAROON,TRIM3#

main71420-22820-03iGX71..TWC198408-198608

FB,GRAY,COOL GRAY,TRIM1#

main71420-22820-05iGX71..TWC198408-198608

FB,BEIGE,BEIGE,TRIM4#

main71420-22821-02iGX71..TWC198608-198808

FB,MAROON,MAROON,TRIM3#

main71420-22821-04iGX71..TWC198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71420-22821-05iGX71..TWC198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71420-91614-02iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

FB,MAROON,MAROON,TRIM3#; XG EXTRA,FB,MAROON,MAROON,TRIM3#

main71420-91614-03iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

FB,GRAY,COOL GRAY,TRIM1#; XG EXTRA,FB,GRAY,COOL GRAY,TRIM1#

main71420-91614-05iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

FB,BEIGE,BEIGE,TRIM4#; XG EXTRA,FB,BEIGE,BEIGE,TRIM4#

main71420-91614-12iGX71..AVT..EFI; LX70,SX70..XG198510-198608

FB,MAROON,MAROON,TRIM3#; XG EXTRA,FB,MAROON,MAROON,TRIM3#

main71420-91614-13iGX71..AVT..EFI; LX70,SX70..XG198510-198608

FB,GRAY,COOL GRAY,TRIM1#; XG EXTRA,FB,GRAY,COOL GRAY,TRIM1#

main71420-91614-15iGX71..AVT..EFI; LX70,SX70..XG198510-198608

FB,BEIGE,BEIGE,TRIM4#; XG EXTRA,FB,BEIGE,BEIGE,TRIM4#

main71420-91615-02iGX71,LX70,SX70..SXL,XG198408-198608

FB,MAROON,MAROON,TRIM3#

main71420-91615-03iGX71,LX70,SX70..SXL,XG198408-198608

FB,GRAY,COOL GRAY,TRIM1#

main71420-91615-05iGX71,LX70,SX70..SXL,XG198408-198608

FB,BEIGE,BEIGE,TRIM4#

main71420-91616-02iGX71..TWT198510-198608

FB,MAROON,MAROON,TRIM3#

main71420-91616-03iGX71..TWT198510-198608

FB,GRAY,COOL GRAY,TRIM1#

main71420-91616-05iGX71..TWT198510-198608

FB,BEIGE,BEIGE,TRIM4#

main71420-91617-02iSX70..XL198510-198808

XL EXTRA,FB,MAROON,MAROON,TRIM3#

main71420-91619-02iGX71..AVT..EFI; LX70,SX70..XG198608-198808

FB,MAROON,MAROON,TRIM3#; XG EXTRA,MAROON,MAROON,TRIM3#

main71420-91619-04iGX71..AVT..EFI; LX70,SX70..XG198608-198808

FB,BLUE,DARK BLUE,TRIM8#; XG EXTRA,BLUE,DARK BLUE,TRIM8#

main71420-91619-05iGX71..AVT..EFI; LX70,SX70..XG198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#; XG EXTRA,BEIGE,DARK BEIGE,TRIM4#

main71420-91621-02iGX71..TWT198608-198808

FB,MAROON,MAROON,TRIM3#

main71420-91621-04iGX71..TWT198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71420-91621-05iGX71..TWT198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-2A500-03iLX70,SX70,YX70..KYO198408-198608

PF,GRAY,COOL GRAY,TRIM1#

main71430-2A500-04iLX70,SX70,YX72..KYO198608-198808

PF,BLUE,DARK BLUE,TRIM8#

main71430-2A500-15iSX70..4FC..XL198612-198808

*30,BEIGE,DARK BEIGE,TRIM4#

main71430-2A510-03iLX70,SX70,YX70..KYO; LX70,SX70..XL198408-198608

FB,GRAY,COOL GRAY,TRIM1#; GRADE PACKAGE,FB,GRAY,COOL GRAY,TRIM1#

main71430-2A510-04iLX70,SX70,YX72..KYO; LX70,SX70..XL198608-198808

FB,BLUE,DARK BLUE,TRIM8#; GRADE PACKAGE,FB,BLUE,DARK BLUE,TRIM8#

main71430-2A510-05iLX70,SX70..XL198408-198608

FB,BEIGE,BEIGE,TRIM4#

main71430-2A510-15iLX70,SX70..XL198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71430-2A540-02iGX71..TWC198408-198608

FB,MAROON,MAROON,TRIM3#

main71430-2A540-03iGX71..TWC198408-198608

FB,GRAY,COOL GRAY,TRIM1#

main71430-2A540-05iGX71..TWC198408-198608

FB,BEIGE,BEIGE,TRIM4#

main71430-2A541-02iGX71..TWC198608-198808

FB,MAROON,MAROON,TRIM3#

main71430-2A541-04iGX71..TWC198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71430-2A541-05iGX71..TWC198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71430-2A641-02iGX71..SXL198608-198808

FB,MAROON,MAROON,TRIM3#

main71430-2A641-04iGX71..SXL198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71430-2A641-05iGX71..SXL198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71430-2A730-02iLX70,SX70..XG198608-198808

FB,MAROON,MAROON,TRIM3#

main71430-2A730-04iLX70,SX70..XG198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71430-2A730-05iLX70,SX70..XG198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71430-2A740-02iGX71..TWC198608-198808

W/*PSE,FB,MAROON,MAROON,TRIM3#

main71430-2A740-04iGX71..TWC198608-198808

W/*PSE,FB,BLUE,DARK BLUE,TRIM8#

main71430-2A740-05iGX71..TWC198608-198808

W/*PSE,FB,BEIGE,DARK BEIGE,TRIM4#

main71430-91674-02iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

FB,MAROON,MAROON,TRIM3#; XG EXTRA,FB,MAROON,MAROON,TRIM3#

main71430-91674-03iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

FB,GRAY,COOL GRAY,TRIM1#; XG EXTRA,FB,GRAY,COOL GRAY,TRIM1#

main71430-91674-05iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

FB,BEIGE,BEIGE,TRIM4#; XG EXTRA,FB,BEIGE,BEIGE,TRIM4#

main71430-91674-12iGX71..AVT..EFI; LX70,SX70..XG198510-198608

FB,MAROON,MAROON,TRIM3#; XG EXTRA,FB,MAROON,MAROON,TRIM3#

main71430-91674-13iGX71..AVT..EFI; LX70,SX70..XG198510-198608

FB,GRAY,COOL GRAY,TRIM1#; XG EXTRA,FB,GRAY,COOL GRAY,TRIM1#

main71430-91674-15iGX71..AVT..EFI; LX70,SX70..XG198510-198608

FB,BEIGE,BEIGE,TRIM4#; XG EXTRA,FB,BEIGE,BEIGE,TRIM4#

main71430-91675-02iGX71,LX70,SX70..SXL,XG198408-198608

FB,MAROON,MAROON,TRIM3#

main71430-91675-03iGX71,LX70,SX70..SXL,XG198408-198608

FB,GRAY,COOL GRAY,TRIM1#

main71430-91675-05iGX71,LX70,SX70..SXL,XG198408-198608

FB,BEIGE,BEIGE,TRIM4#

main71430-91676-02iGX71..TWT198510-198608

FB,MAROON,MAROON,TRIM3#

main71430-91676-03iGX71..TWT198510-198608

FB,GRAY,COOL GRAY,TRIM1#

main71430-91676-05iGX71..TWT198510-198608

FB,BEIGE,BEIGE,TRIM4#

main71430-91678-02iSX70..XL198510-198808

XL EXTRA,FB,MAROON,MAROON,TRIM3#

main71430-91680-02iGX71..AVT..EFI; LX70,SX70..XG198608-198808

FB,MAROON,MAROON,TRIM3#; XG EXTRA,FB,MAROON,MAROON,TRIM3#

main71430-91680-04iGX71..AVT..EFI; LX70,SX70..XG198608-198808

FB,BLUE,DARK BLUE,TRIM8#; XG EXTRA,FB,BLUE,DARK BLUE,TRIM8#

main71430-91680-05iGX71..AVT..EFI; LX70,SX70..XG198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#; XG EXTRA,FB,BEIGE,DARK BEIGE,TRIM4#

main71430-91681-02iGX71..TWT198608-198808

FB,MAROON,MAROON,TRIM3#

main71430-91681-04iGX71..TWT198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71430-91681-05iGX71..TWT198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-2A410-03iLX70,SX70,YX70..KYO198408-198510

PF,GRAY,COOL GRAY,TRIM1#

main71440-2A420-03iLX70,SX70..XL198408-198608

FB,GRAY,COOL GRAY,TRIM1#

main71440-2A420-04iLX70,SX70..XL198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71440-2A420-05iLX70,SX70..XL198408-198608

FB,BEIGE,BEIGE,TRIM4#

main71440-2A420-15iLX70,SX70..XL198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71440-2A450-02iGX71..TWC198408-198608

FB,MAROON,MAROON,TRIM3#

main71440-2A450-03iGX71..TWC198408-198608

FB,GRAY,COOL GRAY,TRIM1#

main71440-2A450-05iGX71..TWC198408-198608

FB,BEIGE,BEIGE,TRIM4#

main71440-2A451-02iGX71..TWC198608-198808

FB,MAROON,MAROON,TRIM3#

main71440-2A451-04iGX71..TWC198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71440-2A451-05iGX71..TWC198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71440-2A561-02iGX71..SXL198608-198808

FB,MAROON,MAROON,TRIM3#

main71440-2A561-04iGX71..SXL198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71440-2A561-05iGX71..SXL198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71440-2A620-03iLX70,SX70,YX70..KYO198510-198608

PF,GRAY,COOL GRAY,TRIM1#

main71440-2A620-04iLX70,SX70,YX72..KYO198608-198808

PF,BLUE,DARK BLUE,TRIM8#

main71440-2A620-15iSX70..4FC..XL198612-198808

*30,BEIGE,TRIM4#

main71440-2A630-03iLX70,SX70,YX70..KYO198510-198608

GRADE PACKAGE,FB,GRAY,COOL GRAY,TRIM1#

main71440-2A630-04iLX70,SX70,YX72..KYO198608-198808

GRADE PACKAGE,FB,BLUE,DARK BLUE,TRIM8#

main71440-2A680-02iLX70,SX70..XG198608-198808

FB,MAROON,MAROON,TRIM3#

main71440-2A680-04iLX70,SX70..XG198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71440-2A680-05iLX70,SX70..XG198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#

main71440-91648-02iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

FB,MAROON,MAROON,TRIM3#; XG EXTRA,FB,MAROON,MAROON,TRIM3#

main71440-91648-03iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

FB,GRAY,COOL GRAY,TRIM1#; XG EXTRA,FB,GRAY,COOL GRAY,TRIM1#

main71440-91648-05iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

FB,BEIGE,BEIGE,TRIM4#; XG EXTRA,FB,BEIGE,BEIGE,TRIM4#

main71440-91648-12iGX71..AVT..EFI; LX70,SX70..XG198510-198608

FB,MAROON,MAROON,TRIM3#; XG EXTRA,FB,MAROON,MAROON,TRIM3#

main71440-91648-13iGX71..AVT..EFI; LX70,SX70..XG198510-198608

FB,GRAY,COOL GRAY,TRIM1#; XG EXTRA,FB,GRAY,COOL GRAY,TRIM1#

main71440-91648-15iGX71..AVT..EFI; LX70,SX70..XG198510-198608

FB,BEIGE,BEIGE,TRIM4#; XG EXTRA,FB,BEIGE,BEIGE,TRIM4#

main71440-91649-02iGX71,LX70,SX70..SXL,XG198408-198608

FB,MAROON,MAROON,TRIM3#

main71440-91649-03iGX71,LX70,SX70..SXL,XG198408-198608

FB,GRAY,COOL GRAY,TRIM1#

main71440-91649-05iGX71,LX70,SX70..SXL,XG198408-198608

FB,BEIGE,BEIGE,TRIM4#

main71440-91650-02iGX71..TWT198510-198608

FB,MAROON,MAROON,TRIM3#

main71440-91650-03iGX71..TWT198510-198608

FB,GRAY,COOL GRAY,TRIM1#

main71440-91650-04iGX71..TWT198608-198808

FB,BLUE,DARK BLUE,TRIM8#

main71440-91650-05iGX71..TWT198510-198608

FB,BEIGE,BEIGE,TRIM4#

main71440-91650-12iGX71..TWT198608-198808

FB,BEIGE,MAROON,TRIM4#

main71440-91650-15iGX71..TWT198608-198808

FB,MAROON,DARK BEIGE,TRIM3#

main71440-91652-02iSX70..XL198510-198808

XL EXTRA,FB,MAROON,MAROON,TRIM3#

main71440-91654-02iGX71..AVT..EFI; LX70,SX70..XG198608-198808

FB,MAROON,MAROON,TRIM3#; XG EXTRA,MAROON,MAROON,TRIM3#

main71440-91654-04iGX71..AVT..EFI; LX70,SX70..XG198608-198808

FB,BLUE,DARK BLUE,TRIM8#; XG EXTRA,BLUE,DARK BLUE,TRIM8#

main71440-91654-05iGX71..AVT..EFI; LX70,SX70..XG198608-198808

FB,BEIGE,DARK BEIGE,TRIM4#; XG EXTRA,BEIGE,DARK BEIGE,TRIM4#

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-22250iGX71,MX71..AVT; LX70,SX70..XG198408-198601

XG EXTRA

main71610-22270iGX71..AVT198601-198808

main71610-22280iGX71,LX70,SX70,YX70..KYO,SXL,XG,XL198408-198510

main71610-22310iSX70..4FC..XL198612-198808

*30

main71610-22320iGX71..TWC198608-198808

W/*PSE

main71610-91608iGX71..TWT198510-198608

main71610-91609iGX71..TWT198608-198808

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71610-22280iGX71,LX70,SX70,YX7#..KYO,SXL,XG,XL198408-198808

main71610-22290iGX71,MX71..AVT198408-198808

main71620-91605iGX71..TWT198510-198808

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-22290iLX70,SX70,YX7#..KYO,XL198408-198808

main71630-22300iGX71,LX70,SX70..SXL,XG198408-198808

main71630-22310iGX71..TWC198408-198608

main71630-22400iGX71..TWC198608-198808

main71630-22410iGX71..TWC198608-198808

W/*PSE

main71630-91614iGX71..TWT198510-198608

main71630-91615iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198608

XG EXTRA

main71630-91616iGX71..AVT..EFI; LX70,SX70..XG198608-198808

XG EXTRA

main71630-91617iGX71..TWT198608-198808

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-22240iLX70,SX70,YX70..KYO,XL198408-198510

main71640-22250iGX71,LX70,SX70..SXL,XG; GX71..TWC198608-198808

main71640-22260iLX70,SX70,YX7#..KYO,XL198510-198808

main71640-91611iGX71..TWT198510-198808

main71640-91612iGX71..AVT..EFI; LX70,SX70..XG198608-198808

XG EXTRA

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-22090-02iGX71,LX70,SX70..SXL,XG198408-198608

MAROON,MAROON,TRIM3#

main71705-22090-03iGX71,LX70,SX70..SXL,XG198408-198608

GRAY,COOL GRAY,TRIM1#

main71705-22090-05iGX71,LX70,SX70..SXL,XG198408-198608

BEIGE,BEIGE,TRIM4#

main71705-22091-02iGX71..SXL198608-198808

MAROON,MAROON,TRIM3#

main71705-22091-04iGX71..SXL198608-198808

BLUE,DARK BLUE,TRIM8#

main71705-22091-05iGX71..SXL198608-198808

BEIGE,DARK BEIGE,TRIM4#

main71705-22110-02iGX71..TWC198408-198608

MAROON,MAROON,TRIM3#

main71705-22110-03iGX71..TWC198408-198608

GRAY,COOL GRAY,TRIM1#

main71705-22110-05iGX71..AVT..EFI198601-198608

LORDLY,BEIGE,BEIGE,TRIM4#

main71705-22111-02iGX71..TWC198608-198808

MAROON,MAROON,TRIM3#

main71705-22111-04iGX71..TWC198608-198808

BLUE,DARK BEIGE,TRIM8#

main71705-22111-05iGX71..AVT..EFI198701-198801

LORDLY,BEIGE,DARK BEIGE,TRIM4#

main71705-22220-02iLX70,SX70..XG198608-198808

MAROON,MAROON,TRIM3#

main71705-22220-04iLX70,SX70..XG198608-198808

BLUE,DARK BLUE,TRIM8#

main71705-22220-05iLX70,SX70..XG198608-198808

BEIGE,DARK BEIGE,TRIM4#

main71705-91601-02iGX71..TWT198510-198808

MAROON,MAROON,TRIM3#

main71705-91601-03iGX71..TWT198510-198608

GRAY,COOL GRAY,TRIM1#

main71705-91601-04iGX71..TWT198608-198808

BLUE,DARK BLUE,TRIM8#

main71705-91601-05iGX71..TWT198510-198608

BEIGE,BEIGE,TRIM4#

main71705-91601-15iGX71..TWT198608-198808

BEIGE,DARK BEIGE,TRIM4#

main71705-91602-02iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

MAROON,MAROON,TRIM3#; XG EXTRA,MAROON,MAROON,TRIM3#

main71705-91602-03iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

GRAY,COOL GRAY,TRIM1#; XG EXTRA,GRAY,COOL GRAY,TRIM1#

main71705-91602-05iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

BEIGE,BEIGE,TRIM4#; XG EXTRA,BEIGE,BEIGE,TRIM4#

main71705-91602-12iGX71..AVT..EFI; LX70,SX70..XG198510-198608

MAROON,MAROON,TRIM3#; XG EXTRA,MAROON,MAROON,TRIM3#

main71705-91602-13iGX71..AVT..EFI; LX70,SX70..XG198510-198608

GRAY,COOL GRAY,TRIM1#; XG EXTRA,GRAY,COOL GRAY,TRIM1#

main71705-91602-15iGX71..AVT..EFI; LX70,SX70..XG198510-198608

BEIGE,BEIGE,TRIM4#; XG EXTRA,BEIGE,BEIGE,TRIM4#

main71705-91603-02iGX71..AVT..EFI; LX70,SX70..XG198608-198808

MAROON,MAROON,TRIM3#; XG EXTRA,MAROON,MAROON,TRIM3#

main71705-91603-04iGX71..AVT..EFI; LX70,SX70..XG198608-198808

BLUE,DARK BLUE,TRIM8#; XG EXTRA,BLUE,DARK BLUE,TRIM8#

main71705-91603-05iGX71..AVT..EFI; LX70,SX70..XG198608-198808

BEIGE,DARK BEIGE,TRIM4#; XG EXTRA,BEIGE,DARK BEIGE,TRIM4#

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71705-22090-02iGX71,LX70,SX70..SXL,XG198408-198608

MAROON,MAROON,TRIM3#

main71705-22090-03iGX71,LX70,SX70..SXL,XG198408-198608

GRAY,COOL GRAY,TRIM1#

main71705-22090-05iGX71,LX70,SX70..SXL,XG198408-198608

BEIGE,BEIGE,TRIM4#

main71705-22091-02iGX71..SXL198608-198808

MAROON,MAROON,TRIM3#

main71705-22091-04iGX71..SXL198608-198808

BLUE,DARK BLUE,TRIM8#

main71705-22091-05iGX71..SXL198608-198808

BEIGE,DARK BEIGE,TRIM4#

main71705-22110-02iGX71..TWC198408-198608

MAROON,MAROON,TRIM3#

main71705-22110-03iGX71..TWC198408-198608

GRAY,COOL GRAY,TRIM1#

main71705-22110-05iGX71..AVT..EFI198601-198608

LORDLY,BEIGE,BEIGE,TRIM4#

main71705-22111-02iGX71..TWC198608-198808

MAROON,MAROON,TRIM3#

main71705-22111-04iGX71..TWC198608-198808

BLUE,DARK BEIGE,TRIM8#

main71705-22111-05iGX71..TWC198608-198808

BEIGE,DARK BEIGE,TRIM4#

main71705-22220-02iLX70,SX70..XG198608-198808

MAROON,MAROON,TRIM3#

main71705-22220-04iLX70,SX70..XG198608-198808

BLUE,DARK BLUE,TRIM8#

main71705-22220-05iLX70,SX70..XG198608-198808

BEIGE,DARK BEIGE,TRIM4#

main71705-91602-02iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

MAROON,MAROON,TRIM3#; XG EXTRA,MAROON,MAROON,TRIM3#

main71705-91602-03iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

GRAY,COOL GRAY,TRIM1#; XG EXTRA,GRAY,COOL GRAY,TRIM1#

main71705-91602-05iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

BEIGE,BEIGE,TRIM4#; XG EXTRA,BEIGE,BEIGE,TRIM4#

main71705-91602-12iGX71..AVT..EFI; LX70,SX70..XG198510-198608

MAROON,MAROON,TRIM3#; XG EXTRA,MAROON,MAROON,TRIM3#

main71705-91602-13iGX71..AVT..EFI; LX70,SX70..XG198510-198608

GRAY,COOL GRAY,TRIM1#; XG EXTRA,GRAY,COOL GRAY,TRIM1#

main71705-91602-15iGX71..AVT..EFI; LX70,SX70..XG198510-198608

BEIGE,BEIGE,TRIM4#; XG EXTRA,BEIGE,BEIGE,TRIM4#

main71705-91603-02iGX71..AVT..EFI; LX70,SX70..XG198608-198808

MAROON,MAROON,TRIM3#; XG EXTRA,MAROON,MAROON,TRIM3#

main71705-91603-04iGX71..AVT..EFI; LX70,SX70..XG198608-198808

BLUE,DARK BLUE,TRIM8#; XG EXTRA,BLUE,DARK BLUE,TRIM8#

main71705-91603-05iGX71..AVT..EFI; LX70,SX70..XG198608-198808

BEIGE,DARK BEIGE,TRIM4#; XG EXTRA,BEIGE,DARK BEIGE,TRIM4#

main71706-91601-02iGX71..TWT198510-198808

MAROON,MAROON,TRIM3#

main71706-91601-03iGX71..TWT198510-198608

GRAY,COOL GRAY,TRIM1#

main71706-91601-04iGX71..TWT198608-198808

BLUE,DARK BLUE,TRIM8#

main71706-91601-05iGX71..TWT198510-198608

BEIGE,BEIGE,TRIM4#

main71706-91601-15iGX71..TWT198608-198808

BEIGE,DARK BEIGE,TRIM4#

71731FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT)

main71703-22020-02×32iGX71..TWC198408-198608

MAROON,MAROON,TRIM3#

main71703-22020-03×32iGX71..TWC198408-198608

GRAY,COOL GRAY,TRIM1#

main71703-22020-05×32iGX71..TWC198408-198608

BEIGE,BEIGE,TRIM4#

main71703-22021-02×32iGX71..TWC198608-198808

MAROON,MAROON,TRIM3#

main71703-22021-04×32iGX71..TWC198608-198808

BLUE,DARK BLUE,TRIM8#

main71703-22021-05×32iGX71..TWC198608-198808

BEIGE,DARK BEIGE,TRIM4#

main71703-91601-02×16iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

MAROON,MAROON,TRIM3#; XG EXTRA,FB,MAROON,MAROON,TRIM3#

main71703-91601-03×16iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

GRAY,COOL GRAY,TRIM1#; XG EXTRA,FB,GRAY,COOL GRAY,TRIM1#

main71703-91601-05×16iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

BEIGE,BEIGE,TRIM4#; XG EXTRA,FB,BEIGE,BEIGE,TRIM4#

main71703-91601-12iGX71..AVT..EFI; LX70,SX70..XG198510-198608

MAROON,MAROON,TRIM3#; XG EXTRA,FB,MAROON,MAROON,TRIM3#

main71703-91601-13iGX71..AVT..EFI; LX70,SX70..XG198510-198608

GRAY,COOL GRAY,TRIM1#; XG EXTRA,FB,GRAY,COOL GRAY,TRIM1#

main71703-91601-15iGX71..AVT..EFI; LX70,SX70..XG198510-198608

BEIGE,BEIGE,TRIM4#; XG EXTRA,FB,BEIGE,BEIGE,TRIM4#

71733RETAINER, SEAT COVER FASTENER, A (FOR FRONT SEAT)

main71701-22120×4iGX71..TWC198408-198808

main71701-91602×2iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198605

SEAT CUSHION; XG EXTRA,SEAT CUSHION

main71701-91607×4iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198608

SEAT BACK; XG EXTRA,SEAT BACK

main71701-91608×4iGX71..AVT..EFI; LX70,SX70..XG198605-198608

SEAT CUSHION; XG EXTRA,SEAT CUSHION

71788BWASHER, FRONT SEATBACK BOARD SETTING

main71788-22010-35×4iGX71,LX70,MX71,SX70..AVT,SXL,XG198408-198608

BEIGE,BEIGE,TRIM4#

main71788-22010-42×4iGX71,LX70,MX71,SX70..AVT,SXL,XG198408-198808

MAROON,MAROON,TRIM3#

main71788-22010-43×4iGX71,LX70,MX71,SX70..AVT,SXL,XG198408-198608

GRAY,COOL GRAY,TRIM1#

main71788-22010-45×4iGX71,LX70,SX70..AVT,SXL,XG198608-198808

BEIGE,DARK BEIGE,TRIM4#

main71788-22010-54×4iGX71,LX70,SX70..AVT,SXL,XG198608-198808

BLUE,DARK BLUE,TRIM8#

71812ARING, HOG, SMALL (FOR FRONT SEAT)

main90468-18071iGX71,LX70,MX71,SX70,YX7#198408-198808

71950HEADREST ASSY, FRONT SEAT

main71910-22511-02×2iGX71..SXL198608-198808

MAROON,MAROON,TRIM3#

main71910-22511-04×2iGX71..SXL198608-198808

BLUE,DARK BLUE,TRIM8#

main71910-22511-05×2iGX71..SXL198608-198808

BEIGE,DARK BEIGE,TRIM4#

main71910-22530-02×2iGX71..TWC198408-198608

MAROON,MAROON,TRIM3#

main71910-22530-03×2iGX71..TWC198408-198608

GRAY,COOL GRAY,TRIM1#

main71910-22530-05×2iGX71..AVT..EFI198601-198608

LORDLY,BEIGE,BEIGE,TRIM4#

main71910-22531-02×2iGX71..AVT198801-198808

LORDLY,MAROON,MAROON,TRIM3#

main71910-22531-04×2iGX71..TWC198608-198808

BLUE,DARK BLUE,TRIM8#

main71910-22531-05×2iGX71..TWC198608-198808

BEIGE,DARK BEIGE,TRIM4#

main71910-22540-02×2iSX70..XL198510-198608

XL EXTRA,MAROON,MAROON,TRIM3#

main71910-22540-03×2iLX70,SX70,YX70..KYO,XL198408-198608

GRAY,COOL GRAY,TRIM1#

main71910-22540-04×2iLX70,SX70,YX72..KYO198608-198808

BLUE,DARK BLUE,TRIM8#

main71910-22540-05×2iLX70,SX70..XL198408-198808

BEIGE,BEIGE,TRIM4#

main71910-22630-04×2iLX70,SX70..XL198608-198808

BLUE,DARK BLUE,TRIM8#

main71910-22630-05×2iLX70,SX70..XL198608-198808

BEIGE,DARK BEIGE,TRIM4#

main71910-22640-02×2iLX70,SX70..XG198608-198808

MAROON,MAROON,TRIM3#

main71910-22640-04×2iLX70,SX70..XG198608-198808

BLUE,DARK BLUE,TRIM8#

main71910-22640-05×2iLX70,SX70..XG198608-198808

BEIGE,DARK BEIGE,TRIM4#

main71910-91604-02×2iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

MAROON,MAROON,TRIM3#; XG EXTRA,MAROON,MAROON,TRIM3#

main71910-91604-03×2iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

GRAY,COOL GRAY,TRIM1#; XG EXTRA,GRAY,COOL GRAY,TRIM1#

main71910-91604-05×2iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198510

BEIGE,BEIGE,TRIM4#; XG EXTRA,BEIGE,BEIGE,TRIM4#

main71910-91604-12×2iGX71..AVT..EFI; LX70,SX70..XG198510-198608

MAROON,MAROON,TRIM3#; XG EXTRA,MAROON,MAROON,TRIM3#

main71910-91604-13×2iGX71..AVT..EFI; LX70,SX70..XG198510-198608

GRAY,COOL GRAY,TRIM1#; XG EXTRA,GRAY,COOL GRAY,TRIM1#

main71910-91604-15×2iGX71..AVT..EFI; LX70,SX70..XG198510-198608

BEIGE,BEIGE,TRIM4#; XG EXTRA,BEIGE,BEIGE,TRIM4#

main71910-91605-02×2iGX71,LX70,SX70..SXL,XG198408-198608

MAROON,MAROON,TRIM3#

main71910-91605-03×2iGX71,LX70,SX70..SXL,XG198408-198608

GRAY,COOL GRAY,TRIM1#

main71910-91605-05×2iGX71,LX70,SX70..SXL,XG198408-198608

BEIGE,BEIGE,TRIM4#

main71910-91606-02×2iGX71..TWT198510-198808

MAROON,MAROON,TRIM3#

main71910-91606-03×2iGX71..TWT198510-198608

GRAY,COOL GRAY,TRIM1#

main71910-91606-04×2iGX71..TWT198608-198808

BLUE,DARK BLUE,TRIM8#

main71910-91606-05×2iGX71..TWT198510-198608

BEIGE,BEIGE,TRIM4#

main71910-91606-15×2iGX71..TWT198608-198808

BEIGE,DARK BEIGE,TRIM4#

main71910-91607-02×2iSX70..XL198510-198808

XL EXTRA,MAROON,MAROON,TRIM3#

main71910-91608-02×2iGX71..AVT..EFI; LX70,SX70..XG198608-198808

MAROON,MAROON,TRIM3#; XG EXTRA,MAROON,MAROON,TRIM3#

main71910-91608-04×2iGX71..AVT..EFI; LX70,SX70..XG198608-198808

BLUE,DARK BLUE,TRIM8#; XG EXTRA,BLUE,DARK BLUE,TRIM8#

main71910-91608-05×2iGX71..AVT..EFI; LX70,SX70..XG198608-198808

BEIGE,DARK BEIGE,TRIM4#; XG EXTRA,BEIGE,DARK BEIGE,TRIM4#

71956ASUPPORT, FRONT SEAT HEADREST

main71930-10060-02×2iGX71,LX70,MX71,SX70..AVT,SXL,XG198408-198608

main71930-10060-10×2iGX71,LX70,SX70..AVT,SXL,XG,XL198608-198808

main71930-10060-16×2iGX71,LX70,MX71,SX70..AVT,SXL,XG,XL198408-198608

main71930-10060-42×2iGX71,LX70,SX70..AVT,SXL,XG; SX70..XL198608-198808

main71930-10060-43×2iGX71,LX70,MX71,SX70,YX70198408-198608

main71930-10060-54×2iGX71,LX70,SX70,YX72198608-198808

main71930-14080-06×2iGX71..TWT198510-198608

main71930-14080-12×2iGX71..TWT198510-198608

main71930-14080-13×2iGX71..TWT198510-198608

main71930-14080-15×2iGX71..TWT198608-198808

main71930-14080-34×2iGX71..TWT198608-198808

main71930-14080-42×2iGX71..TWT198608-198808

main71931-10010-02×2iSX70..XL198510-198608

main71931-10010-10×2iGX71,LX70,SX70..AVT,SXL,XG,XL198608-198808

main71931-10010-16×2iGX71,LX70,MX71,SX70..AVT,SXL,XG,XL198408-198608

main71931-10010-42×2iGX71,LX70,SX70..AVT,SXL,XG; SX70..XL198608-198808

main71931-10010-43×2iGX71,LX70,MX71,SX70,YX70198408-198608

main71931-10010-54×2iGX71,LX70,SX70,YX72198608-198808

main71931-14010-06×2iGX71..TWT198510-198608

main71931-14010-12×2iGX71..TWT198510-198608

main71931-14010-13×2iGX71..TWT198510-198608

main71931-14010-15×2iGX71..TWT198608-198808

main71931-14010-34×2iGX71..TWT198608-198808

main71931-14010-42×2iGX71..TWT198608-198808

72457CKNOB, SIDE SUPPORT ADJUSTER

main72457-14030-20iGX71..TWC,TWT198608-198808

BLUE,DARK BLUE,TRIM8#

main72457-14030-32iGX71..TWC,TWT198408-198808

MAROON,MAROON,TRIM3#

main72457-14030-35iGX71..TWC,TWT198408-198608

BEIGE,BEIGE,TRIM4#

main72457-14030-53iGX71..TWC,TWT198408-198608

GRAY,COOL GRAY,TRIM1#

main72457-14030-55iGX71..TWC,TWT198608-198808

BEIGE,DARK BEIGE,TRIM4#

72760ADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-22060iGX71..TWC198608-198808

W/*PSE

main72750-30090iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198608

XG EXTRA

main72750-91601iGX71..TWT198608-198808

72770ADJUSTER ASSY, LUMBAR SUPPORT, LH

main72760-30060iLX70,SX70,YX7#..KYO198510-198808

72791LEVER, LUMBAR SUPPORT

main72791-14010-13iLX70,SX70,YX70..KYO198510-198608

GRAY,COOL GRAY,TRIM1#

main72791-14010-14iLX70,SX70,YX72..KYO198608-198808

BLUE,DARK BLUE,TRIM8#

main72791-14010-32iSX70..4FC..XL198612-198808

*30,MAROON,TRIM3#

main72791-14010-34iSX70..4FC..XL198612-198808

*30,BLUE,TRIM8#

main72791-14010-45iSX70..4FC..XL198612-198808

*30,BEIGE,TRIM4#

main72791-22020-25iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198608

BEIGE,BEIGE,TRIM4#; XG EXTRA,BEIGE,BEIGE,TRIM4#

main72791-22020-32iGX71..AVT; SX70..XG198608-198808

MAROON,MAROON,TRIM3#; XG EXTRA,MAROON,MAROON,TRIM3#

main72791-22020-34iGX71..AVT; SX70..XG198608-198808

BLUE,DARK BLUE,TRIM8#; XG EXTRA,BLUE,DARK BLUE,TRIM8#

main72791-22020-43iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198608

GRAY,COOL GRAY,TRIM1#; XG EXTRA,GRAY,COOL GRAY,TRIM1#

main72791-22020-45iGX71..AVT; SX70..XG198608-198808

BEIGE,DARK BEIGE,TRIM4#; XG EXTRA,BEIGE,DARK BEIGE,TRIM4#

72791ARING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)

main90520-01002iGX71,MX71..AVT..(EFI,TBO); LX70,SX70..XG198408-198608

XG EXTRA

9046710016

main90467-10016

9052001002

main90520-01002

9052308001

main90523-08001

9165540616

main91655-40616

9338616016

main93386-16016

9353054025

main93530-54025

32 parts on this diagram · 6 diagrams in section
