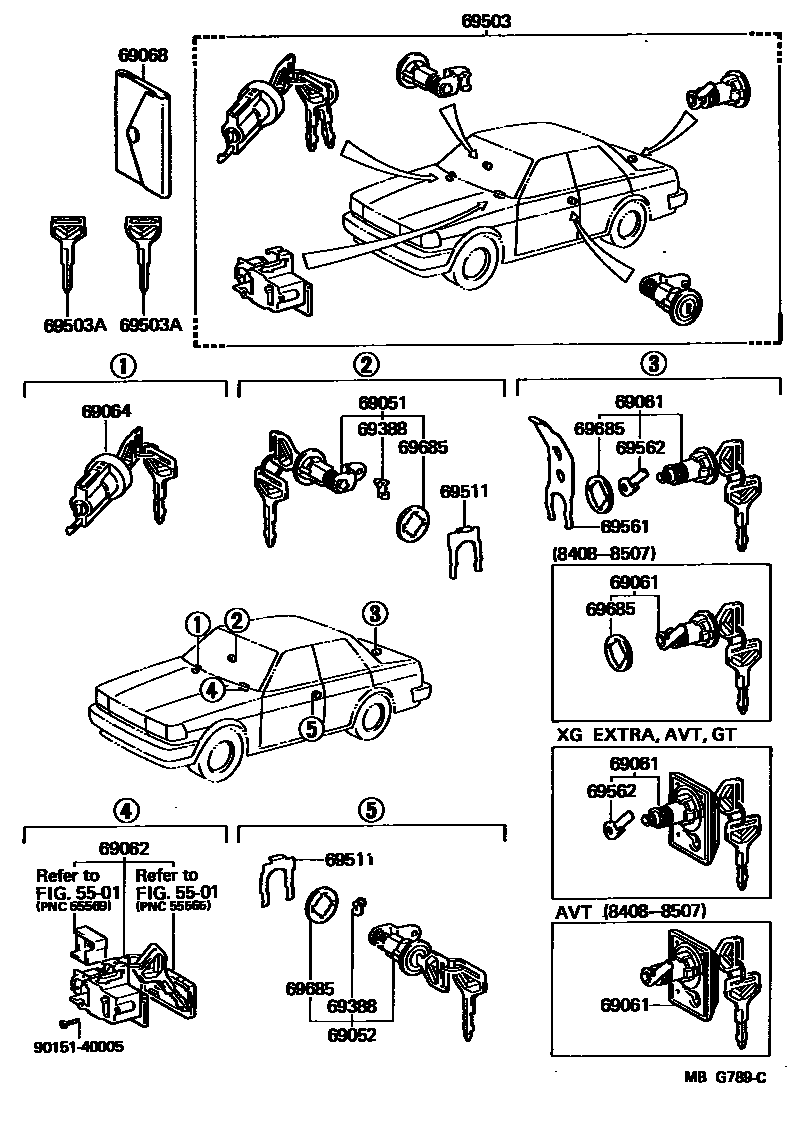

LOCK CYLINDER SET

5501

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-22120iGX71,LX70,SX70,YX70..KYO,SXL,XG,XL198408-198608

sub69051-20190

main69051-22120iGX71..5F..TWT198510-198608

GT-S PACKAGE

sub69051-20190

main69051-22121iGX71,LX70,SX70,YX72..KYO,SXL,XG,XL198608-198808

sub69051-22260

main69051-22140iGX71,MX71..AVT,GT198408-198608

sub69051-22141

main69051-22141iGX71..AVT,GT198608-198808

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-22120iGX71,LX70,MX71,SX70,YX70198408-198608

main69052-22121iGX71,LX70,SX70,YX72198608-198808

sub69052-22260

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69055-22120iLX70,SX70,YX70..KYO198408-198608

main69055-22121iSX70..4FC..XL198612-198808

*30

main69055-22121iLX70,SX70,YX72..KYO198608-198808

main69055-22210iGX71,LX70,SX70..SXL,XG,XL198507-198608

sub69055-22211

main69055-22210iGX71..5F..TWT198510-198608

GT-S PACKAGE

sub69055-22211

main69055-22211iGX71,LX70,SX70..SXL,XG,XL198608-198808

main69055-91607iGX71,MX71..AVT198408-198507

main69055-91608iGX71,MX71..AVT,GT198507-198608

main69055-91609iGX71..AVT,GT198608-198808

main69055-91609iLX70,SX70..XG198711-198808

XG EXTRA

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-22020-02iGX71,MX71..AVT,GT198408-198608

MAROON,MAROON,TRIM3#

sub69056-22020

sub69056-22130

sub55565-22010

sub55569-22020

main69056-22020-02iSX70..XL198510-198608

XL EXTRA,MAROON,MAROON,TRIM3#

sub69056-22020

sub69056-22130

sub55565-22010

sub55569-22020

main69056-22020-03iGX71,MX71..AVT,GT198408-198608

GRAY,COOL GRAY,TRIM1#

sub69056-22020

sub69056-22130

sub55565-22010

sub55569-22020

main69056-22020-04iGX71,LX70,SX70,YX72198608-198808

BLUE,DARK BLUE,TRIM8#

sub69056-22020

sub69056-22130

sub55565-22010

sub55569-22020

main69056-22020-05iGX71,LX70,SX70..SXL,XG,XL198408-198608

BEIGE,BEIGE,TRIM4#

sub69056-22020

sub69056-22130

sub55565-22010

sub55569-22020

main69056-22020-12iGX71,LX70,SX70..AVT,GT,SXL,XG198608-198808

MAROON,MAROON,TRIM3#

sub69056-22020

sub69056-22130

sub55565-22010

sub55569-22020

main69056-22020-12iGX71,LX70,SX70..AVT,GT,SXL,XG198608-198808

XL EXTRA,MAROON,MAROON,TRIM3#

sub69056-22020

sub69056-22130

sub55565-22010

sub55569-22020

main69056-22020-15iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

BEIGE,DARK BEIGE,TRIM4#

sub69056-22020

sub69056-22130

sub55565-22010

sub55569-22020

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-22050iGX71..5F..TWT198510-198608

GT-S PACKAGE

sub69057-22060

main69057-22050iGX71,LX70,SX70,YX70..KYO,SXL,XG,XL198408-198608

sub69057-22060

main69057-22060iGX71,MX71..AVT,GT198408-198608

main69057-22110iGX71,LX70,SX70,YX72..KYO,SXL,XG,XL198608-198808

sub69057-32070

main69057-22120iGX71..AVT,GT198608-198808

sub69057-32070

69068COVER SUB-ASSY, KEY

main69555-20010iGX71,LX70,MX71,SX70,YX7#198408-198808

69388SNAP, ROD(FOR DOOR LOCK)

main69759-20080iGX71,LX70,MX71,SX70,YX7#198408-198808

RH

main69759-20080iGX71,LX70,MX71,SX70,YX7#198408-198808

RH DOOR

main69759-20090iGX71,LX70,MX71,SX70,YX7#198408-198808

LH

main69759-20090iGX71,LX70,MX71,SX70,YX7#198408-198808

LH DOOR

69503CYLINDER SET, LOCK

main69005-22260iLX70,SX70,YX70..KYO198408-198608

main69005-22420iGX71..5F..TWT198510-198608

GT-S PACKAGE

main69005-22420iGX71,LX70,SX70..SXL,XG,XL198507-198608

main69005-22481iLX70,SX70,YX72..KYO198608-198808

main69005-22481iSX70..4FC..XL198612-198808

*30

main69005-22611iGX71,LX70,SX70..SXL,XG,XL198608-198808

main69005-91616iGX71,MX71..AVT,GT198507-198605

sub69005-91618

main69005-91617iGX71,MX71..AVT198408-198507

main69005-91618iGX71..AVT,GT198605-198608

main69005-91619iGX71..AVT,GT198608-198808

main69005-91620iLX70,SX70..XG198711-198808

XG EXTRA

69503AKEY, BLANK

main90999-00099iGX71,LX70,MX71,SX70,YX7#198408-198808

main90999-00100iGX71,LX70,MX71,SX70,YX7#198408-198808

main90999-00118iGX71,LX70,SX70,YX72198608-198808

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iGX71,LX70,MX71,SX70,YX7#198408-198808

69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69561-91601iGX71,LX70,MX71,SX70,YX7#198408-198808

69562LEVER, LUGGAGE COMPARTMENT DOOR LOCK

main69562-22010iGX71,MX71..AVT,GT198507-198808

main69562-22020iGX71..5F..TWT198510-198608

GT-S PACKEGE

main69562-22020iGX71,LX70,SX70..SXL,XG,XL198507-198808

69685PAD, LOCK CYLINDER

main69513-32010iGX71,LX70,MX71,SX70,YX7#198408-198808

FR DOOR

main69563-32010iGX71,LX70,SX70,YX70..KYO,SXL,XG,XL198408-198808

LUGGAGE

9015140005

main90151-40005

15 parts on this diagram · 1 diagram in section
