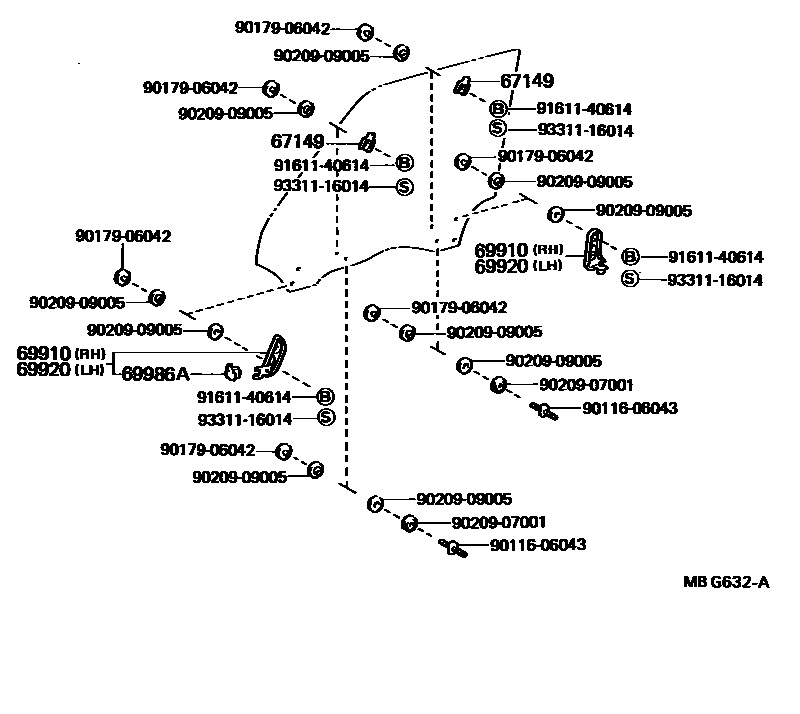

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

67149STABILIZER, FRONT DOOR GLASS

main68149-14010iGX71,LX70,MX71,SX70,YX7#198408-198808

69910BRACKET ASSY, FRONT DOOR GLASS, RH

main69901-22070iGX71,LX70,MX71,SX70,YX7#198408-198808

FR

main69903-22030iGX71,LX70,MX71,SX70,YX7#198408-198808

RR

69920BRACKET ASSY, FRONT DOOR GLASS, LH

main69902-22030iGX71,LX70,MX71,SX70,YX7#198408-198808

FR

main69904-22010iGX71,LX70,MX71,SX70,YX7#198408-198808

RR

69986APIECE, FRONT DOOR GLASS GUIDE

main69986-24010iGX71,LX70,MX71,SX70,YX7#198408-198808

9011606043

main90116-06043

9017906042

main90179-06042

9020907001

main90209-07001

9020909005

main90209-09005

9161140614

main91611-40614

9331116014

main93311-16014

10 parts on this diagram · 2 diagrams in section
