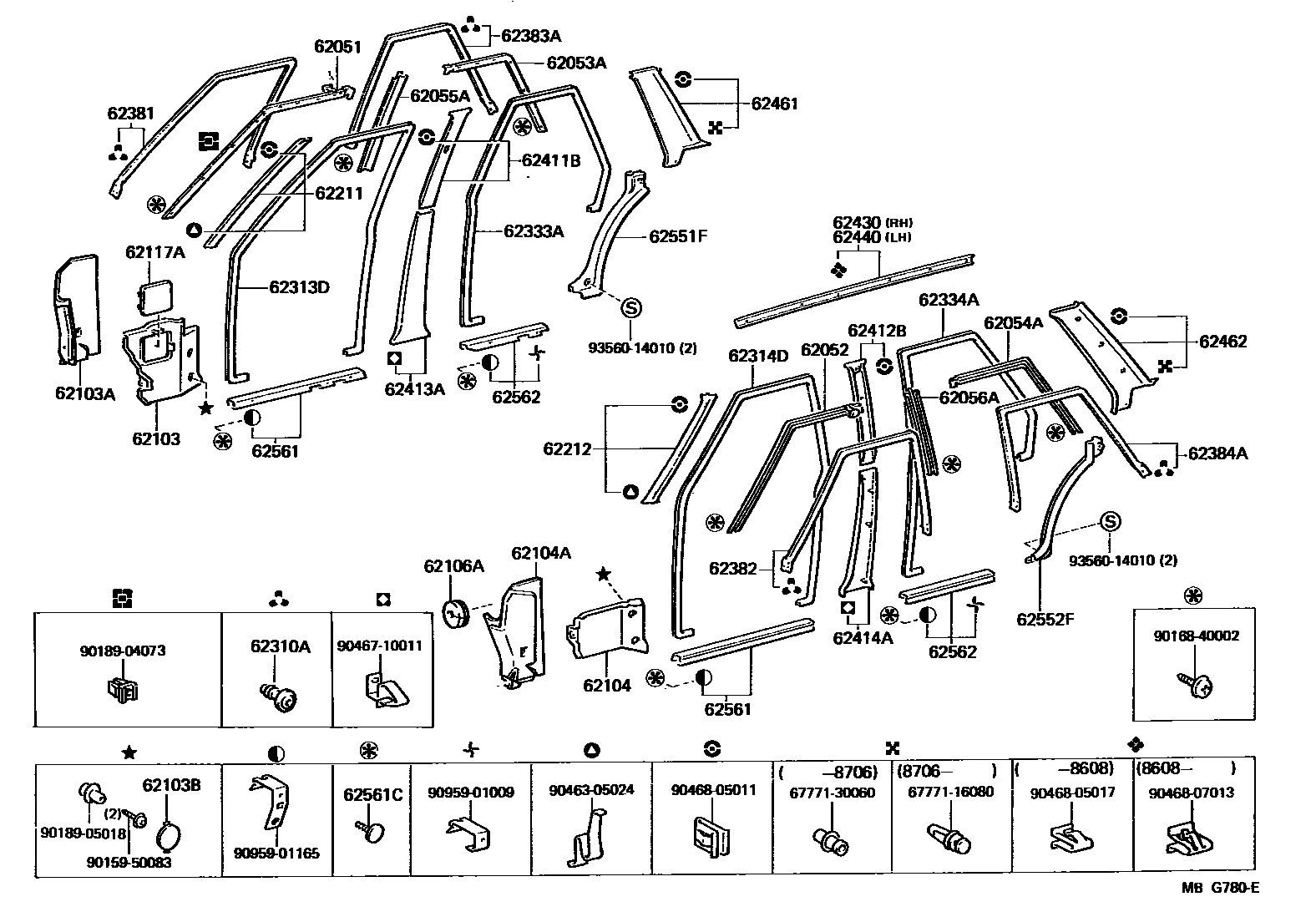

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62051RETAINER SUB-ASSY, ROOF SIDE WEATHERSTRIP, FRONT RH

main62051-22020iGX71,LX70,MX71,SX70,YX70198408-198602

main62051-22040iGX71,LX70,SX70,YX7#198602-198702

main62051-22050iGX71,LX70,SX70,YX72198702-198808

62052RETAINER SUB-ASSY, ROOF SIDE WEATHERSTRIP, FRONT LH

main62052-22020iGX71,LX70,MX71,SX70,YX70198408-198602

main62052-22040iGX71,LX70,SX70,YX7#198602-198702

main62052-22050iGX71,LX70,SX70,YX72198702-198808

62053ARETAINER SUB-ASSY, ROOF SIDE WEATHERSTRIP, REAR RH

main62053-22010iGX71,LX70,MX71,SX70,YX70198408-198602

main62053-22030iGX71,LX70,SX70,YX7#198602-198702

main62053-22040iGX71,LX70,SX70,YX72198702-198808

62054ARETAINER SUB-ASSY, ROOF SIDE WEATHERSTRIP, REAR LH

main62054-22010iGX71,LX70,MX71,SX70,YX70198408-198602

main62054-22030iGX71,LX70,SX70,YX7#198602-198702

main62054-22040iGX71,LX70,SX70,YX72198702-198808

62055ARETAINER SUB-ASSY, CENTER PILLAR WEATHERSTRIP, RH

main62055-22010iGX71,LX70,MX71,SX70,YX7#198408-198808

62056ARETAINER SUB-ASSY, CENTER PILLAR WEATHERSTRIP, LH

main62056-22010iGX71,LX70,MX71,SX70,YX7#198408-198808

62103BOARD SUB-ASSY, COWL SIDE TRIM, RH

main62101-22140-02iGX71..5F..TWT198510-198608

GT-S PACKAGE,MAROON,MAROON,TRIM3#

main62101-22140-03iGX71..5F..TWT198510-198608

GT-S PACKAGE,GRAY,COOL GRAY,TRIM1#

main62101-22140-04iGX71,LX70,SX70,YX72..KYO,SXL,XG,XL198608-198808

BLUE,DARK BLUE,TRIM8#

main62101-22140-05iGX71,LX70,SX70..SXL,XG,XL198408-198608

BEIGE,BEIGE,TRIM4#

main62101-22140-15iGX71,LX70,SX70..SXL,XG,XL198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62101-22160-02iGX71,MX71..AVT,GT198408-198608

MAROON,MAROON,TRIM3#

main62101-22160-03iGX71,MX71..AVT,GT198408-198608

GRAY,COOL GRAY,TRIM1#

main62101-22160-05iGX71,MX71..AVT,GT198408-198608

BEIGE,BEIGE,TRIM4#

main62101-22161-02iGX71..AVT,GT198608-198808

MAROON,MAROON,TRIM3#

main62101-22161-04iGX71..AVT,GT198608-198808

BLUE,DARK BLUE,TRIM8#

main62101-22161-05iGX71..AVT,GT198608-198808

BEIGE,DARK BEIGE,TRIM4#

62103AINSULATOR SUB-ASSY, COWL SIDE, RH

main62105-22010iGX71,LX70,MX71,SX70,YX7#198408-198808

62103BPLUG(FOR COWL SIDE TRIM BOARD)

main90950-01427-02×4iSX70..XL198510-198808

XL EXTRA,MAROON,MAROON,TRIM3#

main90950-01427-03×4iGX71,LX70,MX71,SX70,YX70198408-198608

GRAY,COOL GRAY,TRIM1#

main90950-01427-04iGX71,LX70,SX70,YX72..KYO,SXL,XG,XL198608-198808

BLUE,DARK BLUE,TRIM8#

main90950-01427-05×4iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL198408-198608

BEIGE,BEIGE,TRIM4#

main90950-01427-15iGX71,LX70,SX70..SXL,XG,XL198608-198808

BEIGE,DARK BEIGE,TRIM4#

62104BOARD SUB-ASSY, COWL SIDE TRIM, LH

main62102-22170-02iSX70..XL198510-198808

XL EXTRA,MAROON,MAROON,TRIM3#

main62102-22170-03iGX71..5F..TWT198510-198608

GT-S PACKAGE,GRAY,COOL GRAY,TRIM1#

main62102-22170-04iGX71,LX70,SX70,YX72..KYO,SXL,XG,XL198608-198808

BLUE,DARK BLUE,TRIM8#

main62102-22170-05iGX71,LX70,SX70..SXL,XG,XL198408-198608

BEIGE,BEIGE,TRIM4#

main62102-22170-15iGX71,LX70,SX70..SXL,XG,XL198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62102-22190-02iGX71,MX71..AVT,GT198408-198608

MAROON,MAROON,TRIM3#

main62102-22190-03iGX71,MX71..AVT,GT198408-198608

GRAY,COOL GRAY,TRIM1#

main62102-22190-05iGX71,MX71..AVT,GT198408-198608

BEIGE,BEIGE,TRIM4#

main62102-22191-02iGX71..AVT,GT198608-198808

MAROON,MAROON,TRIM3#

main62102-22191-04iGX71..AVT,GT198608-198808

BLUE,DARK BLUE,TRIM8#

main62102-22191-05iGX71..AVT,GT198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62102-22210-02iGX71..4FC..TWC198408-198608

W/ESC,MAROON,MAROON,TRIM3#

main62102-22210-03iGX71..4FC..TWC198408-198608

W/ESC,GRAY,COOL GRAY,TRIM1#

main62102-22210-05iGX71..4FC..TWC198408-198608

W/ESC,BEIGE,BEIGE,TRIM4#

main62102-22211-02iGX71..4FC..TWC198608-198808

W/4-ESC,MAROON,MAROON,TRIM3#

main62102-22211-04iGX71..4FC..TWC198608-198808

W/4-ESC,BLUE,DARK BLUE,TRIM8#

main62102-22211-05iGX71..4FC..TWC198608-198808

W/4-ESC,BEIGE,DARK BEIGE,TRIM4#

62104AINSULATOR SUB-ASSY, COWL SIDE, LH

main62106-22010iGX71,LX70,MX71,SX70,YX7#198408-198808

62106AINSULATOR SUB-ASSY, COWL SIDE, UPPER LH

main62107-22010iGX71,LX70,MX71,SX70,YX7#198408-198808

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-22030-02iGX71,LX70,MX71,SX70..AVT,SXL,XG198408-198510

MAROON,MAROON,TRIM3#

main62117-22030-03iGX71,LX70,MX71,SX70,YX70198408-198510

GRAY,COOL GRAY,TRIM1#

main62117-22030-05iGX71,LX70,MX71,SX70..AVT,SXL,XG,XL198408-198510

BEIGE,BEIGE,TRIM4#

main62117-22031-02iGX71,LX70,SX70..AVT,GT,SXL,XG; SX70..XL198510-198608

MAROON,MAROON,TRIM3#; XL EXTRA,MAROON,MAROON,TRIM3#

main62117-22031-03iGX71,LX70,SX70,YX70198510-198608

GRAY,COOL GRAY,TRIM1#

main62117-22031-05iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198510-198608

BEIGE,BEIGE,TRIM4#

main62117-22050-02iGX71,LX70,SX70..AVT,GT,SXL,XG; SX70..XL198608-198808

MAROON,MAROON,TRIM3#; XL EXTRA,MAROON,MAROON,TRIM3#

main62117-22050-04iGX71,LX70,SX70,YX72198608-198808

BLUE,DARK BLUE,TRIM8#

main62117-22050-05iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

BEIGE,DARK BEIGE,TRIM4#

62211GARNISH, FRONT PILLAR, RH

main62211-91606-02iSX70..XL198510-198808

XL EXTRA,MAROON,MAROON,TRIM3#

main62211-91606-03iGX71..5F..TWT198510-198608

GT-S PACKAGE,GRAY,COOL GRAY,TRIM1#

main62211-91606-04iGX71,LX70,SX70,YX72..KYO,SXL,XG,XL198608-198808

BLUE,DARK BLUE,TRIM8#

main62211-91606-05iGX71,LX70,SX70..SXL,XG,XL198408-198608

BEIGE,BEIGE,TRIM4#

main62211-91606-15iGX71,LX70,SX70..SXL,XG,XL198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62211-91607-02iGX71,MX71..AVT,GT198408-198808

MAROON,MAROON,TRIM3#

main62211-91607-03iGX71,MX71..AVT,GT198408-198608

GRAY,COOL GRAY,TRIM1#

main62211-91607-04iGX71..AVT,GT198608-198808

BLUE,DARK BLUE,TRIM8#

main62211-91607-05iGX71,MX71..AVT,GT198408-198608

BEIGE,BEIGE,TRIM4#

main62211-91607-15iGX71..AVT,GT198608-198808

BEIGE,DARK BEIGE,TRIM4#

62212GARNISH, FRONT PILLAR, LH

main62212-91606-02iSX70..XL198510-198808

XL EXTRA,MAROON,MAROON,TRIM3#

main62212-91606-03iGX71,LX70,SX70,YX70..KYO,SXL,XG,XL198408-198608

GRAY,COOL GRAY,TRIM1#

main62212-91606-04iGX71,LX70,SX70,YX72..KYO,SXL,XG,XL198608-198808

BLUE,DARK BLUE,TRIM8#

main62212-91606-05iGX71..5F..TWT198510-198608

GT-S PACKAGE,BEIGE,BEIGE,TRIM4#

main62212-91606-15iGX71,LX70,SX70..SXL,XG,XL198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62212-91607-02iGX71,MX71..AVT,GT198408-198808

MAROON,MAROON,TRIM3#

main62212-91607-03iGX71,MX71..AVT,GT198408-198608

GRAY,COOL GRAY,TRIM1#

main62212-91607-04iGX71..AVT,GT198608-198808

BLUE,DARK BLUE,TRIM8#

main62212-91607-05iGX71,MX71..AVT,GT198408-198608

BEIGE,BEIGE,TRIM4#

main62212-91607-15iGX71..AVT,GT198608-198808

BEIGE,DARK BEIGE,TRIM4#

62310ACLIP, ROOF SIDE RAIL WEATHERSTRIP

main67869-30020×20iGX71,LX70,MX71,SX70,YX7#198408-198808

62313DTRIM, FRONT DOOR OPENING, RH

main62313-22100-02iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG198408-198808

L=2587,MAROON,MAROON,TRIM3#

main62313-22100-03iGX71,LX70,MX71,SX70,YX70198408-198608

L=2587,GRAY,COOL GRAY,TRIM1#

main62313-22100-04iGX71,LX70,SX70,YX72198608-198808

L=2587,BLUE,DARK BLUE,TRIM8#

main62313-22100-05iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL198408-198608

L=2587,BEIGE,BEIGE,TRIM4#

main62313-22100-15iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

L=2587,BEIGE,DARK BEIGE,TRIM4#

main62313-22130-02iSX70..XL198510-198808

XL EXTRA,L=2547,MAROON,MAROON,TRIM3#

main62313-22130-03iGX71,LX70,MX71,SX70,YX70198502-198608

L=2547,GRAY,COOL GRAY,TRIM1#

main62313-22130-04iGX71,LX70,SX70,YX72198608-198808

L=2547,BLUE,DARK BLUE,TRIM8#

main62313-22130-05iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL198502-198608

L=2547,BEIGE,BEIGE,TRIM4#

main62313-22130-15iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

L=2547,BEIGE,DARK BEIGE,TRIM4#

62314DTRIM, FRONT DOOR OPENING, LH

main62313-22100-02iSX70..XL198510-198808

XL EXTRA,L=2587,MAROON,MAROON,TRIM3#

main62313-22100-03iGX71,LX70,MX71,SX70,YX70198408-198608

L=2587,GRAY,COOL GRAY,TRIM1#

main62313-22100-04iGX71,LX70,SX70,YX72198608-198808

L=2587,BLUE,DARK BLUE,TRIM8#

main62313-22100-05iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL198408-198608

L=2587,BEIGE,BEIGE,TRIM4#

main62313-22100-15iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

L=2587,BEIGE,DARK BEIGE,TRIM4#

main62313-22130-02iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG198502-198808

L=2547,MAROON,MAROON,TRIM3#

main62313-22130-03iGX71,LX70,MX71,SX70,YX70198502-198608

L=2547,GRAY,COOL GRAY,TRIM1#

main62313-22130-04iGX71,LX70,SX70,YX72198608-198808

L=2547,BLUE,DARK BLUE,TRIM8#

main62313-22130-05iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL198502-198608

L=2547,BEIGE,BEIGE,TRIM4#

main62313-22130-15iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

L=2547,BEIGE,DARK BEIGE,TRIM4#

62333ATRIM, REAR DOOR OPENING, RH

main62333-22070-02iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG198408-198808

L=1992,MAROON,MAROON,TRIM3#

main62333-22070-03iGX71,LX70,MX71,SX70,YX70198408-198608

L=1992,GRAY,COOL GRAY,TRIM1#

main62333-22070-04iGX71,LX70,SX70,YX72198608-198808

L=1992,BLUE,DARK BLUE,TRIM8#

main62333-22070-05iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL198408-198608

L=1992,BEIGE,BEIGE,TRIM4#

main62333-22070-15iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

L=1992,BEIGE,DARK BEIGE,TRIM4#

main62333-22080-02iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG198502-198808

L=1972,MAROON,MAROON,TRIM3#

main62333-22080-03iGX71,LX70,MX71,SX70,YX70198502-198608

L=1972,GRAY,COOL GRAY,TRIM1#

main62333-22080-04iGX71,LX70,SX70,YX72198608-198808

L=1972,BLUE,DARK BLUE,TRIM8#

main62333-22080-05iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL198502-198608

L=1972,BEIGE,BEIGE,TRIM4#

main62333-22080-15iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

L=1972,BEIGE,DARK BEIGE,TRIM4#

62334ATRIM, REAR DOOR OPENING, LH

main62333-22070-02iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG198408-198808

L=1992,MAROON,MAROON,TRIM3#

main62333-22070-03iGX71,LX70,MX71,SX70,YX70198408-198608

L=1992,GRAY,COOL GRAY,TRIM1#

main62333-22070-04iGX71,LX70,SX70,YX72198608-198808

L=1992,BLUE,DARK BLUE,TRIM8#

main62333-22070-05iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL198408-198608

L=1992,BEIGE,BEIGE,TRIM4#

main62333-22070-15iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

L=1992,BEIGE,DARK BEIGE,TRIM4#

main62333-22080-02iSX70..XL198510-198808

XL EXTRA,L=1972,MAROON,MAROON,TRIM3#

main62333-22080-03iGX71,LX70,MX71,SX70,YX70198502-198608

L=1972,GRAY,COOL GRAY,TRIM1#

main62333-22080-04iGX71,LX70,SX70,YX72198608-198808

L=1972,BLUE,DARK BLUE,TRIM8#

main62333-22080-05iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL198502-198608

L=1972,BEIGE,BEIGE,TRIM4#

main62333-22080-15iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

L=1972,BEIGE,DARK BEIGE,TRIM4#

62381WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH

main62381-22040iGX71,LX70,MX71,SX70,YX7#198408-198808

62382WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH

main62382-22040iGX71,LX70,MX71,SX70,YX7#198408-198808

62383AWEATHERSTRIP, ROOF SIDE RAIL, REAR RH

main62383-22030iGX71,LX70,MX71,SX70,YX7#198408-198808

62384AWEATHERSTRIP, ROOF SIDE RAIL, REAR LH

main62384-22030iGX71,LX70,MX71,SX70,YX7#198408-198808

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-22190-02iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG198408-198608

MAROON,MAROON,TRIM3#

main62411-22190-03iGX71,LX70,MX71,SX70,YX70198408-198608

GRAY,COOL GRAY,TRIM1#

main62411-22190-05iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL198408-198608

BEIGE,BEIGE,TRIM4#

main62411-22200-02iGX71,LX70,SX70..AVT,GT,SXL,XG; SX70..XL198608-198808

MAROON,MAROON,TRIM3#; XL EXTRA,MAROON,MAROON,TRIM3#

main62411-22200-04iGX71,LX70,SX70,YX72198608-198808

BLUE,DARK BLUE,TRIM8#

main62411-22200-05iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

BEIGE,DARK BEIGE,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-22210-02iSX70..XL198510-198608

XL EXTRA,MAROON,MAROON,TRIM3#

main62412-22210-03iGX71,LX70,MX71,SX70,YX70198408-198608

GRAY,COOL GRAY,TRIM1#

main62412-22210-05iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL198408-198608

BEIGE,BEIGE,TRIM4#

main62412-22220-02iGX71,LX70,SX70..AVT,GT,SXL,XG; SX70..XL198608-198808

MAROON,MAROON,TRIM3#; XL EXTRA,MAROON,MAROON,TRIM3#

main62412-22220-04iGX71,LX70,SX70,YX72198608-198808

BLUE,DARK BLUE,TRIM8#

main62412-22220-05iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

BEIGE,DARK BEIGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-22060-02iSX70..XL198510-198808

XL EXTRA,MAROON,MAROON,TRIM3#

main62413-22060-03iGX71,LX70,MX71,SX70,YX70198408-198608

GRAY,COOL GRAY,TRIM1#

main62413-22060-04iGX71,LX70,SX70,YX72198608-198808

BLUE,DARK BLUE,TRIM8#

main62413-22060-05iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL198408-198608

BEIGE,BEIGE,TRIM4#

main62413-22060-15iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

BEIGE,DARK BEIGE,TRIM4#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-22060-02iSX70..XL198510-198808

XL EXTRA,MAROON,MAROON,TRIM3#

main62414-22060-03iGX71,LX70,MX71,SX70,YX70198408-198608

GRAY,COOL GRAY,TRIM1#

main62414-22060-04iGX71,LX70,SX70,YX72198608-198808

BLUE,DARK BLUE,TRIM8#

main62414-22060-05iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL198408-198608

BEIGE,BEIGE,TRIM4#

main62414-22060-15iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

BEIGE,DARK BEIGE,TRIM4#

62430GARNISH ASSY, ROOF SIDE RAIL, RH

main62431-22110-02iGX71,LX70,SX70..SXL,XG198408-198808

MAROON,MAROON,TRIM3#

main62431-22110-03iGX71,LX70,SX70..SXL,XG198408-198608

GRAY,COOL GRAY,TRIM1#

main62431-22110-04iGX71,LX70,SX70..SXL,XG198608-198808

BLUE,DARK BLUE,TRIM8#

main62431-22110-05iGX71..5F..TWT198510-198608

GT-S PACKAGE,BEIGE,BEIGE,TRIM4#

main62431-22110-15iGX71,LX70,SX70..SXL,XG198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62431-22120-02iGX71,MX71..AVT,GT198408-198808

MAROON,MAROON,TRIM3#

main62431-22120-03iGX71,MX71..AVT,GT198408-198608

GRAY,COOL GRAY,TRIM1#

main62431-22120-04iGX71..AVT,GT198608-198808

BLUE,DARK BLUE,TRIM8#

main62431-22120-05iGX71,MX71..AVT,GT198408-198608

BEIGE,BEIGE,TRIM4#

main62431-22120-15iGX71..AVT,GT198608-198808

BEIGE,DARK BEIGE,TRIM4#

62440GARNISH ASSY, ROOF SIDE RAIL, LH

main62432-22110-02iGX71..5F..TWT198510-198608

GT-S PACKAGE,MAROON,MAROON,TRIM3#

main62432-22110-03iGX71,LX70,SX70..SXL,XG198408-198608

GRAY,COOL GRAY,TRIM1#

main62432-22110-04iGX71,LX70,SX70..SXL,XG198608-198808

BLUE,DARK BLUE,TRIM8#

main62432-22110-05iGX71..5F..TWT198510-198608

GT-S PACKAGE,BEIGE,BEIGE,TRIM4#

main62432-22110-15iGX71,LX70,SX70..SXL,XG198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62432-22120-02iGX71,MX71..AVT,GT198408-198808

MAROON,MAROON,TRIM3#

main62432-22120-03iGX71,MX71..AVT,GT198408-198608

GRAY,COOL GRAY,TRIM1#

main62432-22120-04iGX71..AVT,GT198608-198808

BLUE,DARK BLUE,TRIM8#

main62432-22120-05iGX71,MX71..AVT,GT198408-198608

BEIGE,BEIGE,TRIM4#

main62432-22120-15iGX71..AVT,GT198608-198808

BEIGE,DARK BEIGE,TRIM4#

62461GARNISH, ROOF SIDE TRIM, RH

main62471-91606-02iSX70..XL198510-198808

XL EXTRA,MAROON,MAROON,TRIM3#

main62471-91606-03iLX70,SX70,YX70..KYO,XL198408-198608

GRAY,COOL GRAY,TRIM1#

main62471-91606-04iLX70,SX70,YX72..KYO,XL198608-198808

BLUE,DARK BLUE,TRIM8#

main62471-91606-05iLX70,SX70..XL198408-198608

BEIGE,BEIGE,TRIM4#

main62471-91606-15iLX70,SX70..XL198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62471-91607-02iGX71..5F..TWT198510-198608

GT-S PACKAGE,MAROON,MAROON,TRIM3#

main62471-91607-03iGX71,LX70,SX70..SXL,XG198408-198608

GRAY,COOL GRAY,TRIM1#

main62471-91607-04iGX71,LX70,SX70..SXL,XG198608-198808

BLUE,DARK BLUE,TRIM8#

main62471-91607-05iGX71..5F..TWT198510-198608

GT-S PACKAGE,BEIGE,BEIGE,TRIM4#

main62471-91607-15iGX71,LX70,SX70..SXL,XG198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62471-91608-02iGX71,MX71..AVT,GT198408-198808

MAROON,MAROON,TRIM3#

main62471-91608-03iGX71,MX71..AVT,GT198408-198608

GRAY,COOL GRAY,TRIM1#

main62471-91608-04iGX71..AVT,GT198608-198808

BLUE,DARK BLUE,TRIM8#

main62471-91608-05iGX71,MX71..AVT,GT198408-198608

BEIGE,BEIGE,TRIM4#

main62471-91608-15iGX71..AVT,GT198608-198808

BEIGE,DARK BEIGE,TRIM4#

62462GARNISH, ROOF SIDE TRIM, LH

main62472-91606-02iSX70..XL198510-198808

XL EXTRA,MAROON,MAROON,TRIM3#

main62472-91606-03iLX70,SX70,YX70..KYO,XL198408-198608

GRAY,COOL GRAY,TRIM1#

main62472-91606-04iLX70,SX70,YX72..KYO,XL198608-198808

BLUE,DARK BLUE,TRIM8#

main62472-91606-05iLX70,SX70..XL198408-198608

BEIGE,BEIGE,TRIM4#

main62472-91607-02iGX71..5F..TWT198510-198608

GT-S PACKAGE,MAROON,MAROON,TRIM3#

main62472-91607-03iGX71..5F..TWT198510-198608

GT-S PACKAGE,GRAY,COOL GRAY,TRIM1#

main62472-91607-04iGX71,LX70,SX70..SXL,XG198608-198808

BLUE,DARK BLUE,TRIM8#

main62472-91607-05iGX71..5F..TWT198510-198608

GT-S PACKAGE,BEIGE,BEIGE,TRIM4#

main62472-91607-15iGX71,LX70,SX70..SXL,XG198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62472-91608-02iGX71,MX71..AVT,GT198408-198808

MAROON,MAROON,TRIM3#

main62472-91608-03iGX71,MX71..AVT,GT198408-198608

GRAY,COOL GRAY,TRIM1#

main62472-91608-04iGX71..AVT,GT198608-198808

BLUE,DARK BLUE,TRIM8#

main62472-91608-05iGX71,MX71..AVT,GT198408-198608

BEIGE,BEIGE,TRIM4#

main62472-91608-15iGX71..AVT,GT198608-198808

BEIGE,DARK BEIGE,TRIM4#

62551FGARNISH, REAR SEAT SIDE, RH

main62551-22030-02iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG198408-198808

MAROON,MAROON,TRIM3#

main62551-22030-03iGX71,LX70,MX71,SX70,YX70198408-198608

GRAY,COOL GRAY,TRIM1#

main62551-22030-04iGX71,LX70,SX70,YX72198608-198808

BLUE,DARK BLUE,TRIM8#

main62551-22030-05iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL198408-198608

BEIGE,BEIGE,TRIM4#

main62551-22030-15iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

BEIGE,DARK BEIGE,TRIM4#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-22030-02iSX70..XL198510-198808

XL EXTRA,MAROON,MAROON,TRIM3#

main62552-22030-03iGX71,LX70,MX71,SX70,YX70198408-198608

GRAY,COOL GRAY,TRIM1#

main62552-22030-04iGX71,LX70,SX70,YX72198608-198808

BLUE,DARK BLUE,TRIM8#

main62552-22030-05iGX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL198408-198608

BEIGE,BEIGE,TRIM4#

main62552-22030-15iGX71,LX70,SX70..AVT,GT,SXL,XG,XL198608-198808

BEIGE,DARK BEIGE,TRIM4#

62561PROTECTOR, ROCKER PANEL, INNER FRONT

main62561-22030iGX71,LX70,MX71,SX70,YX7#198408-198808

RH

main62562-22030iGX71,LX70,MX71,SX70,YX7#198408-198808

LH

62561CCLIP (FOR ROCKER PANEL INNER PROTECTOR)

main90467-08056-03×6iGX71,LX70,MX71,SX70,YX7#198408-198808

GRAY,LIGHT GRAY,TRIM1#

62562PROTECTOR, ROCKER PANEL, INNER REAR

main62563-22020iGX71,LX70,MX71,SX70,YX7#198408-198808

RH

main62564-22010iGX71,LX70,MX71,SX70,YX7#198408-198808

LH

6777116080WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-16080

6777130060WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30060

9015950083

main90159-50083

9016840002

main90168-40002

9018904073

main90189-04073

9018905018

main90189-05018

9046305024

main90463-05024

9046710011

main90467-10011

9046805011

main90468-05011

9046805017

main90468-05017

9046807013

main90468-07013

9095901009

main90959-01009

9095901165

main90959-01165

9356014010

main93560-14010

51 parts on this diagram · 1 diagram in section
