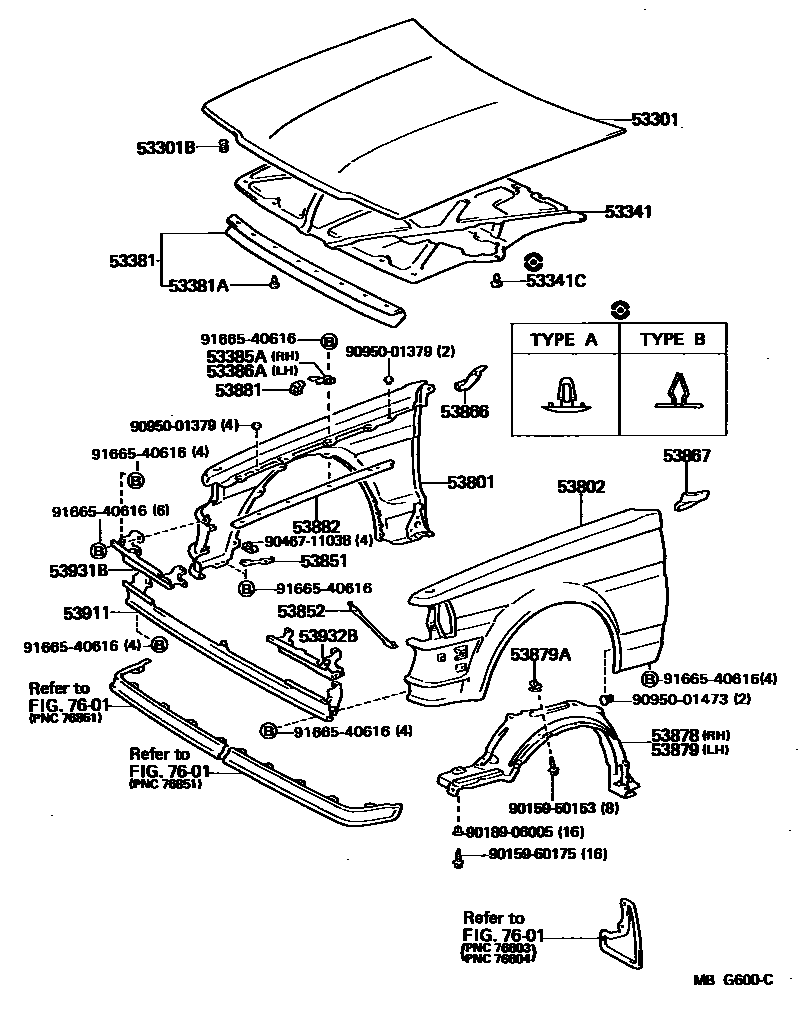

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-91601iGX71,LX70,MX71,SX70,YX70198408-198604

main53301-91602iGX71,LX70,SX70,YX7#198604-198708

main53301-91603iGX71,LX70,SX70,YX72198708-198808

53301BCUSHION, HOOD BUMPER

main90541-15004×2iGX71,LX70,MX71,SX70,YX7#198408-198808

L=29

main90541-15111×2iGX71,LX70,MX71,SX70,YX7#198408-198808

L=26

53341SILENCER, HOOD, NO.1

main53341-22050iYX72198608-198808

main53341-22070iGX71,SX70,YX70..CBR,EFI,LPG198408-198808

main53341-22080iGX71,LX70,MX71..DSL,TBO,TD,TWC,TWT198408-198808

53341CCLIP(FOR HOOD INSULATOR)

main90467-09008×12iGX71,LX70,MX71,SX70,YX70198408-198608

TYPE A

main90467-09008-01×16iGX71,LX70,SX70..CBR,DSL,EFI,TWC; GX71,LX70..TD,TWT198608-198808

BLACK

main90467-13009×3iGX71..TWT198510-198608

TYPE B

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-22060iGX71,MX71,SX70,YX7#198408-198808

main53381-22070iLX70198408-198808

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×7iGX71,LX70,MX71,SX70,YX7#198408-198808

53385ARETAINER, HOOD BUMPER, RH

main53385-14010iGX71,LX70,SX70198608-198808

main53385-22010iGX71,LX70,MX71,SX70,YX70198408-198608

53386ARETAINER, HOOD BUMPER, LH

main53386-14010iGX71,LX70,SX70198608-198808

main53386-22010iGX71,LX70,MX71,SX70,YX70198408-198608

53801FENDER SUB-ASSY, FRONT RH

main53801-91615iGX71,LX70,SX70..AVT,GT,SXL,XG198608-198808

W/*FM

main53801-91616iGX71,LX70,SX70..AVT,GT,SXL,XG198608-198808

W/*DM

main53801-91618iGX71..5F..TWT198510-198608

GT-S PACKEGE,W/*FM

main53801-91620iGX71,LX70,SX70..SXL,XG,XL198408-198608

W/*DM

main53801-91621iLX70,SX70..XL198608-198808

W/*DM

main53801-91622iLX70,SX70..XL198608-198808

W/*FM

53802FENDER SUB-ASSY, FRONT LH

main53802-91615iGX71,LX70,SX70..AVT,GT,SXL,XG198608-198808

W/*FM

main53802-91616iGX71,MX71..AVT,GT198408-198608

W/*DM

main53802-91618iGX71..5F..TWT198510-198608

GT-S PACKEGE,W/*FM

main53802-91620iGX71,LX70,SX70..SXL,XG,XL198408-198608

W/*DM

main53802-91621iLX70,SX70..XL198608-198808

W/*DM

main53802-91622iLX70,SX70..XL198608-198808

W/*FM

53851BRACE, FRONT FENDER TO RADIATOR SUPPORT, RH

main53851-22010iGX71,LX70,MX71,SX70,YX7#198408-198808

53852BRACE, FRONT FENDER TO RADIATOR SUPPORT, LH

main53852-22010iGX71,LX70,MX71,SX70,YX7#198408-198808

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-22030iGX71,LX70,MX71,SX70,YX7#198408-198808

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-22020iGX71,LX70,MX71,SX70,YX7#198408-198808

53878LINER, FRONT FENDER, RH

main53875-22040iGX71,LX70,MX71,SX70,YX7#198408-198808

53879LINER, FRONT FENDER, LH

main53876-22040iGX71,LX70,MX71,SX70,YX7#198408-198808

53879ARETAINER, FRONT FENDER LINER

main53879-22030×8iGX71,LX70,MX71,SX70,YX7#198408-198808

53881BUMPER, FENDER TO HOOD

main53384-22050×2iGX71,LX70,MX71,SX70,YX7#198408-198808

53882PACKING, FRONT FENDER MAIN

main53882-22050×2iGX71,LX70,MX71,SX70,YX7#198408-198808

53911PANEL, FRONT VALANCE

main53901-22090iGX71,LX70,MX71,SX70,YX7#198408-198808

53931BPANEL, FRONT END, RH

main53903-91601iGX71,LX70,MX71,SX70,YX70198408-198608

main53903-91602iGX71,LX70,SX70,YX72198608-198808

53932BPANEL, FRONT END, LH

main53904-91601iGX71,LX70,MX71,SX70,YX70198408-198608

main53904-91602iGX71,LX70,SX70,YX72198608-198808

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9015950153

main90159-50153

9015960175

main90159-60175

9018906005

main90189-06005

9046711038

main90467-11038

9095001379

main90950-01379

9095001473

main90950-01473

9166540616

main91665-40616

30 parts on this diagram · 1 diagram in section
