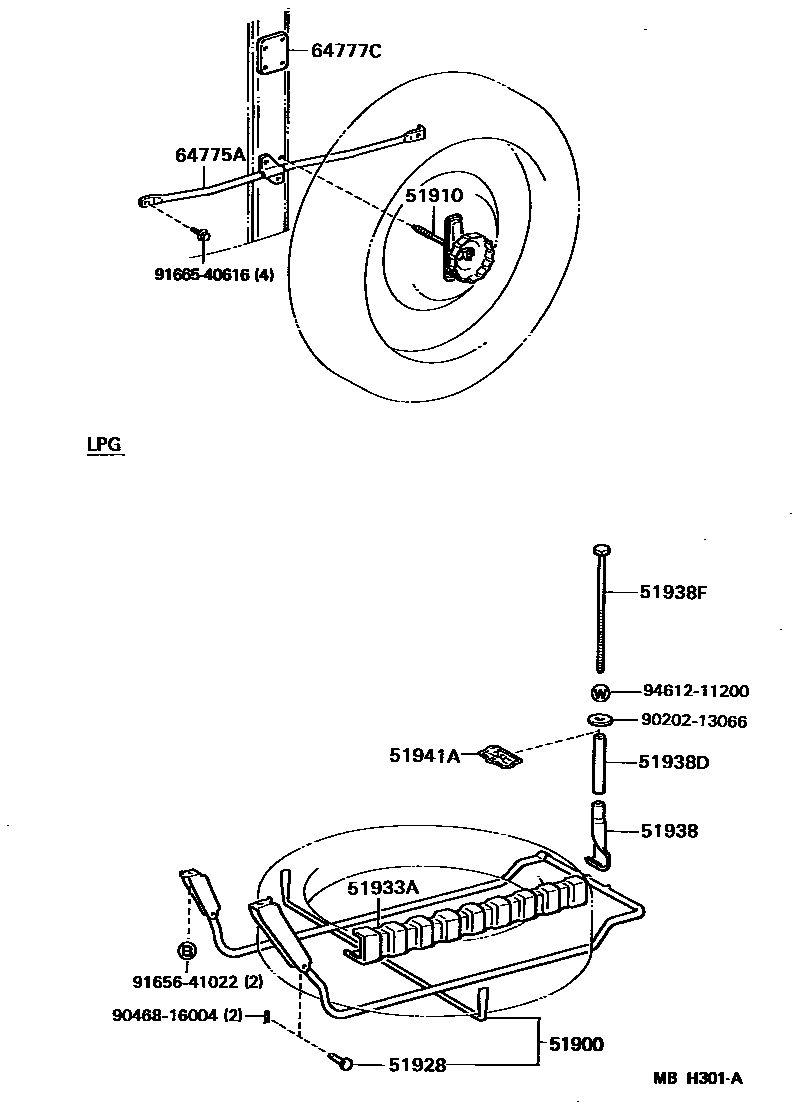

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-22010iYX7#198408-198808

51910SCREW ASSY, SPARE WHEEL CLAMP

main51910-22040iGX71,LX70,MX71,SX70198408-198808

51928PIN, SPARE WHEEL CARRIER

main90240-08014×2iYX7#198408-198808

51933ASTOPPER, SPARE WHEEL, NO.1

main51933-22020iYX7#198408-198808

51938LOCK, SPARE WHEEL CARRIER

main51938-22020iYX7#198408-198808

51938DTUBE(FOR SPARE WHEEL CARRIER BOLT)

main90440-16013iYX7#198408-198808

51938FBOLT(FOR SPARE WHEEL CARRIER LOCK)

main90101-12093iYX7#198408-198808

51941ABRACKET, SPARE WHEEL CARRIER

main51941-22010iYX7#198408-198808

64775AGUARD, SPARE WHEEL

main64775-22010iGX71,LX70,MX71,SX70198408-198808

64777CCUSHION, SPARE WHEEL

main64777-22010iGX71,LX70,MX71,SX70198408-198808

9020213066

main90202-13066

9046816004

main90468-16004

9165641022

main91656-41022

9166540616

main91665-40616

9461211200

main94612-11200

15 parts on this diagram · 1 diagram in section
