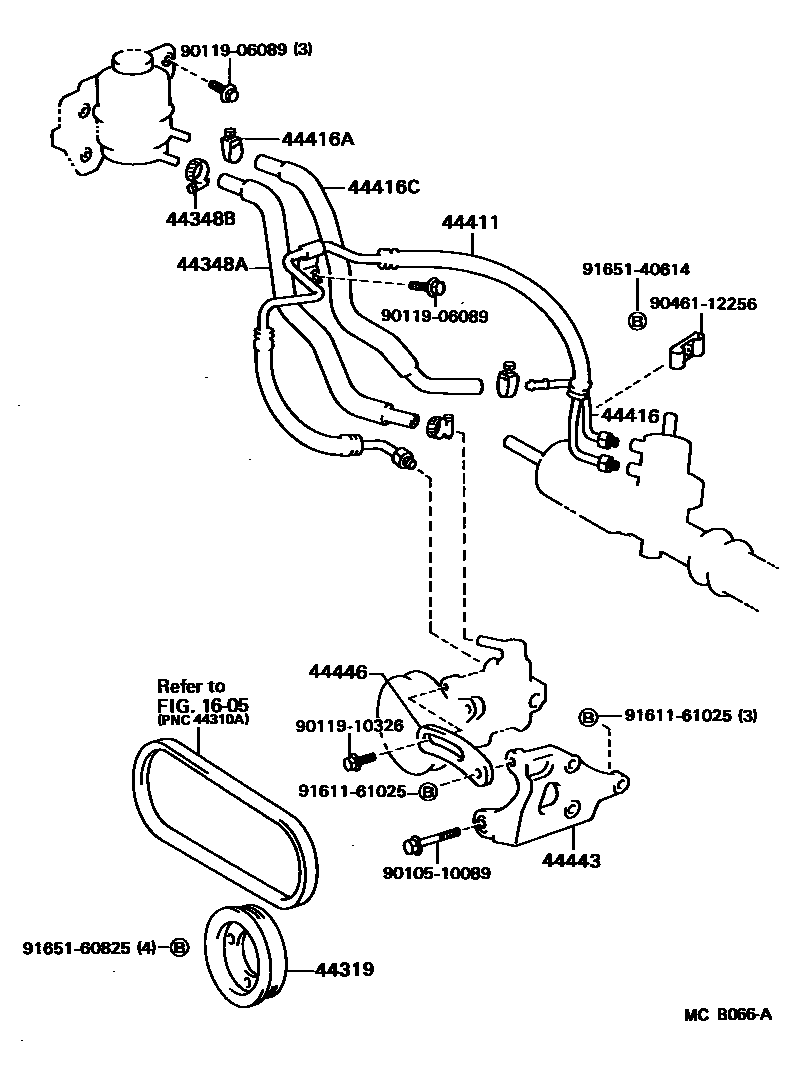

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

1605

44319PULLEY, VANE PUMP DRIVE

main44319-14010iSX70198408-198808

main44319-20010iYX7#198408-198808

main44319-30030iLX70198408-198808

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-22110iLX70198408-198808

main44348-22120iSX70198408-198808

main44348-22140iGX71..TWC,TWT198408-198808

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001iGX71,LX70,SX70..CBR,DSL,TD,TWC,TWT198408-198808

main90467-21005iLX70..KYO198608-198808

sub90467-21010

44411HOSE, PRESSURE FEED

main44411-22310iGX71..EFI198408-198608

main44411-22320iGX71..TWC198408-198808

main44411-22340iSX70..XG,XL198408-198808

main44411-22370iLX70..XG,XL198408-198808

main44411-22400iLX70..KYO198408-198808

main44411-22410iSX70..KYO198408-198808

main44411-22420iYX7#198408-198808

main44411-22430iMX71198408-198510

main44411-22440iGX71..TWT198510-198608

main44411-22450iGX71..EFI198608-198808

main44411-22470iGX71..TWT198608-198808

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-22150iGX71..EFI,TWC198408-198808

main44416-22170iLX70198408-198505

main44416-22171iLX70198505-198808

main44416-22200iYX7#198408-198808

main44416-22220iGX71..4FC..TWC198408-198808

W/ESC

main44416-22240iGX71..TWT198608-198808

44416ACLAMP(FOR RETURN HOSE)

main90460-01001iSX70..XG,XL198408-198808

main90467-16008iLX70..KYO198608-198808

sub90467-16019

44416CHOSE(FOR RETURN TUBE TO RESERVIOR)

main44412-22180iLX70198408-198505

main44412-22181iLX70198505-198808

main44412-22230iYX7#198408-198808

main44412-22260iGX71..TWT198608-198808

main44412-22340iGX71,MX71..EFI,TBO198408-198608

main44412-22350iGX71..TWC,TWT198408-198808

main44412-22400iGX71..EFI198608-198808

44443BRACKET, PUMP

main44443-14020iSX70198408-198808

main44443-22030iGX71..EFI198408-198608

main44443-22050iGX71..TWC198408-198808

main44443-22070iGX71..TWT198510-198808

main44443-22080iLX70198408-198808

main44443-28011iYX70198408-198608

main44443-28021iYX72198608-198808

main44443-30070iMX71198408-198510

main44443-30091iGX71..EFI198608-198808

44446STRUT, ADJUSTING

main44446-14010iSX70198408-198808

main44446-30060iMX71198408-198510

main44446-30070iLX70198408-198808

9010510089

main90105-10089

9011906089

main90119-06089

9011910326

main90119-10326

9046112256

main90461-12256

9161161025

main91611-61025

9165140614

main91651-40614

9165160825

main91651-60825

17 parts on this diagram · 12 diagrams in section
