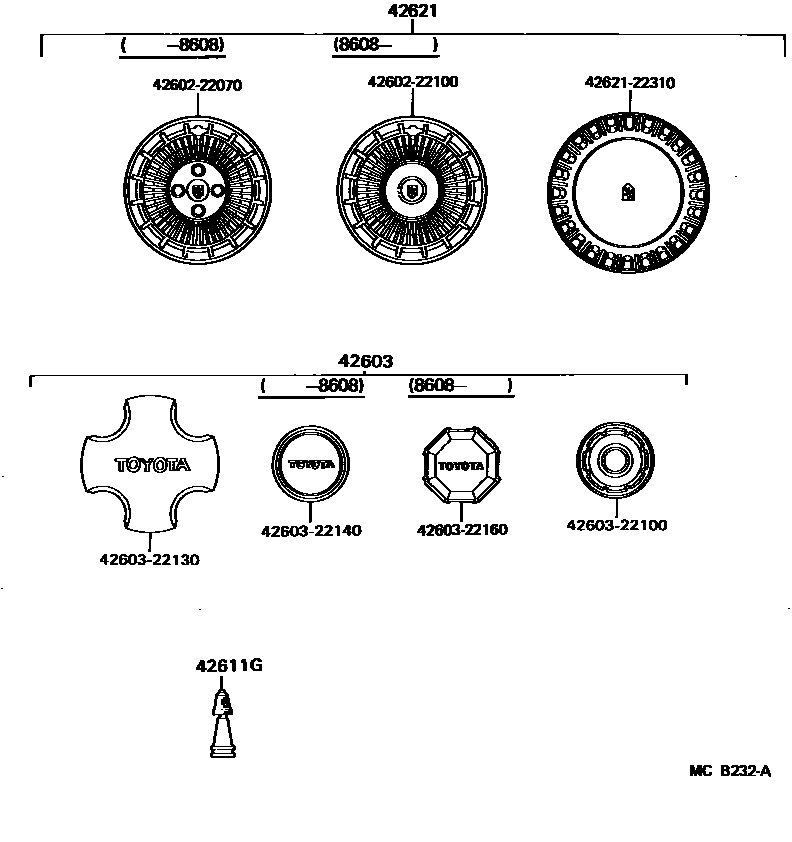

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42602-22100×4iLX70,SX70..XG198708-198710

main42603-22100×4iLX70,SX70,YX7#..KYO198408-198808

main42603-22130×4iGX71,MX71..TBO,TWC,TWT198408-198808

W/6JJ-15,ALUMI WHEEL

main42603-22140×4iGX71,MX71..AVT198408-198608

W/5.5JJ-14,ALUMI WHEEL

main42603-22150×4iGX71..TWC198705

main42603-22160×4iGX71..AVT198608-198808

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×5iGX71,LX70,MX71,SX70,YX7#198408-198808

42621CAP, WHEEL

main42602-22070×4iGX71,MX71..AVT198408-198608

main42602-22100×4iSX70..XL198801-198808

XL-EXTRA

main42621-22310×4iGX71,LX70,SX70..SXL,XG,XL198408-198808

4260222070CAP SUB-ASSY, WHEEL

main42602-22070

4260222100CAP SUB-ASSY, WHEEL

main42602-22100

4260322100ORNAMENT SUB-ASSY, WHEEL HUB

main42603-22100

4260322130ORNAMENT SUB-ASSY, WHEEL HUB

main42603-22130

4260322140ORNAMENT SUB-ASSY, WHEEL HUB

main42603-22140

4260322160ORNAMENT SUB-ASSY, WHEEL HUB

main42603-22160

4262122310CAP, WHEEL

main42621-22310

10 parts on this diagram · 2 diagrams in section
