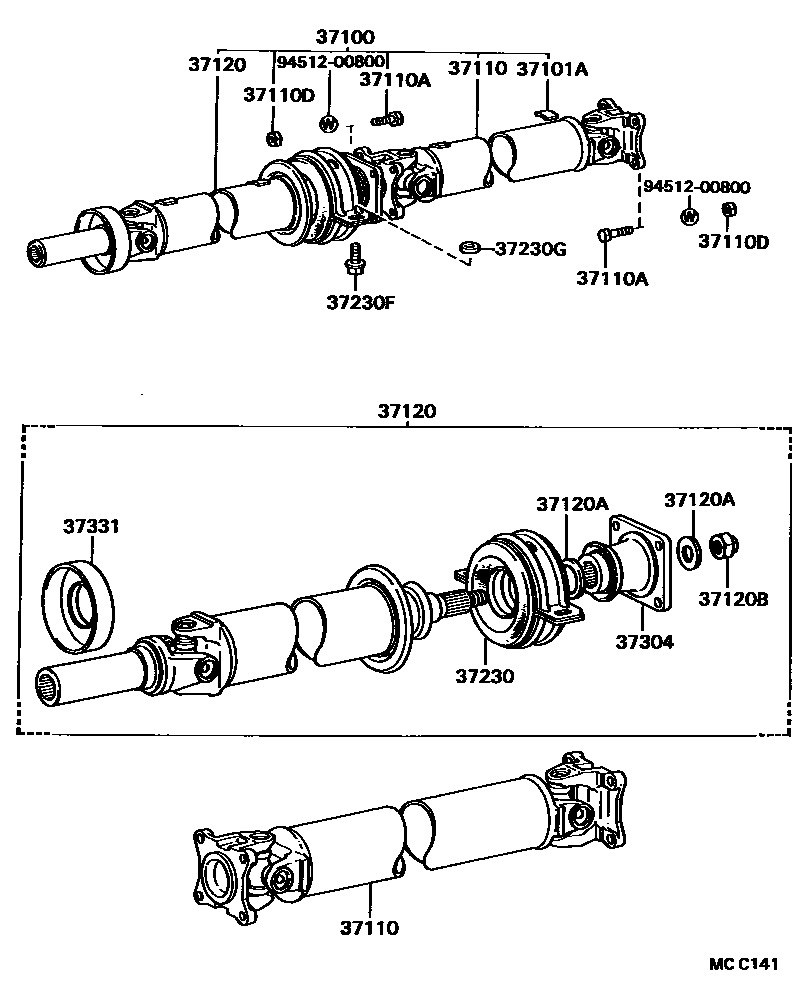

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1 0003 1 0004 1

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-22320iSX70,YX7#..5F198408-198808

main37100-22330iLX70..5F198408-198808

main37100-22340iSX70..4FC198408-198808

main37100-22350iGX71..4FC..TWT198510-198808

main37100-22360iLX70..4FC198408-198808

main37100-22430iGX71..5F..AVT..EFI198408-198808

main37100-22460iGX71..5F..TWT198510-198808

main37100-22470iGX71,MX71..4FC..(TBO,TWC)198408-198808

main37100-22480iGX71..5F..TWC198408-198808

main37100-22500iGX71..5F..SXL198408-198808

main37100-22510iGX71..4FC..EFI198408-198808

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132×3iGX71,LX70,MX71,SX70,YX7#198408-198808

main90937-01136×3iGX71,LX70,MX71,SX70,YX70198408-198608

main90937-01140×3iGX71,LX70,MX71,SX70,YX70198408-198608

main90937-01147×3iGX71,LX70,MX71,SX70,YX7#198408-198808

main90937-01148×3iGX71,LX70,MX71,SX70,YX7#198408-198808

main90937-01149×3iGX71,LX70,MX71,SX70,YX7#198408-198808

main90937-01150×3iGX71,LX70,MX71,SX70,YX7#198408-198808

main90937-01151×3iGX71,LX70,MX71,SX70,YX7#198408-198808

main90937-01152×3iGX71,LX70,MX71,SX70,YX7#198408-198808

main90937-01153×3iGX71,LX70,MX71,SX70,YX70198408-198608

main90937-01154×3iGX71,LX70,MX71,SX70,YX70198408-198608

main90937-01155×3iGX71,LX70,MX71,SX70,YX70198408-198608

main90937-01156×3iGX71,LX70,MX71,SX70,YX70198408-198608

main90937-01157×3iGX71,LX70,MX71,SX70,YX70198408-198608

main90937-01158×3iGX71,LX70,MX71,SX70,YX70198408-198608

main90937-01311×3iGX71,LX70,SX70,YX72198708-198808

37110SHAFT ASSY, PROPELLER

main37110-22100iGX71..5F..TWC198408-198808

main37110-22120iGX71..5F..AVT..EFI198408-198808

main37110-22130iGX71..5F..TWT198510-198808

main37110-22140iGX71..4FC..EFI; GX71..5F..SXL198408-198808

main37110-22150iGX71..4FC..TWT198510-198808

main37110-24010iLX70,SX70,YX7#198408-198808

main37110-24020iGX71,MX71..4FC..(TBO,TWC)198408-198808

37110ABOLT (FOR PROPELLER SHAFT)

main90101-08082×8iGX71,LX70,MX71,SX70,YX7#..AVT,KYO,SXL,XG,XL198408-198808

main90105-10085×4iGX71..TWT198510-198808

37110DNUT (FOR PROPELLER SHAFT)

main90170-08015×8iGX71,LX70,MX71,SX70,YX7#..AVT,KYO,SXL,XG,XL198408-198808

main90179-10059×4iGX71..TWT198510-198808

37120SHAFT ASSY, PROPELLER INTERMEDIATE

main37120-22210iSX70,YX7#..5F198408-198808

main37120-22220iLX70..5F198408-198808

main37120-22230iSX70..4FC198408-198808

main37120-22240iGX71..5F..AVT..EFI198408-198808

main37120-22250iLX70..4FC198408-198808

main37120-22260iGX71..5F..SXL198408-198608

main37120-22270iGX71,MX71..4FC..(AVT,SXL)198408-198808

main37120-22280iGX71..5F..SXL198608-198808

main37120-22330iGX71..5F..TWC198408-198808

main37120-22350iGX71..4FC..TWT198510-198808

main37120-22360iGX71..5F..TWT198510-198808

37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)

main90201-18182iGX71,LX70,MX71,SX70,YX7#198408-198808

main90201-26005iGX71,LX70,MX71,SX70,YX7#198408-198808

37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)

main90179-18009iGX71,LX70,MX71,SX70,YX7#198408-198808

37230BEARING ASSY, CENTER SUPPORT, NO.1

main37230-14050iGX71..5F..(AVT,GT)198408-198808

main37230-22100iLX70..4FC198408-198808

main37230-24020iGX71..4FC; GX71..5F..SXL; LX70..5F; MX71,SX70,YX7#198408-198808

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10046×2iGX71,LX70,MX71,SX70,YX7#198408-198808

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10008×2iGX71..4FC; GX71..5F..SXL; LX70,MX71,SX70,YX7#198408-198808

main90201-10017×2iGX71..4FC; GX71..5F..SXL; LX70,MX71,SX70,YX7#198408-198808

main90201-10033×2iGX71..4FC; GX71..5F..SXL; LX70,MX71,SX70,YX7#198408-198808

main90201-10034×2iGX71,LX70,MX71,SX70,YX7#198408-198808

main90201-10035×2iGX71..4FC; GX71..5F..SXL; LX70,MX71,SX70,YX7#198408-198808

37304FLANGE SUB-ASSY, UNIVERSAL JOINT

main37304-22013iGX71,LX70,MX71,SX70,YX7#..AVT,KYO,SXL,XG,XL198408-198808

main37304-35041iGX71..TWT198510-198808

37331COVER, SLIDING SHAFT DUST

main37331-24010iGX71..4FC..TWT198710-198808

main37331-30010iGX71..5F..TWT;GX71,LX70,MX71,SX70,YX70..AVT,KYO,SXL,XG,XL198408-198808

main37331-40010iGX71..4FC..TWT198510-198710

9451200800

main94512-00800

14 parts on this diagram · 4 diagrams in section
