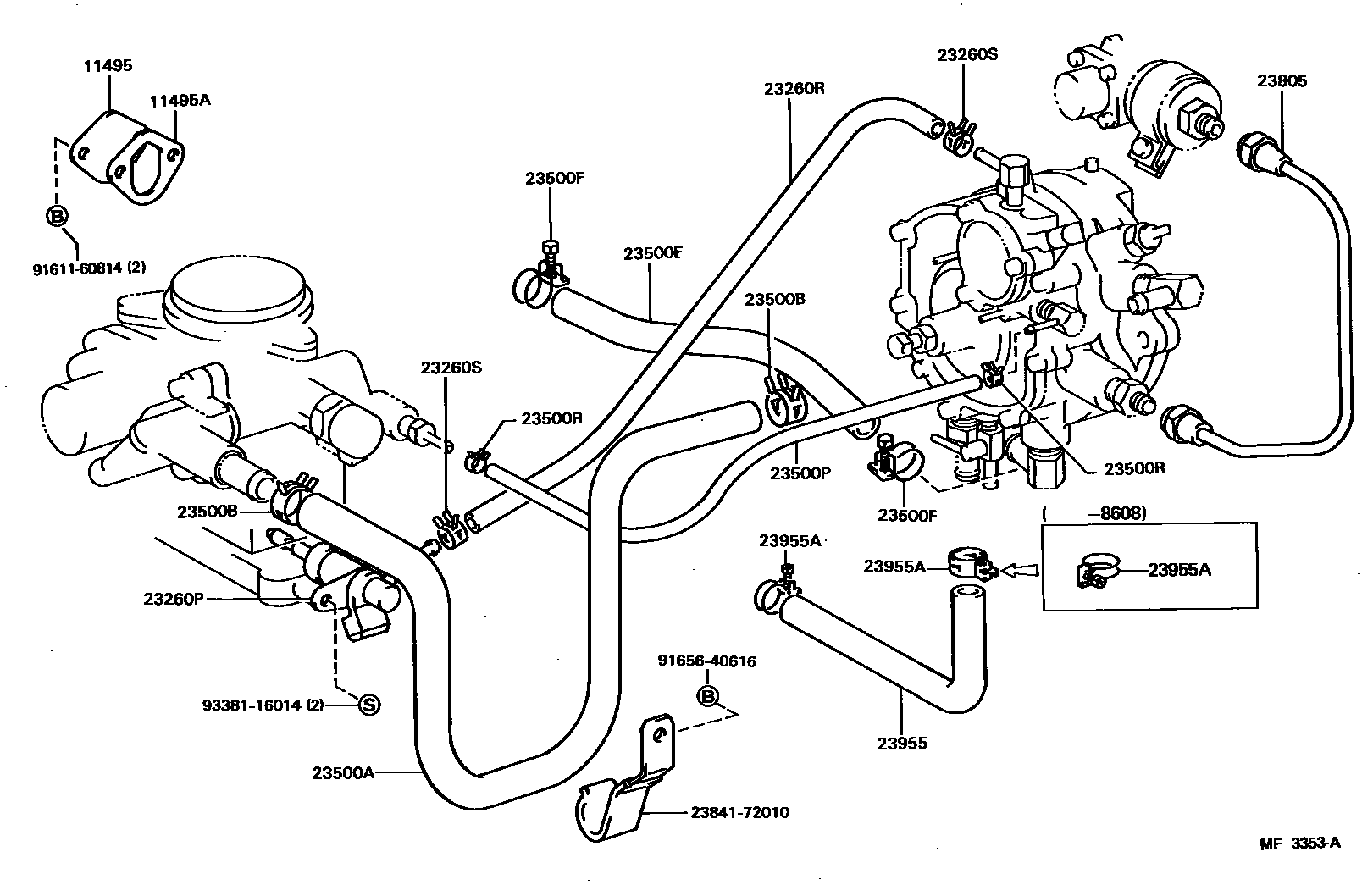

LPG(CARBURETOR) FUEL PIPE

11495PLUG, PLATE(FOR CYLINDER BLOCK)

main11495-40010i2YPU,3YPU..YX7#198408-198808

11495AGASKET, FUEL PUMP(FOR CYLINDER BLOCK PLATE PLUG)

main90923-05005i2YPU,3YPU..YX7#198408-198808

sub90923-05019

23260PINJECTOR ASSY, LPG

main23260-73020i2YPU,3YPU..YX7#198408-198808

sub23260-73040

23260RHOSE, LPG INJECTOR

main95332-08040i2YPU,3YPU..YX7#198408-198702

sub95333-08040

main95333-08040i3YPU..YX72198702-198808

sub95337-08040

23260SCLAMP OR CLIP(FOR LPG INJECTOR HOSE)

main90467-13001i2YPU,3YPU..YX7#198408-198808

sub96135-51300

23500AHOSE, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR)

main23271-72030i2YPU..YX70198408-198608

main23271-73070i3YPU..YX72198608-198808

23500BCLAMP OR CLIP, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR)

main90467-20134i2YPU,3YPU..YX7#198408-198808

23500EHOSE, WATER(FOR LPG REGULATOR INLET)

main99555-20330i2YPU,3YPU..YX7#198408-198808

23500FCLAMP OR CLIP(FOR LPG REGULATOR INLET WATER HOSE)

main96112-10220i2YPU,3YPU..YX7#198408-198808

23500PHOSE, NO.2(FOR LPG REGULATOR TO LPG CARBURETOR)

main95332-04020i2YPU,3YPU..YX7#198408-198702

sub95333-04020

main95333-04020i3YPU..YX72198702-198808

23500RCLAMP OR CLIP, NO.2(FOR LPG REGULATOR TO LPG CARBURETOR)

main96132-30400i2YPU,3YPU..YX7#198408-198808

sub96132-51000

23805PIPE SUB-ASSY, LPG REGULATOR

main23805-72030i2YPU,3YPU..YX7#198408-198808

23955HOSE, REGULATOR WARM UP

main23955-72020i2YPU,3YPU..YX7#198408-198808

23955ACLAMP, HOSE(FOR REGULATOR WARM UP HOSE)

main90467-20005i3YPU..YX72198608-198808

REGULATOR SIDE

sub96134-41900

main96112-10220i2YPU..YX70198408-198608

main96112-10220i3YPU..YX72198608-198808

PIPE SIDE

2384172010CLAMP, FUEL PIPE(HOSE), NO.1

main23841-72010

9161160814

main91611-60814

9165640616

main91656-40616

9338116014

main93381-16014

18 parts on this diagram · 1 diagram in section
