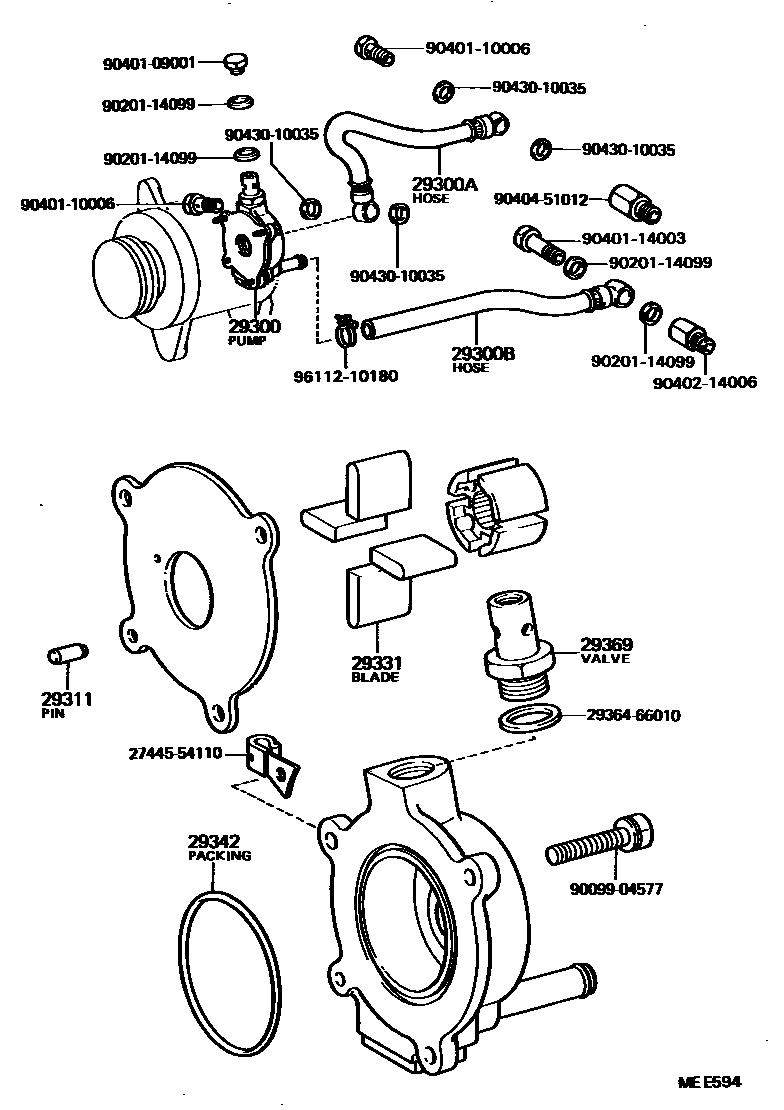

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-54050i2L#..LX70198408-198808

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02077i2L..LX70198408-198808

main90923-02096i2LT..LX70198408-198808

29300BHOSE, VACUUM PUMP OIL OUTLET

main90923-02089i2L#..LX70198408-198808

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i2L#..LX70198408-198708

main90099-08082i2L#..LX70198708-198808

29331BLADE, VACUUM PUMP, A

main29331-56070×4i2L#..LX70198408-198808

29342PACKING, VACUUM PUMP

main96740-02063i2L#..LX70198408-198808

29369VALVE SUB-ASSY, CHECK

main29369-56070i2L#..LX70198408-198808

2744554110

main27445-54110

2936466010WASHER, VACUUM PUMP

main29364-66010

9009904577

main90099-04577

9020114099

main90201-14099

9040109001

main90401-09001

9040110006

main90401-10006

9040114003

main90401-14003

9040214006

main90402-14006

9040451012

main90404-51012

9043010035

main90430-10035

9611210180

main96112-10180

18 parts on this diagram · 1 diagram in section
