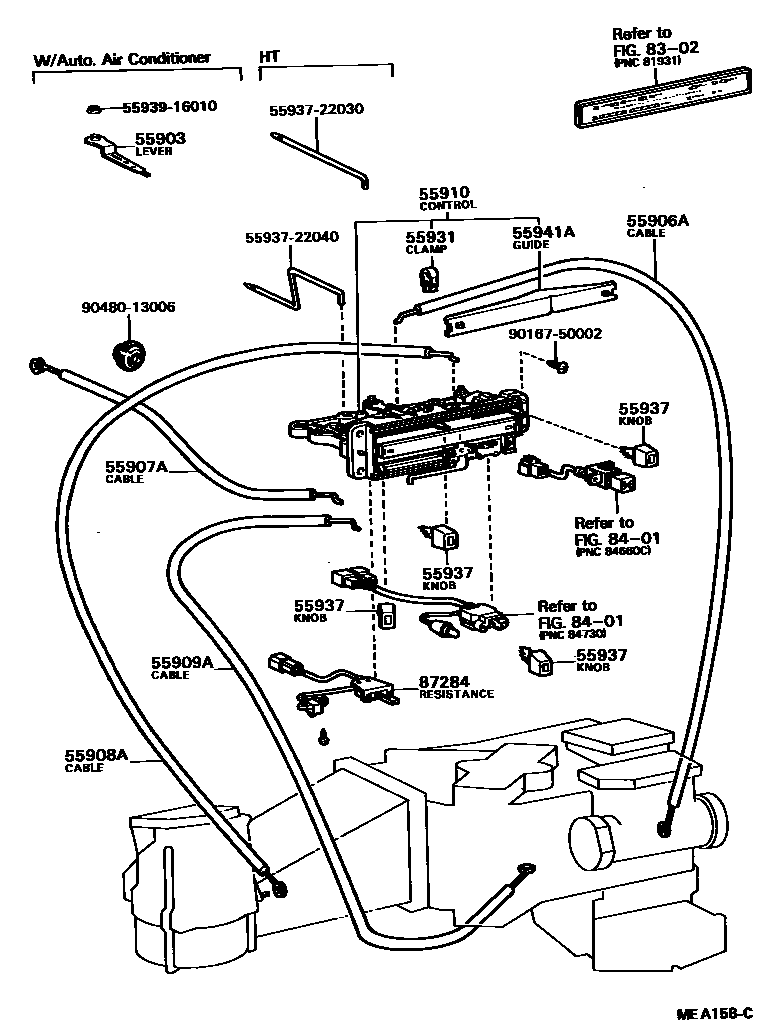

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0003 1 0004 1

55903LEVER SUB-ASSY, HEATER CONTROL

main88899-22100iGX6#,MX61..HT..(SGT,SXL)198009-198407

main88899-22110iGX6#,LX65,MX61..SED..(SGT,SXL)198009-198407

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-22050iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

L=380

main55906-22060iGX6#,LX60,MX61,RX6#,TX60..SED198009-198208

L=430

main55906-22090iGX61,MX61..SED..AVT198208-198407

L=430

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-22090iGX6#,MX61,RX6#,SX60,TX60..HT..(GT,SGT,SXL,XG,XL)198009-198407

L=540

main55907-22110iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED..(DLX,GT,SGT,STD,SXL,XG,XL)198009-198407

L=530

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-22030iGX61,MX61,SX60..HT..(SGT,SXL,XG,XL)198208-198407

L=780

main55908-22040iGX61,LX6#,MX61,SX60..SED..(DLX,SGT,STD,SXL,XG,XL)198208-198407

L=760

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-22020iGX6#,MX61,RX6#,SX60,TX60..HT..(GT,SGT,SXL,XG,XL)198009-198407

L=590

main55909-22030iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED..(DLX,GT,SGT,STD,SXL,XG,XL)198009-198407

L=640

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-22170iGX6#,MX61,RX6#,SX60,TX60..HT..(GT,SGT,SXL,XG,XL)198009-198407

main55910-22180iGX61,MX61..HT..AVT198009-198208

W/AUTOMATIC AIR CONDITIONER

main55910-22190iGX61,MX61..SED..AVT198009-198208

W/AUTOMATIC AIR CONDITIONER

main55910-22230iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED..(DLX,GT,SGT,STD,SXL,XG,XL)198009-198407

main55910-22260iGX61,MX61..HT..AVT198208-198407

W/AUTOMATIC AIR CONDITIONER

main55910-22270iGX61,MX61..SED..AVT198208-198407

W/AUTOMATIC AIR CONDITIONER

55931CLAMP, HEATER CONTROL WIRE

main55933-24010×4iGX61,LX6#,MX61,SX60..DLX,SGT,STD,SXL,XG,XL; GX61,MX61..AVT198208-198407

55937KNOB, HEATER CONTROL LEVER

main55905-22070×4iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

55941AGUIDE, HEATER CONTROL

main55941-22020iGX6#,MX61,RX6#,TX60..HT198009-198208

main55941-22030iGX6#,LX60,MX61,RX6#,TX60..SED198009-198208

main55941-22040iGX61,MX61..HT..AVT198208-198407

main55941-22050iGX61,MX61..SED..AVT198208-198407

8302INDICATOR

→ Go to FIG 83-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87284RESISTOR SUB-ASSY, VARIABLE

main88032-22030iGX6#,LX65,MX61198009-198407

5593722030KNOB, HEATER CONTROL LEVER

main55937-22030

5593722040KNOB, HEATER CONTROL LEVER

main55937-22040

5593916010ORNAMENT, HEATER CONTROL

main55939-16010

9016750002

main90167-50002

9048013006

main90480-13006

17 parts on this diagram · 3 diagrams in section
