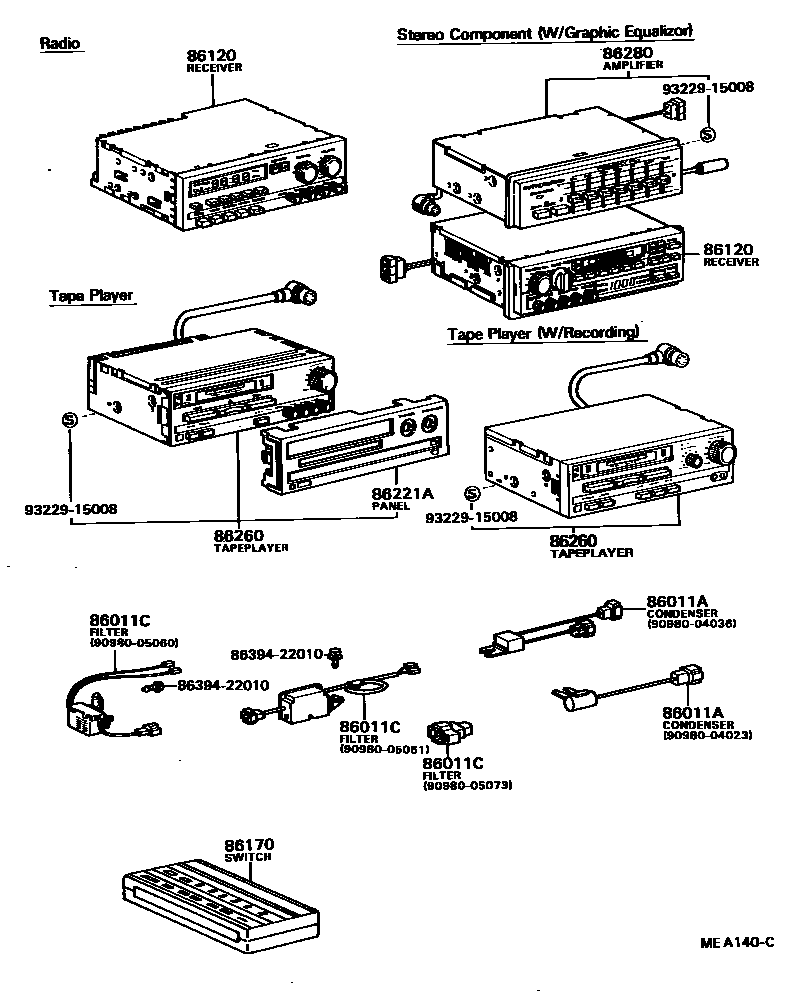

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

86011ACONDENSER, RADIO SETTING

main90980-04023iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

DEFOGGER

main90980-04036iGX6#,MX61,RX6#,SX60,TX60198009-198407

IGNITION COIL

86011CFILTER, NOISE

main90980-05060iGX6#,MX61,RX6#,SX60,TX60..HT198009-198407

DEFOGGER

main90980-05061iGX6#,LX6#,MX61,RX6#,SX60,TX60..SED198009-198407

DEFOGGER

main90980-05073iGX6#,LX6#,MX61,RX6#,SX60,TX60198012-198407

STOP LAMP SW

86120RECEIVER ASSY, RADIO

main86120-14520iLX60,SX60..DLX,STD198208-198407

AM

main86120-14540iGX61,LX65,SX60..SXL,XG198208-198405

*19

main86120-17020iGX61,LX65,SX60..SXL,XG198405-198407

*19

main86120-20401iGX61,MX61198009-198208

*17

main86120-22230iLX60,RX60,TX60..XL198009-198208

*25

main86120-22231iLX60,SX60..XL198208-198407

*25

main86120-22241iGX6#,LX60,MX61,RX6#,TX60198009-198208

*18

main86120-22250iLX60,TX60..DLX198009-198208

AM

main86120-22270iGX60,LX60,RX60,TX60..SXL,XG,XL198009-198208

*19

main86120-22360iGX6#,RX6#..AVT,GT,SGT,SXL,XG198009-198108

*20

main86120-22410iGX6#,MX61,RX6#..AVT,GT,SGT,SXL,XG198108-198208

*20

main86120-22440iGX61,MX61..AVT198208-198407

*20

main86120-22460iGX61,MX61..AVT198208-198407

*17

main86120-22470iGX61,MX61..AVT,SGT198208-198407

*18

86170SWITCH AND VOLUME ASSY, RADIO

main86170-22010iGX61,MX61..AVT198208-198407

*20

86221APANEL, RADIO RECEIVER

main86221-22010iGX60,LX60,RX60,TX60198009-198104

*19

main86221-22020iGX60,LX60,RX60,TX60198009-198104

AM,*25

main86221-22030iGX60,LX60,RX60,TX60198104-198208

*19(RADIO=W/LIGHTING SW)

main86221-22040iGX60,LX60,RX60,TX60198104-198208

AM,*25(RADIO=W/LIGHTING SW)

86260TAPE PLAYER ASSY

main86260-29015iGX60,LX60,RX60,TX60198009-198104

AM,*25

main86260-29035iGX60,LX60,RX60,TX60198009-198104

*19

main86260-29045iGX6#,LX60,MX61,RX6#,TX60198009-198203

RECORDING,*17,*18

main86260-29046iGX61,MX61..AVT,SGT198208-198407

RECORDING

main86260-29055iGX60,LX60,RX60,TX60198104-198208

AM,*25(RADIO=W/LIGHTING SW)

main86260-29065iGX60,LX60,RX60,TX60198104-198208

*19(RADIO=W/LIGHTING SW)

main86260-29075iGX61,LX6#,SX60..DLX,SXL,XG,XL198208-198407

main86260-29105iGX61..AVT..EFI198208-198407

*18

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-29015iGX6#,RX6#..AVT,GT,SGT,SXL,XG198009-198108

main86280-29025iGX6#,MX61,RX6#..AVT,GT,SGT,SXL,XG198108-198208

main86280-29085iGX61,MX61..AVT198208-198407

8639422010

main86394-22010

9098004023

main90980-04023

9098004036

main90980-04036

9098005060

main90980-05060

9098005061

main90980-05061

9098005073

main90980-05073

9322915008

main93229-15008

14 parts on this diagram · 3 diagrams in section
