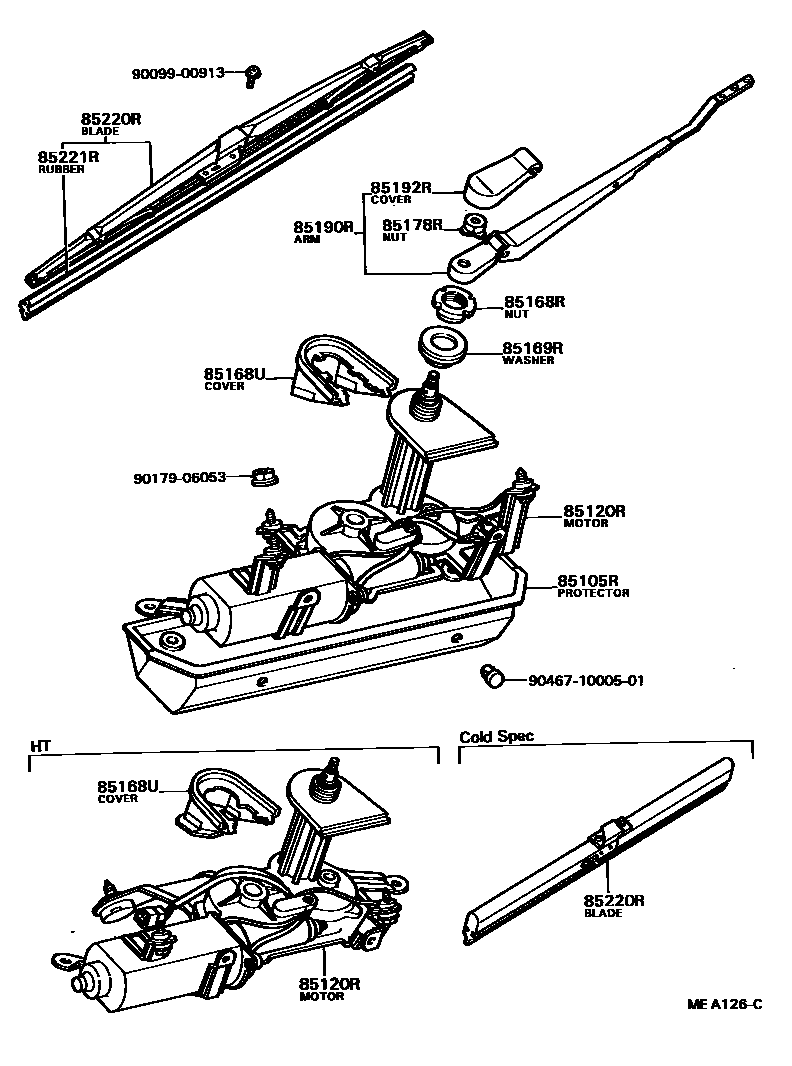

REAR WIPER

85105RPROTECTOR, REAR WIPER

main85105-22020iMX61..SED..SGT198009-198208

main85105-95800iMX61..HT..SGT198009-198407

85120RMOTOR AND BRACKET ASSY, REAR WIPER

main85110-22180iGX61,RX63..SED198009-198208

main85110-95800iGX61..HT..AVT198009-198407

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05150iGX61,RX63198009-198407

85168UCOVER, REAR WIPER

main85168-22131-01iGX61,RX63..SED198009-198208

BLACK,BLACK,TRIM2#

main85168-22131-04iMX61..SED..SGT198009-198208

BLUE,BLUE,TRIM8#

main85168-22131-06iGX61,RX63..SED198009-198208

DARK BROWN,BROWN,TRIM4#

main85168-95800-01iGX61,RX63..HT198009-198208

BLACK,BLACK,TRIM2#

main85168-95800-02iGX61..HT..AVT198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main85168-95800-04iMX61..HT..SGT198009-198208

BLUE,BLUE,TRIM8#

main85168-95800-06iMX61..HT..AVT198009-198407

DARK BROWN,BROWN,TRIM4#

main85168-95800-14iMX61..HT..SGT198208-198407

BLUE,BLUE,TRIM8#

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-22130iMX61..HT..SGT198009-198407

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iGX61..HT..AVT198009-198407

85190RARM ASSY, REAR WIPER

main85190-22340iMX61..SED..SGT198009-198208

main85190-95803iMX61..HT..AVT198009-198407

85192RCOVER, REAR WIPER ARM

main85192-14020iMX61..HT..SGT198009-198407

sub85192-13060

85220RBLADE ASSY, REAR WIPER

main85220-20080iGX61,RX63..SED198009-198208

COLD SPEC

sub85220-20H90

main85220-20100iGX61..HT..AVT198009-198407

sub85220-14400

main85220-22120iMX61..SED..SGT198009-198208

main85220-95800iMX61..HT..AVT198210-198407

COLD SPEC

sub85291-21010

85221RBLADE, REAR WIPER

main85221-16030iGX61,RX63..SED198009-198208

L=380

sub85221-20H90

main85221-20090iGX61,RX63..HT198009-198407

L=446

sub85221-20120

9009900913

main90099-00913

9017906053

main90179-06053

904671000501

main90467-1000501

13 parts on this diagram · 1 diagram in section
