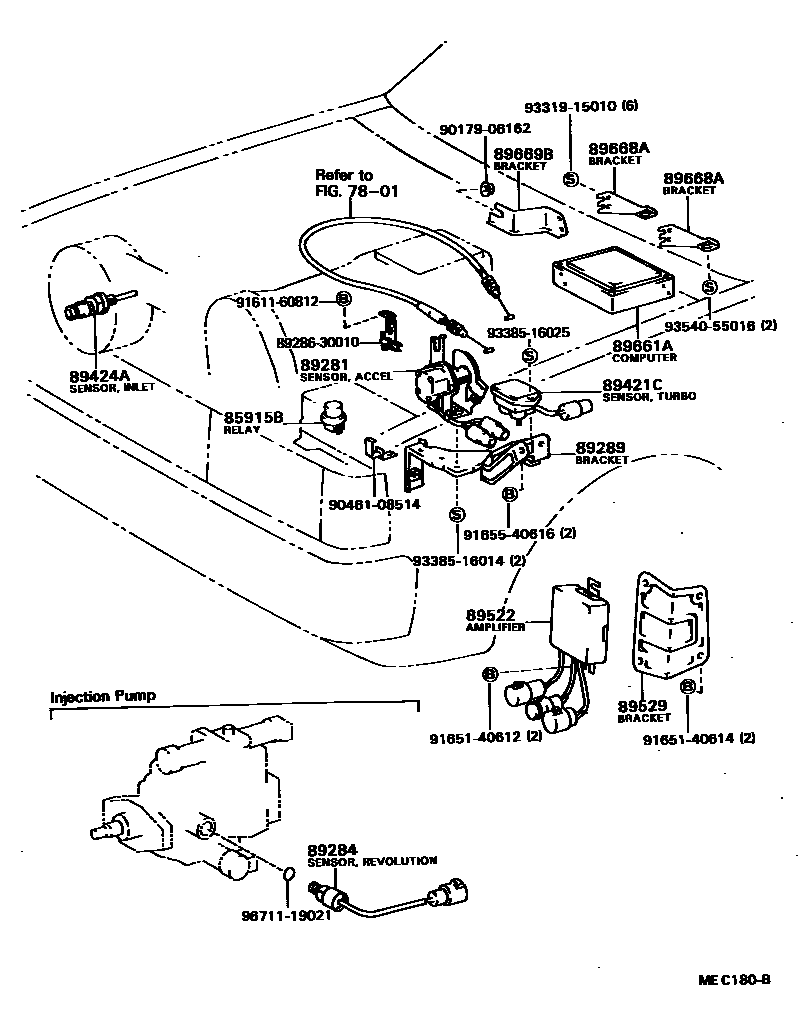

ELECTRONIC CONTROLED DIESEL (ECD)

7801ACCELERATOR LINK

→ Go to FIG 78-01

85915BRELAY, MAIN (FOR DIESEL TURBO)

main90987-02004iLX65198208-198407

89281SENSOR, ACCEL POSITION

main89281-30010iLX65198208-198407

89284SENSOR, DIESEL ENGINE REVOLUTION

main89284-30010iLX65198208-198407

89289BRACKET, ACCEL SENSOR

main89289-22010iLX65198208-198407

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-30020iLX65198208-198407

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-30010iLX65198208-198407

89522AMPLIFIER, SPILL & TIMER SENSOR (FOR DIESEL TURBO)

main89522-22010iLX65198208-198407

89529BRACKET, SENSOR AMPLIFIER (FOR DIESEL TURBO)

main89529-22010iLX65198208-198407

89661ACOMPUTER, ENGINE CONTROL

main89661-22030iLX65198208-198407

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-22030iLX65198208-198407

89669BBRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-22030iLX65198208-198407

8928630010COVER, SUSPENSION CONTROL, RR LH

main89286-30010

9017906162

main90179-06162

9046108514

main90461-08514

9161160812

main91611-60812

9165140612

main91651-40612

9165140614

main91651-40614

9165540616

main91655-40616

9331915010

main93319-15010

9338516014

main93385-16014

9338516025

main93385-16025

9354055016

main93540-55016

9671119021

main96711-19021

24 parts on this diagram · 1 diagram in section
