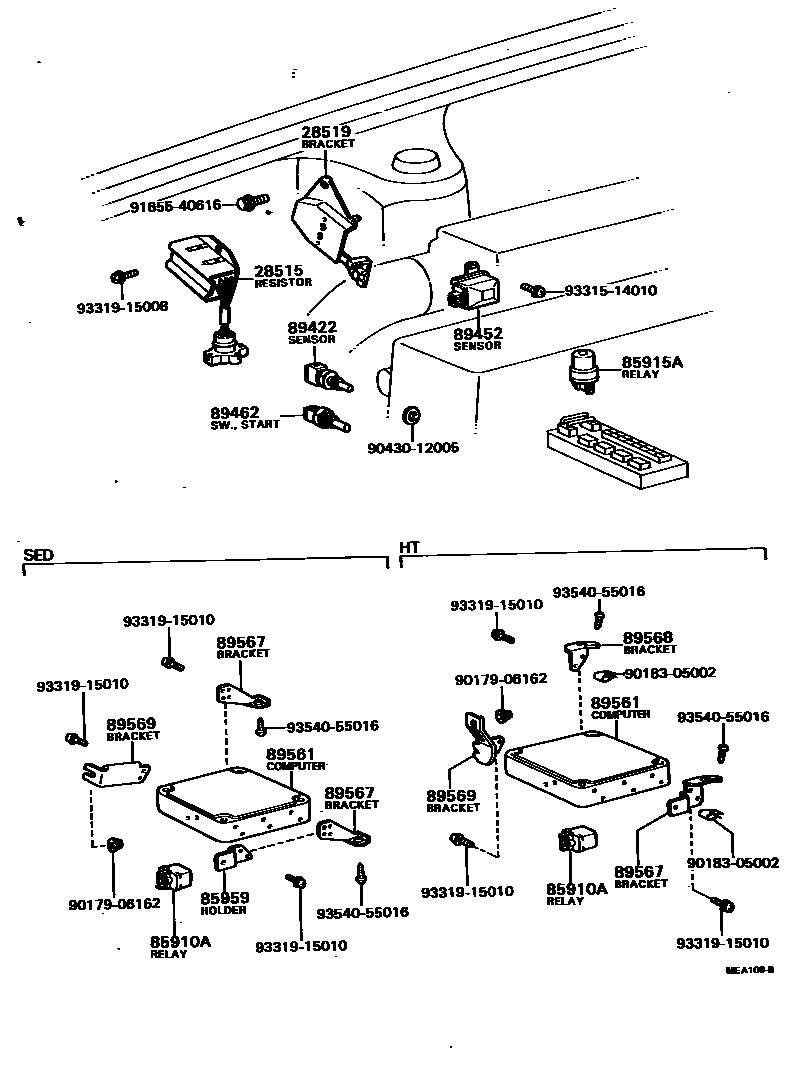

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

28515RESISTOR, SOLENOID

main28515-12011i18RGEU..RX63198009-198208

main28515-41010i1GEU..GX6#198009-198208

main28515-43010iMTEU..MX61198110-198208

28519BRACKET, SOLENOID RESISTOR

main28519-22050i1GEU..GX61198208-198407

main28519-22060i1GGEU,MTEU..GX61,MX61198208-198407

main28519-43020iMTEU..MX61198110-198208

main28519-70010i18RGEU,1GEU..GX6#,RX63198009-198208

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-22040iGX61..TWC198208-198407

main85910-30050iGX6#,MX61,RX63198009-198208

85915ARELAY, MAIN

main90987-02004iGX6#,MX61,RX63198009-198407

85959HOLDER, RELAY

main85959-22010iGX6#,MX61,RX63..SED198009-198407

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30020iGX6#,MX61,RX63198009-198407

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12010iGX61..5F..TWC198208-198308

main89452-14010iRX63198009-198208

main89452-22010iGX6#,MX61198009-198208

main89452-30040iGX61,MX61..TBO,TWC198308-198407

89462SWITCH, START INJECTOR TIME

main89462-30011iMX61,RX63198009-198407

main89462-40010iGX6#198009-198407

89561COMPUTER, FUEL INJECTION

main89561-14022iRX63198009-198208

main89561-22030iGX6#198009-198208

main89561-22070iGX61..EFI198208-198407

main89561-24020iMX61198110-198308

main89661-22020iGX61..5F..TWC198208-198305

main89661-22060iGX61..4FC..TWC198302-198305

main89661-22061iGX61..TWC198305-198308

main89661-22070iMX61198308-198407

main89661-30100iGX61..4FC..TWC198308-198311

main89661-30101iGX61..4FC..TWC198311-198407

main89661-30110iGX61..5F..TWC198308-198311

main89661-30111iGX61..5F..TWC198311-198407

89567BRACKET, FUEL INJECTION COMPUTER

main89567-22070iGX61..HT..TWC198208-198407

main89567-22080×2iGX61..SED..EFI198308-198407

main89667-22030iMX61..HT198308-198407

main89668-22030×2iMX61..SED198308-198407

89568BRACKET, FUEL INJECTION COMPUTER

main89568-22070iGX61..HT..EFI198308-198407

main89668-22030×2iGX61..SED..TWC198208-198407

main89668-22040iGX61..HT..TWC198208-198407

main89668-22050iMX61..HT198308-198407

89569BRACKET, FUEL INJECTION COMPUTER

main89569-22070iGX6#,MX61,RX63..HT..(EFI,TBO)198009-198308

main89569-22080iGX61..SED..EFI198308-198407

main89669-22030iGX61..SED..TWC198208-198407

main89669-22040iGX61..HT..TWC198208-198407

main89669-22070iMX61..HT198308-198407

main89669-22080iMX61..SED198308-198407

9017906162

main90179-06162

9018305002

main90183-05002

9043012005

main90430-12005

9165540616

main91655-40616

9331514010

main93315-14010

9331915008

main93319-15008

9331915010

main93319-15010

9354055016

main93540-55016

20 parts on this diagram · 4 diagrams in section
