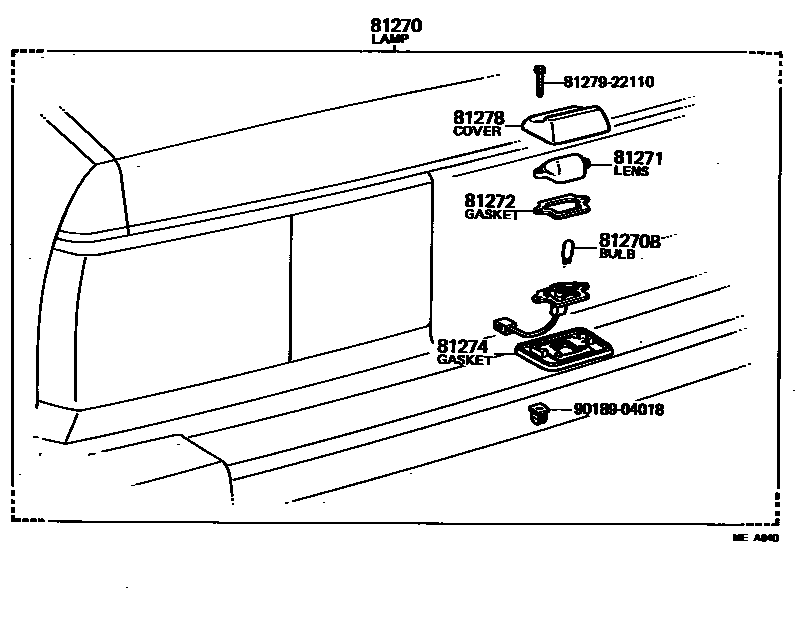

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-20210×2iGX61,LX6#,MX61,SX60..SED198208-198407

main81270-29535×2iGX6#,LX60,MX61,RX6#,TX60198009-198208

main81270-29795iGX61,MX61,SX60..HT198208-198407

RH

main81690-29185iGX61,MX61,SX60..HT198208-198407

LH

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-11100×2iGX61,LX6#,MX61,SX60..SED198208-198407

main99132-12050×2iGX6#,LX60,MX61,RX6#,TX60198009-198208

81271LENS, LICENSE PLATE LAMP

main81271-20210×2iGX61,LX6#,MX61,SX60..SED198208-198407

main81271-22110×2iGX6#,LX60,MX61,RX6#,TX60198009-198208

main81271-95801×2iGX61,MX61,SX60..HT198208-198407

81272GASKET, LICENSE PLATE LAMP LENS

main81272-20210×2iGX61,LX6#,MX61,SX60..SED198208-198407

main81272-22110×2iGX6#,LX60,MX61,RX6#,TX60198009-198208

main81272-95801×2iGX61,MX61,SX60..HT198208-198407

81274GASKET, LICENSE PLATE LAMP BODY

main81274-22110×2iGX6#,LX60,MX61,RX6#,TX60198009-198208

81278COVER, LICENSE PLATE LAMP

main81276-22110×2iGX6#,LX60,MX61,RX6#,TX60198009-198208

main81276-95801×2iGX61,MX61,SX60..HT198208-198407

8127922110WASHER, SIDE TURN SIGNAL LAMP

main81279-22110

9018904018

main90189-04018

8 parts on this diagram · 2 diagrams in section
