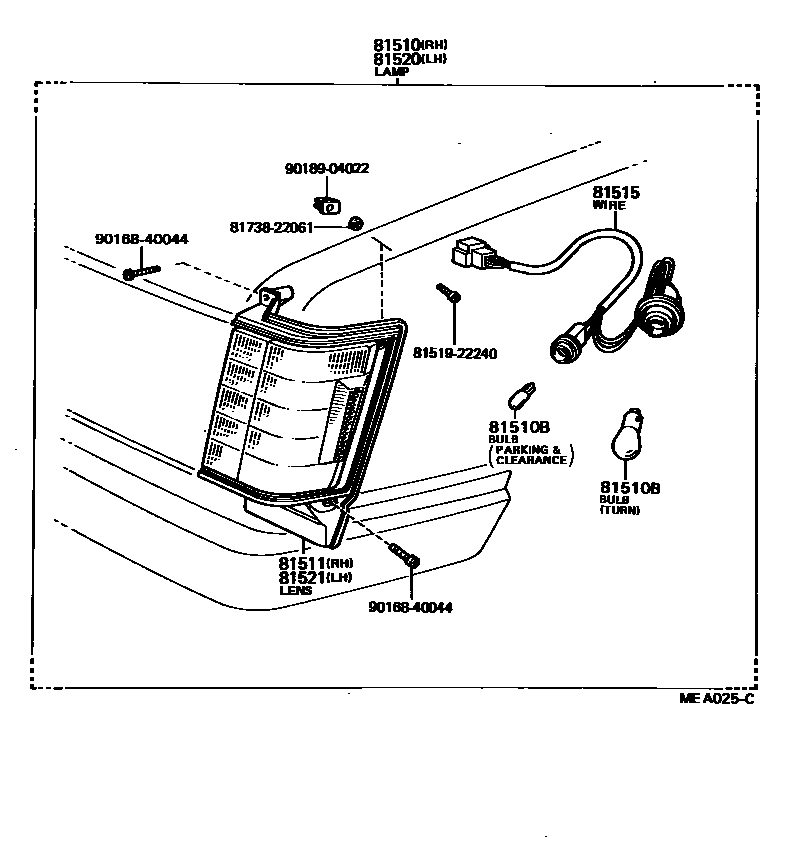

FRONT TURN SIGNAL LAMP

0001 1 0002 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-29665iGX6#,LX60,RX6#,TX60198009-198105

main81510-29705iGX61,LX6#,MX61,SX60198208-198407

main81510-29715iGX6#,LX60,MX61,RX6#,TX60198105-198208

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11230×2iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

main99132-12050×2iGX6#,LX60,MX61,RX6#,TX60198009-198208

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-22220iGX61,LX6#,MX61,SX60198208-198407

main81511-22240iGX6#,LX60,RX6#,TX60198009-198105

main81511-22260iGX6#,LX60,MX61,RX6#,TX60198105-198208

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81515-22240×2iGX6#,LX60,MX61,RX6#,TX60198009-198208

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-29665iGX6#,LX60,RX6#,TX60198009-198105

main81520-29695iGX61,LX6#,MX61,SX60198208-198407

main81520-29705iGX6#,LX60,MX61,RX6#,TX60198105-198208

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-22220iGX61,LX6#,MX61,SX60198208-198407

main81521-22240iGX6#,LX60,RX6#,TX60198009-198105

main81521-22260iGX6#,LX60,MX61,RX6#,TX60198105-198208

8151922240BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-22240

8173822061

main81738-22061

9016840044

main90168-40044

9018904022

main90189-04022

10 parts on this diagram · 2 diagrams in section
