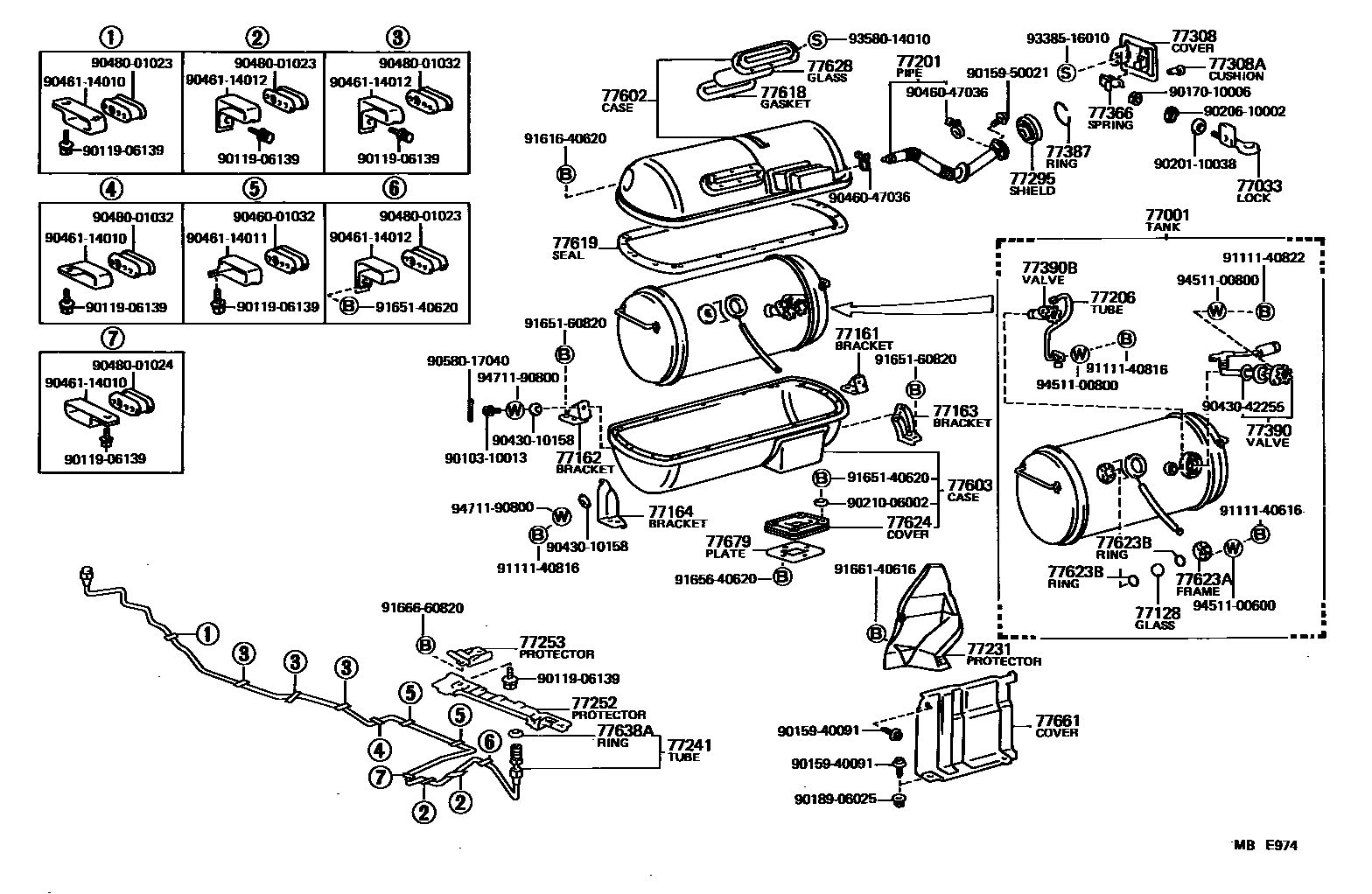

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

77001TANK ASSY, FUEL (LPG)

main77001-22160iSX60..LPG198302-198407

*30

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-12010iGX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL198009-198407

main77037-22020iSX60..LPG198302-198407

*30

77128GLASS, FUEL TANK WINDOW

main77128-20010iSX60..LPG198302-198407

*30

77161BRACKET, FUEL TANK, FRONT RH

main77162-20020iSX60..LPG198302-198407

*30

77162BRACKET, FUEL TANK, FRONT LH

main77162-20020iSX60..LPG198302-198407

*30

77163BRACKET, FUEL TANK, REAR RH

main77163-20040iSX60..LPG198302-198407

*30

77164BRACKET, FUEL TANK, REAR LH

main77164-20030iSX60..LPG198302-198407

*30

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-22100iGX6#,LX60,MX61,RX6#,TX60198009-198203

main77201-22121iSX60..LPG198302-198407

*30

main77201-22130iGX6#,LX6#,MX61,RX6#,SX60,TX60198203-198407

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-22060iLX6#198009-198407

main77017-22070iGX6#198009-198109

main77017-22080iRX60,SX60,TX60198009-198407

main77017-22100iRX63198009-198109

main77032-22010iGX6#,MX61198109-198407

main77032-22020iRX63198109-198208

main77203-22020iSX60..LPG198302-198407

*30

77231PROTECTOR, INLET TUBE

main77277-22020iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

77241TUBE, FUEL MAIN, NO.1

main77205-22090iSX60..LPG198302-198407

*30

main77251-22201iRX60,TX60198009-198208

sub77251-22370

main77251-22210iGX6#,MX61198009-198407

sub77251-22250

main77251-22220iRX63198009-198208

main77251-22230iLX6#198009-198407

main77251-22260iSX60198208-198407

77252PROTECTOR, FUEL TUBE

main77266-22020iGX6#,LX6#,MX61,SX60198009-198407

main77266-22030iRX6#,TX60198009-198208

main77266-22030iSX60..LPG198302-198407

*30

77253PROTECTOR, FUEL TUBE, NO.2

main77267-22010iGX6#,LX6#,MX61,SX60198009-198407

main77267-22020iSX60..LPG198302-198407

*30

main77267-22020iRX6#,TX60198009-198208

77295SHIELD, FUEL FILLER PIPE

main77291-22010iGX6#,LX60,MX61,RX6#,TX60198009-198203

LWR

main77291-22030iGX6#,LX6#,MX61,RX6#,SX60,TX60198203-198407

LWR

main77292-22050iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

UPR

main77292-22070iSX60..LPG198302-198407

*30

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-22030iSX60..STD198009-198407

main77350-22040iGX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL198208-198407

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-08003iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-12010iGX6#,LX60,MX61,RX6#,TX60198009-198407

77387RING, FUEL INLET BOX

main77391-16010iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

77390VALVE ASSY, FUEL TANK INLET

main77390-22010iSX60..LPG198302-198407

*30

77390BVALVE, FUEL TANK OUTLET

main90977-01019iSX60..LPG198302-198407

*30

77602CASE SUB-ASSY, FUEL TANK, UPPER

main77601-22030iSX60..LPG198302-198407

*30

77603CASE SUB-ASSY, FUEL TANK, LOWER

main77602-22040iSX60..LPG198302-198407

*30

77618GASKET, CASE WINDOW

main77618-30010iSX60..LPG198302-198407

*30

77619SEAL, FUEL TANK VALVE COVER TO FLOOR

main77619-22020iSX60..LPG198302-198407

*30

77623AFRAME, TANK COVER WINDOW GLASS

main77623-20021iSX60..LPG198302-198407

*30

77623BRING, O (FOR TANK COVER WINDOW GLASS FRAME)

main90301-34208iSX60..LPG198302-198407

*30,ID=34.4

main90301-39209iSX60..LPG198302-198407

*30,ID=39.4

77624COVER, FUEL TANK OUTLET, LOWER

main77624-22020iSX60..LPG198302-198407

*30

77628GLASS, CASE COVER WINDOW

main77628-30010iSX60..LPG198302-198407

*30

77638ARING, O (FOR TANK VALVE JOINT SLEEVE)

main96712-24011iSX60..LPG198302-198407

*30

77661COVER, FUEL INLET PIPE

main77661-22030iSX60..LPG198302-198407

*30

77679PLATE, FUEL TANK OUTLET COVER SET, NO.3

main77679-22010iSX60..LPG198302-198407

*30

9010310013

main90103-10013

9011906139

main90119-06139

9015940091

main90159-40091

9015950021

main90159-50021

9017010006

main90170-10006

9018906025

main90189-06025

9020110038

main90201-10038

9020610002

main90206-10002

9021006002

main90210-06002

9043010158

main90430-10158

9043042255

main90430-42255

9046001032

main90460-01032

9046047036

main90460-47036

9046114010

main90461-14010

9046114011

main90461-14011

9046114012

main90461-14012

9048001023

main90480-01023

9048001024

main90480-01024

9048001032

main90480-01032

9058017040

main90580-17040

9111140616

main91111-40616

9111140816

main91111-40816

9111140822

main91111-40822

9161640620

main91616-40620

9165140620

main91651-40620

9165160820

main91651-60820

9165640620

main91656-40620

9166140616

main91661-40616

9166660820

main91666-60820

9338516010

main93385-16010

9358014010

main93580-14010

9451100600

main94511-00600

9451100800

main94511-00800

9471190800

main94711-90800
