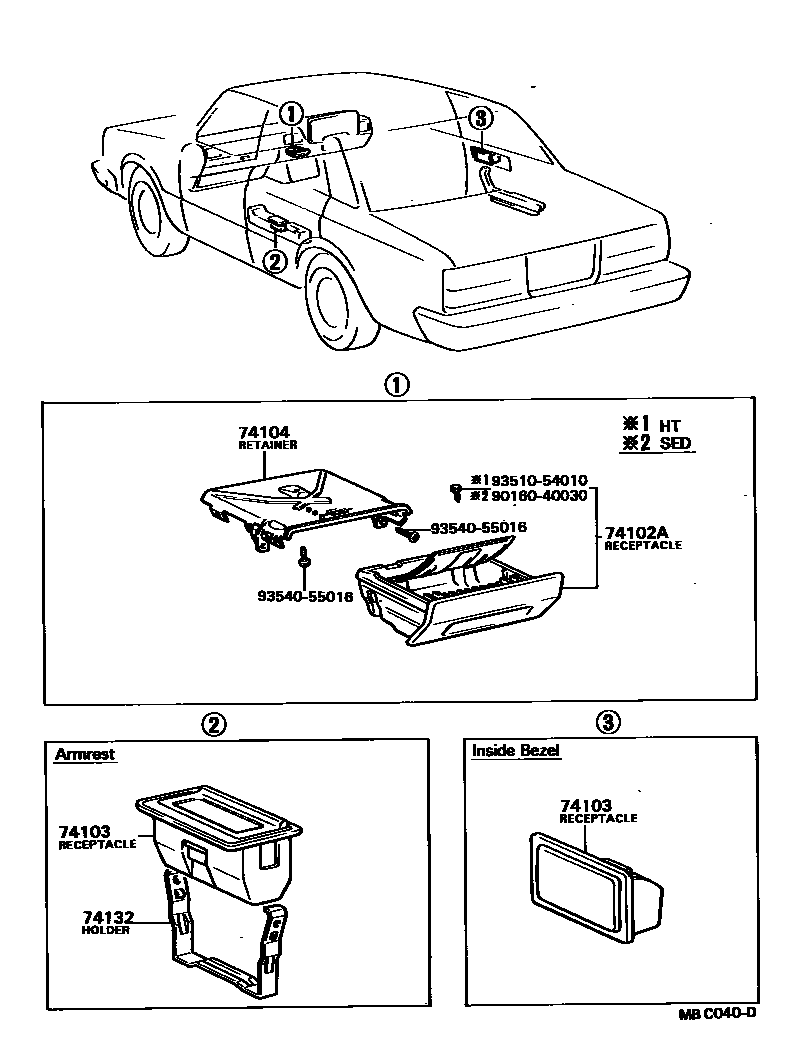

ASH RECEPTACLE
74102ARECEPTACLE ASSY, FRONT ASH
BLACK,BLACK,TRIM2#
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
74103RECEPTACLE SUB-ASSY, ASH, NO.1
BLACK,BLACK,TRIM2#
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
*EXT,DEEP MAROON,RED/MAROON,TRIM3#; DEEP MAROON,RED/MAROON,TRIM3#
*EXT,BLUE,BLUE,TRIM8#; BLUE,BLUE,TRIM8#
*EXT,DARK BROWN,BROWN,TRIM4#; DARK BROWN,BROWN,TRIM4#
W/*PW
74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74132HOLDER, REAR ASH RECEPTACLE
9016040030
main90160-40030
9351054010
main93510-54010
9354055016
main93540-55016
7 parts on this diagram · 1 diagram in section
