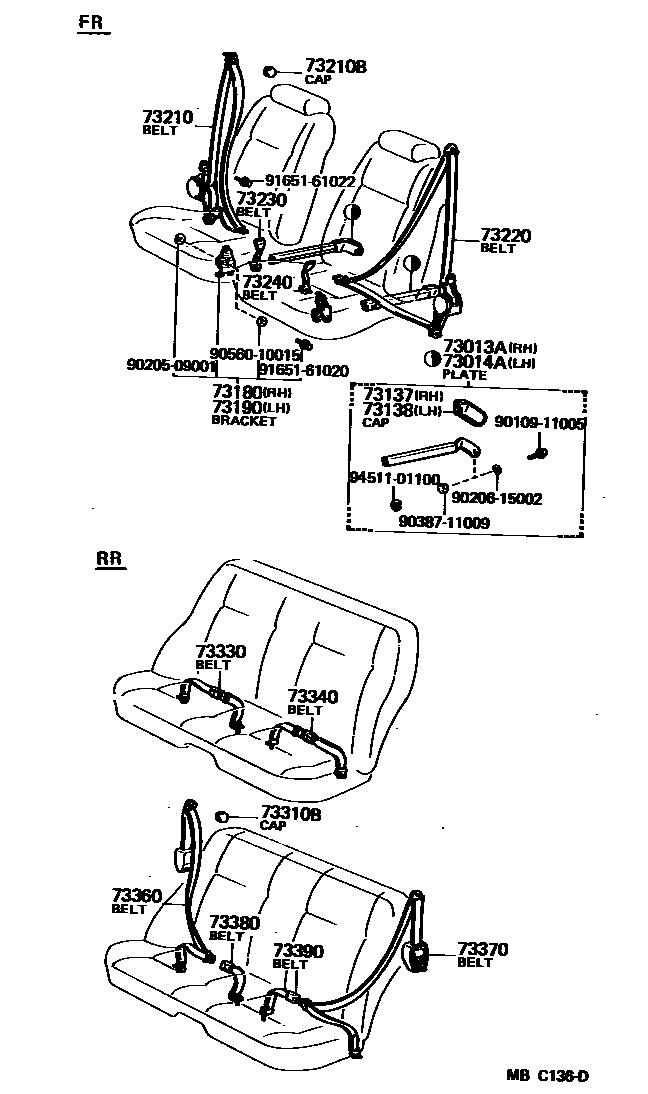

SEAT BELT & CHILD RESTRAINT SEAT

73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH

main73013-22010-01iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLACK,BLACK,TRIM2#

main73013-22010-04iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLUE,BLUE,TRIM8#

main73013-22010-06iGX6#,LX60,MX61,RX6#,TX60198009-198208

DARK BROWN,BROWN,TRIM4#

main73013-22030-02iGX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main73013-22030-06iGX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL198208-198407

DARK BROWN,BROWN,TRIM4#

main73013-22030-14iGX61,LX6#,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH

main73014-22010-01iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLACK,BLACK,TRIM2#

main73014-22010-04iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLUE,BLUE,TRIM8#

main73014-22010-06iGX6#,LX60,MX61,RX6#,TX60198009-198208

DARK BROWN,BROWN,TRIM4#

main73014-22030-02iGX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main73014-22030-06iGX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL198208-198407

DARK BROWN,BROWN,TRIM4#

main73014-22030-14iGX61,LX6#,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

73137CAP, FRONT SEAT BELT INNER ANCHOR, RH

main73137-22010-01iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLACK,BLACK,TRIM2#

main73137-22010-04iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLUE,BLUE,TRIM8#

main73137-22010-06iGX6#,LX60,MX61,RX6#,TX60198009-198208

DARK BROWN,BROWN,TRIM4#

main73137-22020-02iGX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main73137-22020-06iGX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL198208-198407

DARK BROWN,BROWN,TRIM4#

main73137-22020-14iGX61,LX6#,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

73138CAP, FRONT SEAT BELT INNER ANCHOR, LH

main73138-22010-01iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLACK,BLACK,TRIM2#

main73138-22010-04iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLUE,BLUE,TRIM8#

main73138-22010-06iGX6#,LX60,MX61,RX6#,TX60198009-198208

DARK BROWN,BROWN,TRIM4#

main73138-22020-02iGX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main73138-22020-06iGX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL198208-198407

DARK BROWN,BROWN,TRIM4#

main73138-22020-14iGX61,LX6#,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH

main73011-22010iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH

main73012-22010iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-22190-03iGX6#,LX60,MX61,RX6#,TX60198009-198208

GRAY,GRAY,TRIM2#

main73210-22190-04iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLUE,BLUE,TRIM8#

main73210-22190-05iGX6#,LX60,MX61,RX6#,TX60198009-198208

GREIGE,BEIGE,TRIM4#

main73210-22230-02iGX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL198208-198407

ROSE BEIGE,RED/MAROON,TRIM4#

main73210-22230-06iGX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL198208-198407

LIGHT BROWN,BROWN,TRIM4#

main73210-22230-14iGX61,LX6#,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

73210BCAP (FOR FRONT SEAT OUTER BELT)

main73178-12010-04×2iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLUE,BLUE,TRIM8#

main73178-12010-11×2iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLACK,BLACK,TRIM2#

main73178-12010-26×2iGX6#,LX60,MX61,RX6#,TX60198009-198208

DARK BROWN,BROWN,TRIM4#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73210-22190-03iGX6#,LX60,MX61,RX6#,TX60198009-198208

GRAY,GRAY,TRIM2#

main73210-22190-04iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLUE,BLUE,TRIM8#

main73210-22190-05iGX6#,LX60,MX61,RX6#,TX60198009-198208

GREIGE,BEIGE,TRIM4#

main73210-22230-02iGX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL198208-198407

ROSE BEIGE,RED/MAROON,TRIM3#

main73210-22230-06iGX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL198208-198407

LIGHT BROWN,BROWN,TRIM4#

main73210-22230-14iGX61,LX6#,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-22130-01iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLACK,BLACK,TRIM2#

main73230-22130-02iGX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main73230-22130-04iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLUE,BLUE,TRIM8#

main73230-22130-06iGX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL198009-198407

DARK BROWN,BROWN,TRIM4#

main73230-22130-14iGX61,LX6#,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-22130-01iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLACK,BLACK,TRIM2#

main73230-22130-02iGX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL198208-198407

ROSE BEIGE,RED/MAROON,TRIM3#

main73230-22130-04iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLUE,BLUE,TRIM8#

main73230-22130-06iGX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL198009-198407

DARK BROWN,BROWN,TRIM4#

main73230-22130-14iGX61,LX6#,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

73310BCAP (FOR REAR SEAT OUTER BELT)

main73178-12010-04×2iGX61,MX61..SED..AVT198009-198208

BLUE,BLUE,TRIM8#

main73178-12010-11×2iGX61,MX61..SED..AVT198009-198208

BLACK,BLACK,TRIM2#

main73178-12010-26×2iGX61,MX61..SED..AVT198009-198208

DARK BROWN,BROWN,TRIM4#

73330BELT ASSY, REAR SEAT LAP TYPE, RH

main73330-22040-03iGX61,MX61..HT;GX60,LX60,RX6#,TX60;GX61,MX61..SED..SGT198009-198208

GRAY,GRAY,TRIM2#

main73330-22040-04iGX61,MX61..HT;GX60,LX60,RX6#,TX60;GX61,MX61..SED..SGT198009-198208

BLUE,BLUE,TRIM8#

main73330-22040-05iGX61,MX61..HT;GX60,LX60,RX6#,TX60;GX61,MX61..SED..SGT198009-198208

GREIGE,BEIGE,TRIM4#

main73330-22060-02iGX61,MX61..HT;LX6#,SX60..DLX,SXL,XG,XL;GX61,MX61..SED..(SGT,SXL)198208-198407

ROSE BEIGE,RED/MAROON,TRIM3#

main73330-22060-06iGX61,MX61..HT;LX6#,SX60..DLX,SXL,XG,XL;GX61,MX61..SED..(SGT,SXL)198208-198407

LIGHT BROWN,BROWN,TRIM4#

main73330-22060-14iLX6#,SX60;GX61,MX61..HT;GX61,MX61..SED..(SGT,SXL)198208-198407

BLUE,BLUE,TRIM8#

73340BELT ASSY, REAR SEAT LAP TYPE, LH

main73330-22040-03iGX61,MX61..HT;GX60,LX60,RX6#,TX60;GX61,MX61..SED..SGT198009-198208

GRAY,GRAY,TRIM2#

main73330-22040-04iGX61,MX61..HT;GX60,LX60,RX6#,TX60;GX61,MX61..SED..SGT198009-198208

BLUE,BLUE,TRIM8#

main73330-22040-05iGX61,MX61..HT;GX60,LX60,RX6#,TX60;GX61,MX61..SED..SGT198009-198208

GREIGE,BEIGE,TRIM4#

main73330-22060-02iGX61,MX61..HT;LX6#,SX60..DLX,SXL,XG,XL;GX61,MX61..SED..(SGT,SXL)198208-198407

ROSE BEIGE,RED/MAROON,TRIM3#

main73330-22060-06iGX61,MX61..HT;LX6#,SX60..DLX,SXL,XG,XL;GX61,MX61..SED..(SGT,SXL)198208-198407

LIGHT BROWN,BROWN,TRIM4#

main73330-22060-14iLX6#,SX60;GX61,MX61..HT;GX61,MX61..SED..(SGT,SXL)198208-198407

BLUE,BLUE,TRIM8#

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-22090-03iGX61,MX61..SED..AVT198009-198208

GRAY,GRAY,TRIM2#

main73360-22090-04iGX61,MX61..SED..AVT198009-198208

BLUE,BLUE,TRIM8#

main73360-22090-05iGX61,MX61..SED..AVT198009-198208

GREIGE,BEIGE,TRIM4#

main73360-22130-02iGX61,MX61..SED..AVT198208-198407

ROSE BEIGE,RED/MAROON,TRIM3#

main73360-22130-06iGX61,MX61..SED..AVT198208-198407

LIGHT BROWN,BROWN,TRIM4#

main73360-22130-14iGX61,MX61..SED..AVT198208-198407

BLUE,BLUE,TRIM8#

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73370-22040-03iGX61,MX61..SED..AVT198009-198208

GRAY,GRAY,TRIM2#

main73370-22040-04iGX61,MX61..SED..AVT198009-198208

BLUE,BLUE,TRIM8#

main73370-22040-05iGX61,MX61..SED..AVT198009-198208

GREIGE,BEIGE,TRIM4#

main73370-22080-02iGX61,MX61..SED..AVT198208-198407

ROSE BEIGE,RED/MAROON,TRIM3#

main73370-22080-06iGX61,MX61..SED..AVT198208-198407

LIGHT BROWN,BROWN,TRIM4#

main73370-22080-14iGX61,MX61..SED..AVT198208-198407

BLUE,BLUE,TRIM8#

73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH

main73380-22080-03iGX61,MX61..SED..AVT198009-198208

GRAY,GRAY,TRIM2#

main73380-22080-04iGX61,MX61..SED..AVT198009-198208

BLUE,BLUE,TRIM8#

main73380-22080-05iGX61,MX61..SED..AVT198009-198208

GREIGE,BEIGE,TRIM4#

main73380-22081-02iGX61,MX61..SED..AVT198208-198407

ROSE BEIGE,RED/MAROON,TRIM3#

main73380-22081-04iGX61,MX61..SED..AVT198208-198407

BLUE,BLUE,TRIM8#

main73380-22081-06iGX61,MX61..SED..AVT198208-198407

LIGHT BROWN,BROWN,TRIM4#

73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH

main73380-22080-02iGX61,MX61..SED..AVT198208-198407

ROSE BEIGE,RED/MAROON,TRIM3#

main73380-22080-03iGX61,MX61..SED..AVT198009-198208

GRAY,GRAY,TRIM2#

main73380-22080-04iGX61,MX61..SED..AVT198009-198208

BLUE,BLUE,TRIM8#

main73380-22080-05iGX61,MX61..SED..AVT198009-198208

GREIGE,BEIGE,TRIM4#

main73380-22080-06iGX61,MX61..SED..AVT198208-198407

LIGHT BROWN,BROWN,TRIM4#

main73380-22080-14iGX61,MX61..SED..AVT198208-198407

BLUE,BLUE,TRIM8#

9010911005

main90109-11005

9020509001

main90205-09001

9020615002

main90206-15002

9038711009

main90387-11009

9056010015

main90560-10015

9165161020

main91651-61020

9165161022

main91651-61022

9451101100

main94511-01100

26 parts on this diagram · 1 diagram in section
