SEAT TRUCK

71305KNOB SUB-ASSY, FRONT SEAT ADJUSTING

main72457-14010-01iGX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL198009-198208

BLACK,BLACK,TRIM2#

main72457-14010-04iGX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL198009-198208

BLUE,BLUE,TRIM8#

main72457-14010-12iGX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main72457-14010-16iGX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL198009-198208

DARK BROWN,BROWN,TRIM4#

main72457-14010-34iGX61,LX6#,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

72031ADJUSTER ASSY, FRONT SEAT VERTICAL

main72310-22030iGX6#,LX60,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL198009-198109

main72310-22060iGX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL198109-198208

72031ASPRING, TENSION (FOR VERTICAL ADJUSTER)

main90506-18025iGX6#,LX60,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL198009-198109

main90506-22001iGX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL198109-198208

72110ESPRING, TENSION, NO.1 (FOR SEAT TRACK)

main90506-18008×2iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

main72110-22170iGX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL198009-198208

main72110-22230iLX60,TX60..DLX198009-198208

main72110-22280iGX61,LX6#,MX61,SX60198208-198407

72120STRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)

main72120-22210iGX6#,LX60,MX61,RX6#,TX60198009-198208

main72120-22280iGX61,LX6#,MX61,SX60198208-198407

72130TRACK ASSY, RH SEAT, INNER

main72130-22100iGX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL198009-198208

main72130-22120iLX60,TX60..DLX198009-198208

main72130-22150iGX61,LX6#,MX61,SX60198208-198407

72137COVER, SEAT TRACK, OUTER RH

main72137-22011-01iGX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL198009-198207

BLACK,BLACK,TRIM2#

main72137-22011-04iGX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL198009-198207

BLUE,BLUE,TRIM8#

main72137-22011-06iGX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL198009-198207

DARK BROWN,BROWN,TRIM4#

main72137-22012-01iGX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL198207-198208

BLACK,BLACK,TRIM2#

main72137-22012-04iGX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL198207-198208

BLUE,BLUE,TRIM8#

main72137-22012-06iGX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL198207-198208

DARK BROWN,BROWN,TRIM4#

main72137-22012-12iGX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main72137-22012-14iGX61,LX6#,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

main72137-22020-01iLX60,TX60..DLX198009-198207

BLACK,BLACK,TRIM2#

main72137-22020-04iLX60,TX60..DLX198009-198207

BLUE,BLUE,TRIM8#

main72137-22020-06iLX60,TX60..DLX198009-198207

DARK BROWN,BROWN,TRIM4#

main72137-22021-01iLX60,TX60..DLX198207-198208

BLACK,BLACK,TRIM2#

main72137-22021-04iLX60,TX60..DLX198207-198208

BLUE,BLUE,TRIM8#

main72137-22021-06iLX60,TX60..DLX198207-198208

DARK BROWN,BROWN,TRIM4#

72138COVER, SEAT TRACK, OUTER LH

main72138-22020-01iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLACK,BLACK,TRIM2#

main72138-22020-04iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLUE,BLUE,TRIM8#

main72138-22020-06iGX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL198009-198407

DARK BROWN,BROWN,TRIM4#

main72138-22020-12iGX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main72138-22020-14iGX61,LX6#,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

72140TRACK ASSY, LH SEAT, INNER

main72140-22090iGX6#,LX60,MX61,RX6#,TX60198009-198208

main72140-22140iGX61,LX6#,MX61,SX60198208-198407

72157COVER, SEAT TRACK BRACKET, INNER

main72157-22040-01×2iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLACK,BLACK,TRIM2#

main72157-22040-04×2iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLUE,BLUE,TRIM8#

main72157-22040-06×2iGX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL198009-198407

DARK BROWN,BROWN,TRIM4#

main72157-22040-12×2iGX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main72157-22040-14×2iGX61,LX6#,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

72301WIRE SUB-ASSY, SEAT TRACK EQUALIZING

main72301-22070iGX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL198009-198208

main72301-22090iGX61,LX6#,MX61,SX60198208-198407

72404LINK SUB-ASSY, VERTICAL SEAT

main72404-20011iGX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL198009-198208

72467PIN, VERTICAL ADJUSTER

main72467-20010×2iGX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL198009-198208

9011908270

main90119-08270

9011910185

main90119-10185

9017910178

main90179-10178

9020110180

main90201-10180

9052306019

main90523-06019

9161560820

main91615-60820

9324954006

main93249-54006

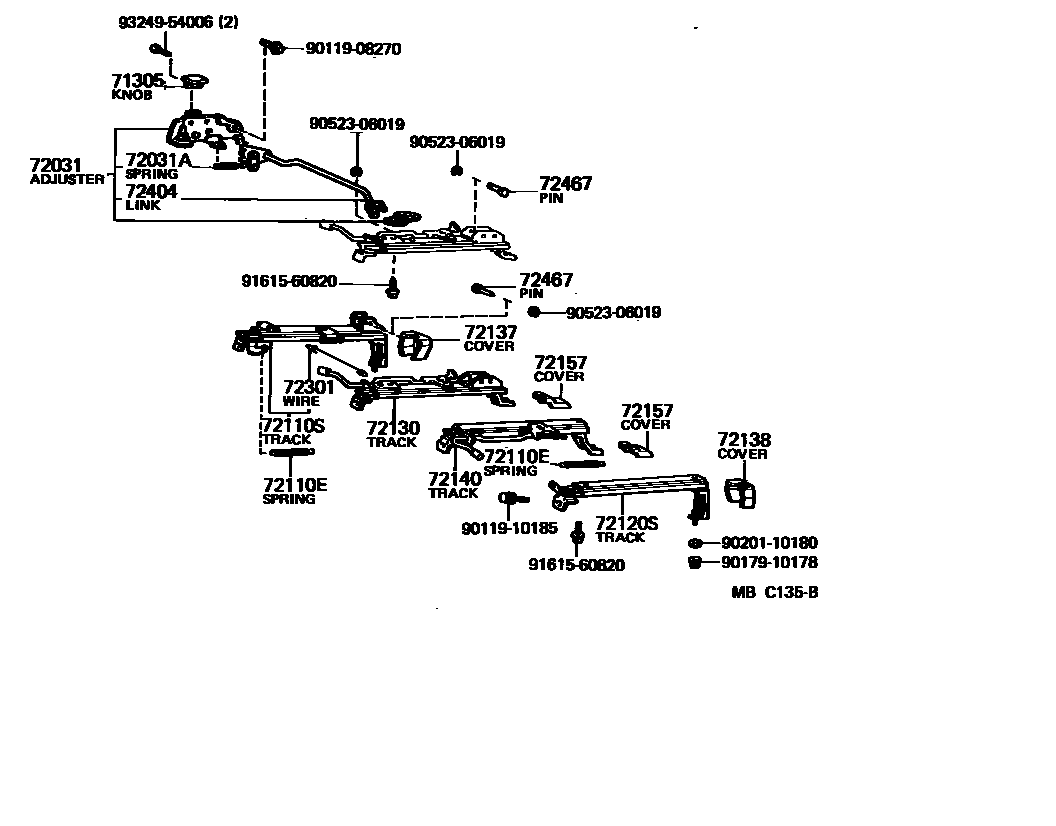

21 parts on this diagram · 1 diagram in section
