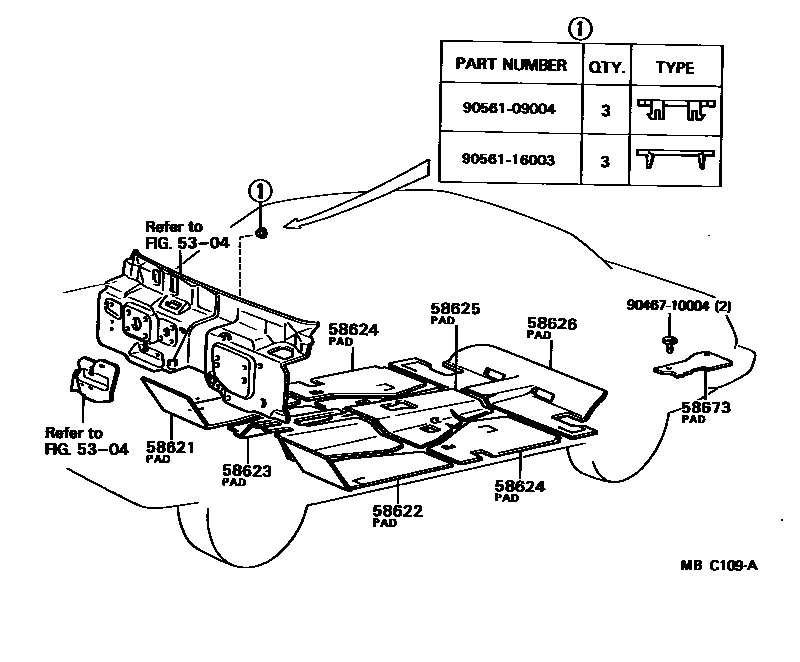

DASH SILENCER BOARD & FLOOR SILENCER PAD

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

58621PAD, FLOOR SILENCER, FRONT RH

main58621-22050iSX60..STD198208-198407

main58621-22070iLX60..DLX198208-198407

*30

58622PAD, FLOOR SILENCER, FRONT LH

main58621-22030iLX60..DLX198208-198407

*30

main58621-22050iSX60..STD198208-198407

58623PAD, FLOOR SILENCER, FRONT CENTER

main58623-22100iGX6#,MX61,RX6#,TX60198009-198208

main58623-22120iLX6#198009-198407

58624PAD, FLOOR SILENCER, REAR SIDE

main58634-22010×2iLX60..DLX; SX60..STD198208-198407

*30

58625PAD, FLOOR SILENCER, REAR CENTER

main58636-22040iLX60..DLX; SX60..STD198208-198407

*30

58626PAD, FLOOR SILENCER, REAR

main58624-22060iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

58673PAD, REAR FLOOR SILENCER, NO.1

main58676-22010iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

9046710004

main90467-10004

9056109004

main90561-09004

9056116003

main90561-16003

11 parts on this diagram · 1 diagram in section
