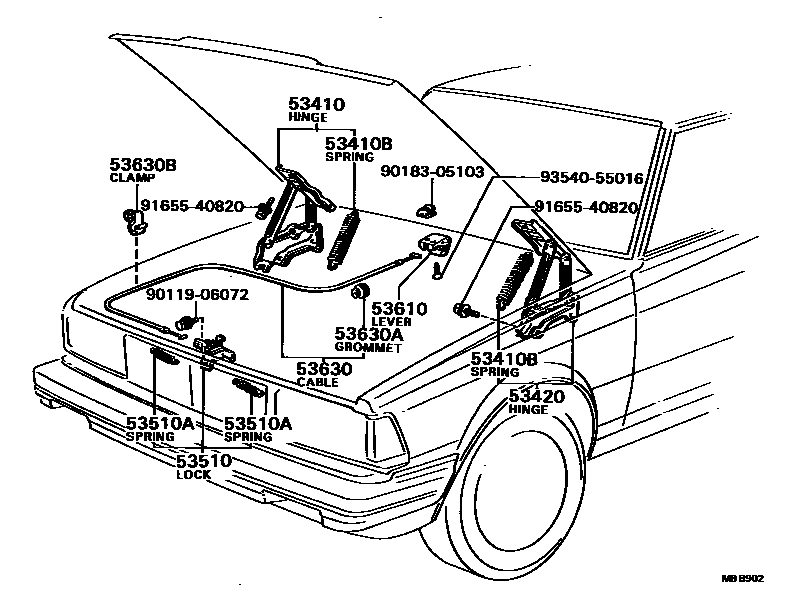

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-22040iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

53410BSPRING, TENSION(FOR HOOD HINGE)

main90506-58003×2iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

53420HINGE ASSY, HOOD, LH

main53420-22040iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

53510LOCK ASSY, HOOD

main53510-22110iGX6#,LX60,MX61,RX6#,TX60198009-198208

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09008iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

main90506-20008iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

53610LEVER ASSY, HOOD LOCK RELEASE

main53601-30030-01iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLACK,BLACK,TRIM2#

main53601-30030-04iGX6#,LX60,MX61,RX6#,TX60198009-198208

BLUE,BLUE,TRIM8#

main53601-30030-05iGX6#,MX61,RX6#,TX60..HT198009-198208

GREIGE,BEIGE,TRIM4#

main53601-30030-06iGX6#,LX60,MX61,RX6#,TX60..SED198009-198208

DARK BROWN,BROWN,TRIM4#

main53601-30030-14iGX61,LX6#,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

main53601-30030-22iGX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-22070iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

53630AGROMMET(FOR HOOD LOCK CONTROL CABLE)

main90480-15194iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main69749-12010iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

9011906072

main90119-06072

9018305103

main90183-05103

9165540820

main91655-40820

9354055016

main93540-55016

13 parts on this diagram · 1 diagram in section
