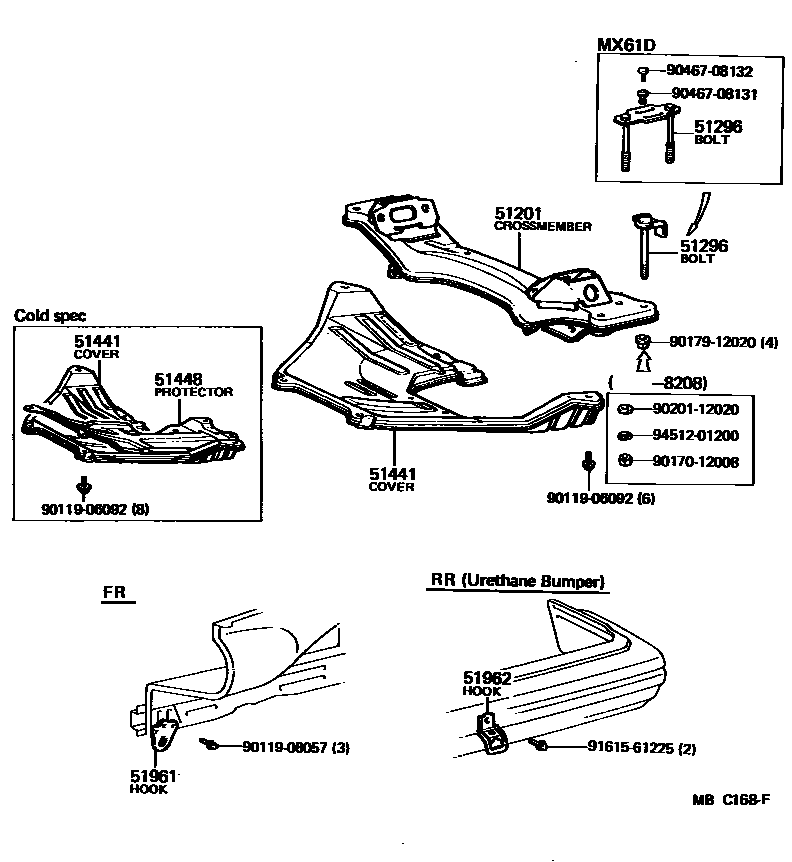

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-22140iGX6#,MX61198009-198208

main51201-22141iGX61,MX61198208-198407

main51201-22150iTX60198009-198208

main51201-22151iSX60..LPG198302-198407

*30

main51201-22160iRX6#198009-198208

main51201-22230iLX60198009-198208

main51201-22250iSX60198208-198407

main51201-22260iLX6#198208-198407

W/PS

main51201-22280iLX6#198208-198407

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main51229-22020×2iMX61198110-198407

main51296-22011×4iGX6#,LX6#,RX6#,SX60,TX60198009-198407

51441COVER, ENGINE UNDER, NO.1

main51441-22070iTX60198009-198208

main51441-22080iGX6#198009-198208

main51441-22090iLX6#,RX6#198009-198407

main51441-22120iMX61198110-198208

main51441-22121iGX61,MX61..TBO,TWC198208-198401

main51441-22122iGX61,MX61..TBO,TWC198401-198407

main51441-22130iSX60198208-198401

main51441-22131iSX60198401-198407

51448PROTECTOR, OIL PAN

main51447-22010iGX6#,MX61,SX60,TX60198009-198407

COLD SPEC

51961HOOK, NO.1

main51963-22030×2iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

51962HOOK, NO.2

main51095-22020×2iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

W/URETHANE BUMPER

9011906092

main90119-06092

9011908057

main90119-08057

9017012008

main90170-12008

9017912020

main90179-12020

9020112020

main90201-12020

9046708131

main90467-08131

9046708132

main90467-08132

9161561225

main91615-61225

9451201200

main94512-01200

15 parts on this diagram · 2 diagrams in section
